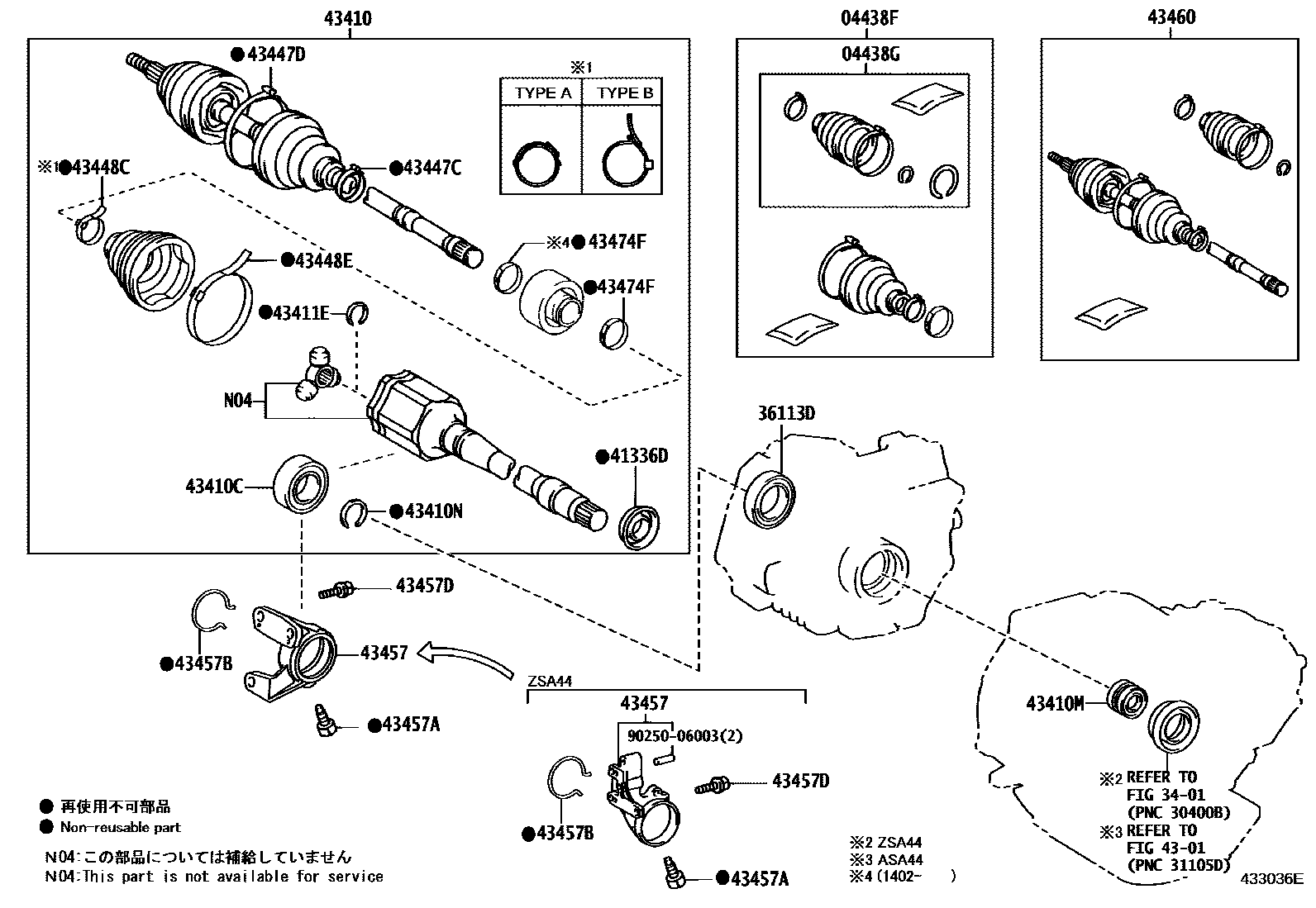

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0R051iZSA42..6F201308-201607

main04427-0R060iZSA42..CVT201308-201607

main04427-0R080iZSA44201308-201402

sub04427-0R081

main04427-0R081iZSA44201402-201607

sub04427-0R082

main04427-0R120iASA44201308-201402

sub04427-0R121

main04427-0R121iASA44201402-201407

sub04427-0R122

main04427-0R122iASA44201407-201806

sub04427-0R123

main04427-0R123iASA4#201806

main04427-0R130iZSA42201607

main04427-0R140iZSA44201607

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0R050iZSA42201308-201607

main04437-0R060iASA44,ZSA44201308-201806

sub04437-0R110

main04437-0R080iZSA42201607

main04437-0R090iZSA44201607

main04437-0R110iASA4#201806

3401

36113DSEAL, OIL (FOR TRANSFER CASE RH)

main90311-35056iASA4#,ZSA44201308-201607

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0R090iASA4#,ZSA44201910

(L)

main41336-12020iZSA42201308-201607

main41336-52020iASA44,ZSA44201308-201910

main41336-52020iASA4#,ZSA44201910

(J)

4301

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0R110iZSA42..CVT201308-201607

main43410-0R120iZSA42..6F201308-201607

main43410-0R130iZSA44201308-201607

main43410-0R140iASA44201308-201607

main43410-0R160iZSA42201607

main43410-0R170iZSA44201607

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-C0015iASA44,ZSA44201308-201607

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40036iZSA42..6F201308-201607

main90311-40041iZSA42201308-201911

main90316-28003iZSA44201308-201607

main90316-34001iASA4#,ZSA44201308-201911

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iASA44,ZSA44201308-201504

main90520-33008iASA4#,ZSA44201504-201607

(J)

main90520-38015iZSA42201504-201607

(J)

main90520-38015iZSA42201308-201504

main90520-C0031iASA4#,ZSA44201504-201607

(L)

main90520-C0032iZSA42201504-201607

(L)

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iASA44,ZSA4#201509-201607

(J)

main43425-28010iASA44,ZSA4#201308-201509

main90520-C0030iASA44,ZSA4#201509-201607

(L)

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iZSA4#..CVT201308-201607

main42345-42120iASA44,ZSA42..6F,6FC201308-201607

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iZSA4#..CVT201308-201607

main42345-42110iASA44,ZSA42..6F,6FC201308-201607

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010iASA4#,ZSA4#201308-201607

TYPE A:REFER ILLUST.

main90949-01559iASA44,ZSA4#201308-201607

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iASA44,ZSA4#201308-201607

43457BRACKET, DRIVE SHAFT BEARING

main43457-0R060iZSA42..CVT201308-201607

main43457-0R070iZSA42..6F201308-201607

main43457-0R080iZSA44201308-201607

main43457-0R090iASA44201308-201607

main43457-0R100iZSA44201607

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-C0124iZSA42201308-201607

*10-1.25PX22-19.5

main90119-10461iASA4#,ZSA44201308-201607

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iASA44,ZSA44201308-201607

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-C0014iASA44,ZSA4#201308-201607

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-09X50iASA44201308-201402

sub43470-09X51

main43470-09X51iASA44201402-201806

sub43470-09X52

main43470-09X52iASA4#201806

main43470-8Z120iZSA42..CVT201308-201607

main43470-8Z130iZSA42..6F201308-201607

main43470-8Z141iZSA44201308-201402

sub43470-8Z142

main43470-8Z142iZSA44201402-201607

sub43470-8Z313

main43470-8Z274iZSA42201607

main43470-8Z275iZSA44201607

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06420iASA44,ZSA44201308-201607

9025006003

main90250-06003

22 parts on this diagram · 3 diagrams in section
