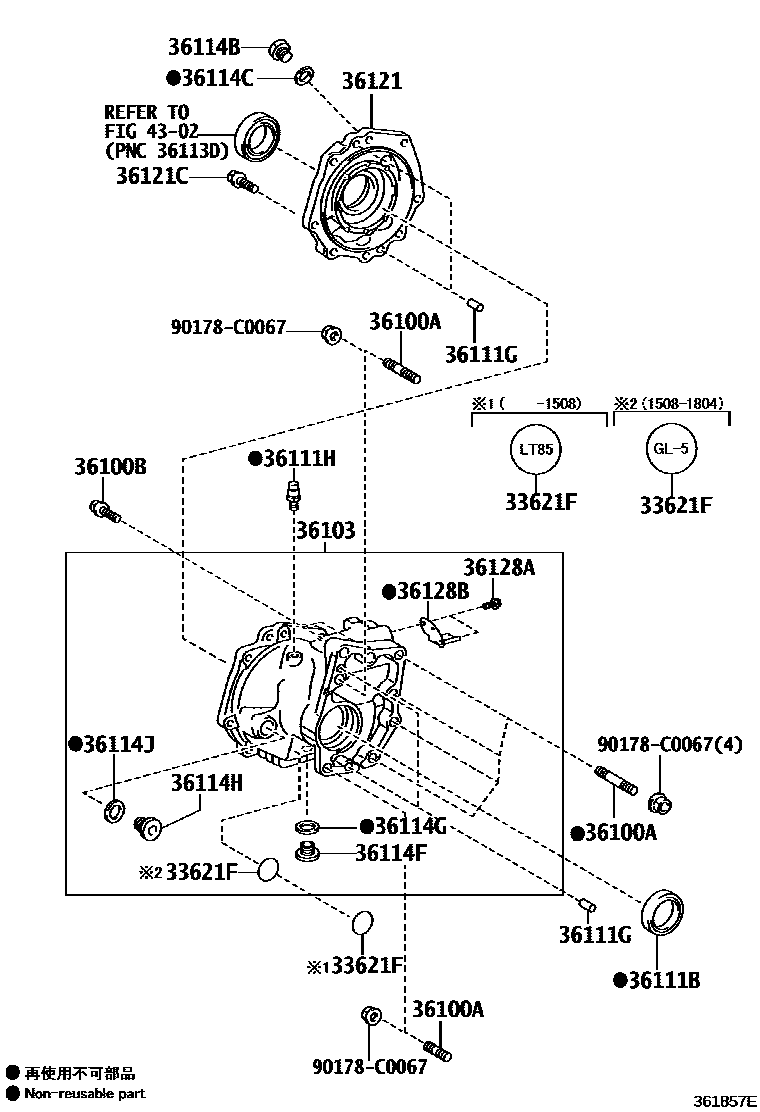

TRANSFER CASE & EXTENSION HOUSING
33621FLABEL, TRANSAXLE OIL INFORMATION
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=19 & 19,L=47,(L)
S=22 & 22,L=69
S=19 & 19,L=47,(J)
S=30 & 22,L=64
36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)
*12-1.25PX53-35
*12-1.25PX53-35
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36121COVER, TRANSFER CASE, NO.1
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
36128ABOLT (FOR BREATHER OIL DEFLECTOR)
4302
90178C0067
main90178-C0067
19 parts on this diagram · 2 diagrams in section
