TRANSFER ASSEMBLY & GASKET KIT

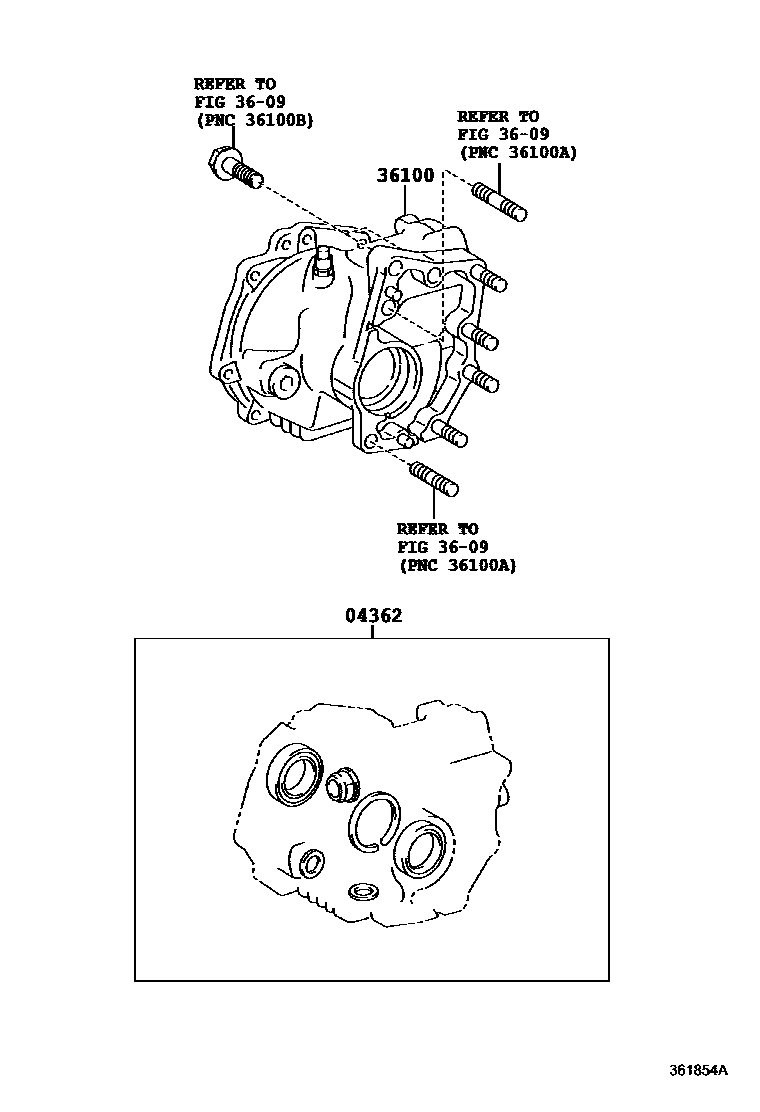

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-12060i201308-201607

main04362-42020i201308-201607

3609

36100TRANSFER ASSY

main36100-42120i201308-201508

main36100-42130i201308-201508

main36100-42140i201508-201606

main36100-42141i201606-201607

main36100-42150i201508-201607

3 parts on this diagram · 1 diagram in section
