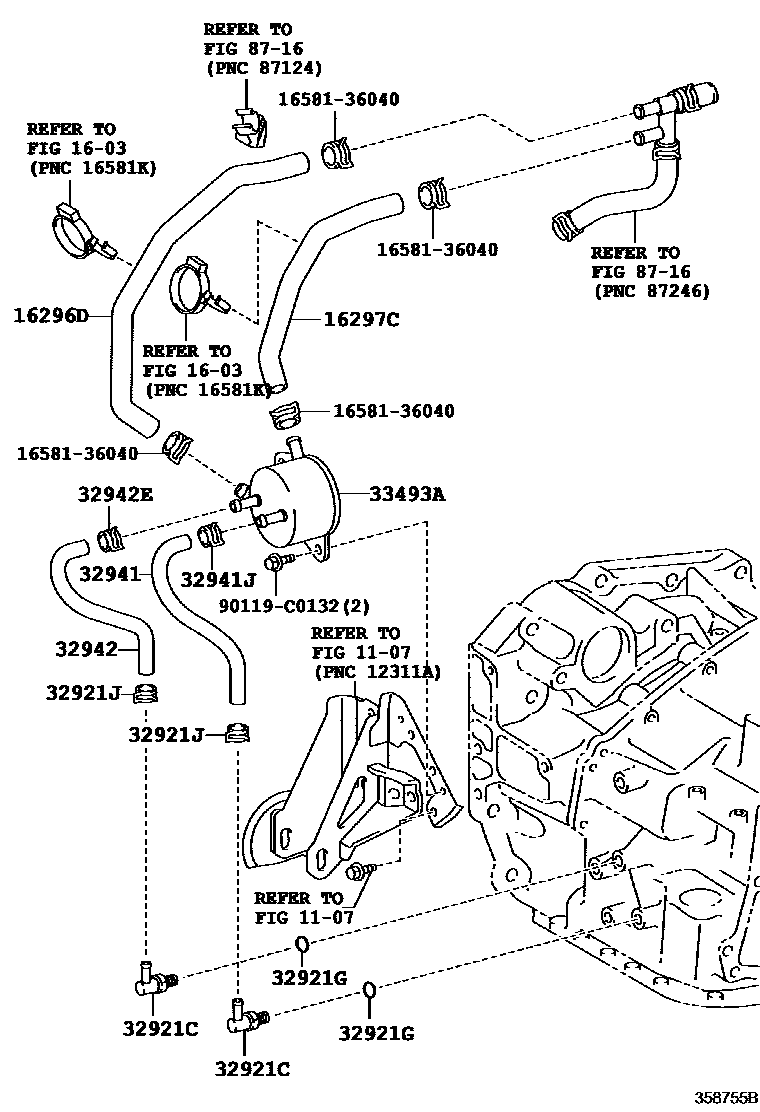

OIL COOLER & TUBE (ATM)

0001 1U760F 0002 1U761F

1107

1603

16296DHOSE, WATER BY-PASS, NO.8

main16296-0V010i5ARFE..ASA44201308-201607

16297CHOSE, WATER BY-PASS, NO.9

main16297-0V010i5ARFE..ASA44201308-201607

32921CUNION(FOR OIL COOLER TUBE)

main90407-14032×2iASA44201308-201607

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031×2iASA44201308-201607

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004×2iASA44201308-201607

32941HOSE, OIL COOLER INLET, NO.1

main32942-0R020iASA44201308-201607

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iASA44201308-201412

main90466-C0024iASA44201412-201607

(L)

32942HOSE, OIL COOLER OUTLET, NO.1

main32941-0R020iASA44201308-201607

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iASA44201308-201412

main90466-C0024iASA44201412-201607

(L)

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-42100iASA44201308-201607

8716

1658136040CLAMP, HOSE(FOR WATER HOSE)

main16581-36040

90119C0132

main90119-C0132

15 parts on this diagram · 2 diagrams in section
