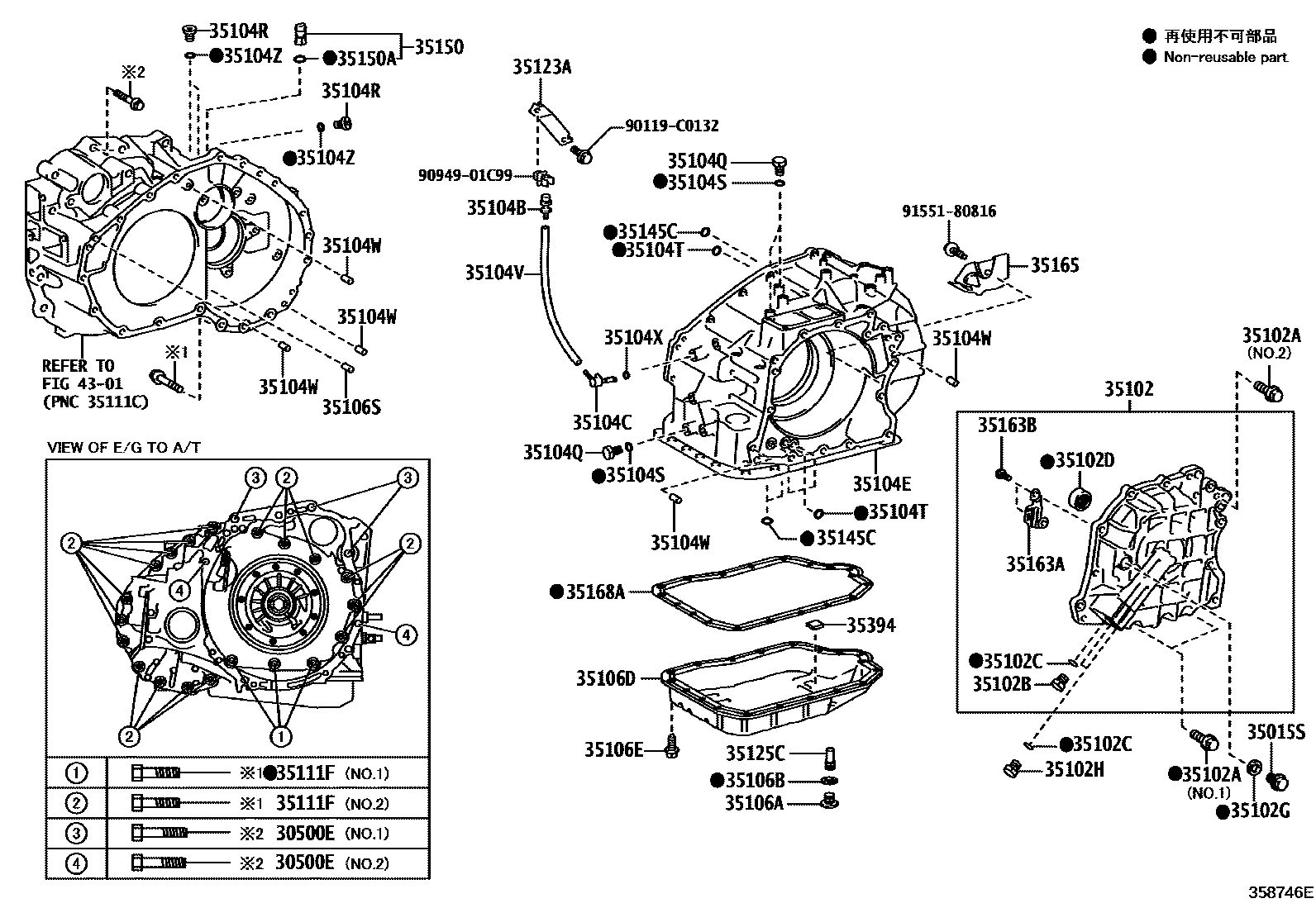

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U760F 0002 1U761F

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-C0031×2iASA44201308-201607

*10-1.25PX50-30,NO.2

main90119-12168×3iASA4#201607

*12-1.25PX55-30,(J),NO.1

main90119-C0040×3iASA44201308-201607

*12-1.25PX55-30,NO.1

main91512-61050×2iASA4#201607

*10-1.25PX50-30,(J),NO.2

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iASA44201308-201607

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-33110iASA44201601-201607

main35102-33120iASA4#201607

main35102-42041iASA44201308-201512

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2iASA44201308-201607

*8-1.25PX28-22,NO.1

main91551-00828×12iASA44201308-201607

*8-1.25PX28-22,NO.2

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001iASA44201308-201607

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×3iASA44201308-201607

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010iASA44201308-201607

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iASA44201308-201607

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2iASA4#201607

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iASA44201308-201607

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187iASA44201308-201607

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35141-33180iASA4#201607

main35141-73010iASA44201308-201405

sub90369-72002

sub90520-99154

main35141-73011iASA44201405-201607

sub35141-33141

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iASA4#201607

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3iASA44201308-201607

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3iASA44201308-201607

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4iASA44201308-201607

35104VHOSE (FOR BREATHER PLUG)

main35121-33051iASA4#201607

main35121-73010iASA44201308-201312

main35121-73011iASA44201312-201607

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5iASA4#201607

35104XRING, O (FOR BREATHER PLUG)

main90301-06021iASA4#201607

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iASA44201308-201607

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iASA44201308-201607

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iASA44201308-201607

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-73010iASA44201308-201607

main35106-73021iASA4#201607

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×19iASA44201308-201607

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007iASA44201308-201607

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3iASA44201308-201607

*8-1.25PX45-22,NO.1

main91551-10845×17iASA4#201607

*8-1.25PX45-22,NO.2

35123ASKIRT, TRANSMISSION BREATHER

main35123-0R020iASA44201511-201607

(L)

main35123-21010iASA4#201607

(J)

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-33100iASA4#201607

main35125-73010iASA44201308-201607

35145CGASKET, TRANSAXLE CASE

main35145-33010×3iASA44201308-201607

35150PLUG ASSY, TRANSMISSION CASE

main35150-44010iASA44201308-201607

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09173iASA44201308-201607

35163APLATE, TRANSAXLE REAR COVER

main35163-33010iASA44201308-201607

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2iASA4#201607

35165PLATE, TRANSMISSION CASE, NO.1

main35165-73010iASA44201308-201607

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-73010iASA44201308-201607

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iASA44201308-201402

4301

90119C0132

main90119-C0132

9094901C99

main90949-01C99

9155180816

main91551-80816

40 parts on this diagram · 2 diagrams in section
