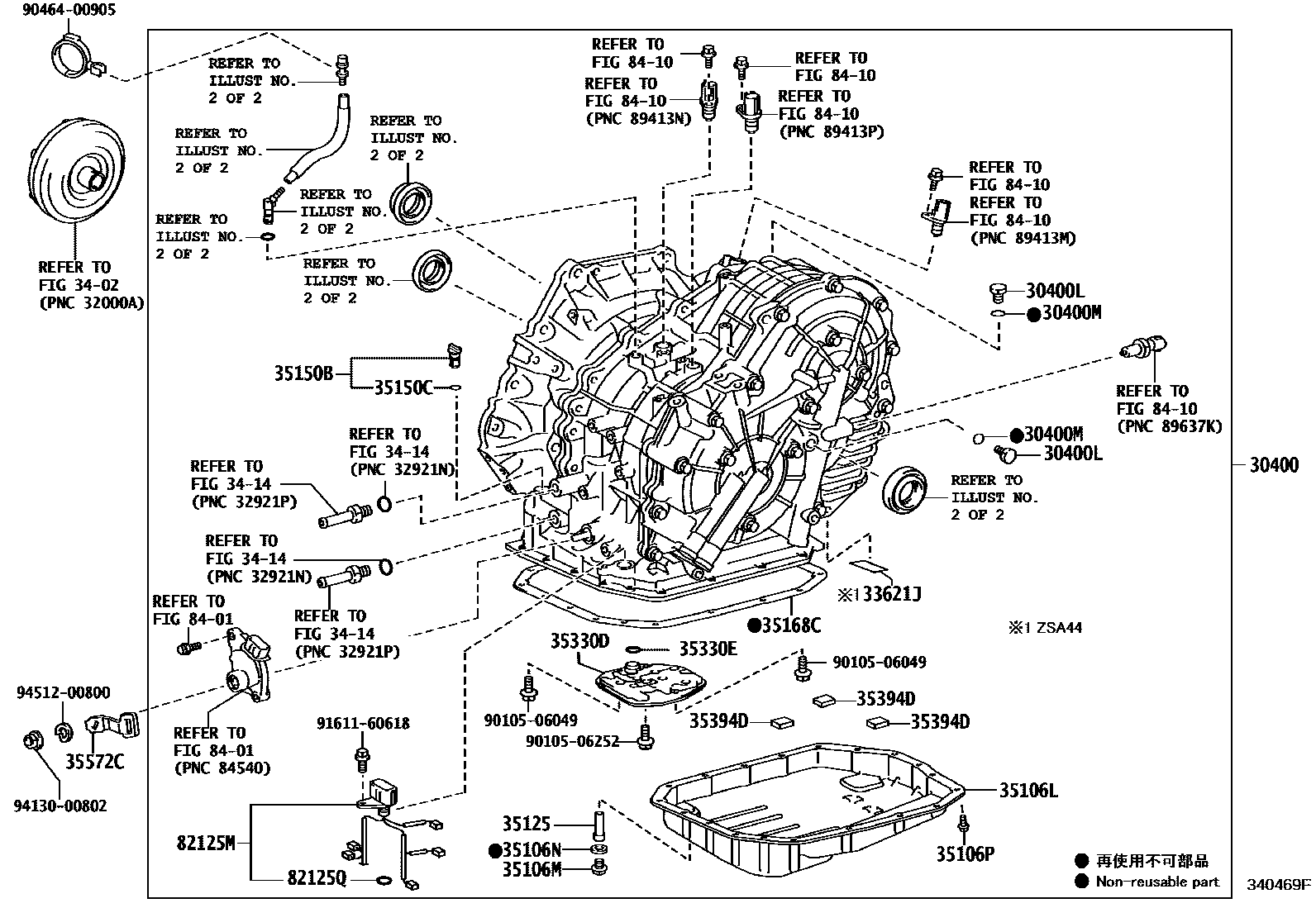

TRANSAXLE ASSY(CVT)

Parts diagram

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-42060i201308-201607

K111

main30400-42070i201308-201607

K111F

main30400-48021i201607-201911

K114F

main30400-78011i201607-201911

K114

30400LPLUG , FILLER(CVT)

main90341-12025i201607

main90341-18077×2i201308-201607

30400MGASKET, FILLER PLUG(CVT)

main90430-12221i201607

main90430-18008×2i201308-201607

33621JLABEL, TRANSAXLE OIL INFORMATION

main33621-28021i201308-201607

3402

3414

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-20031i201308-201508

main35106-20032i201508-201607

main35106-28100i201607-201911

35106MPLUG SUB-ASSY, DRAIN(CVT)

main90341-12034i201308-201607

main90341-18016i201607-201911

35106NGASKET, DRAIN PLUG(CVT)

main90430-01001i201607-201911

main90430-12008i201308-201607

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173×19i201308-201607

35125TUBE, TRANSMISSION OIL FILLER, NO.1

main35125-44070i201308-201504

main35125-44071i201505-201607

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010i201308-201607

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173i201308-201607

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-20010i201308-201607

main35168-28020i201607-201911

35330DSTRAINER ASSY, OIL

main35330-0W090i201308-201607

main35330-28020i201607-201911

35330ERING, O (FOR OIL STRAINER)

main90301-24013i201308-201607

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011×3i201308-201607

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-28130i201607-201911

main35572-42030i201308-201607

82125MWIRE, TRANSMISSION

main82125-44020i201308-201607

main82125-48030i201607-201807

main82125-48031i201808-201911

82125QRING, O(FOR TRANSMISSION WIRE)

main90301-21009i201308-201607

8401

8410

9010506049

main90105-06049

9010506252

main90105-06252

9046400905

main90464-00905

9161160618

main91611-60618

9413000802

main94130-00802

9451200800

main94512-00800

28 parts on this diagram · 6 diagrams in section
