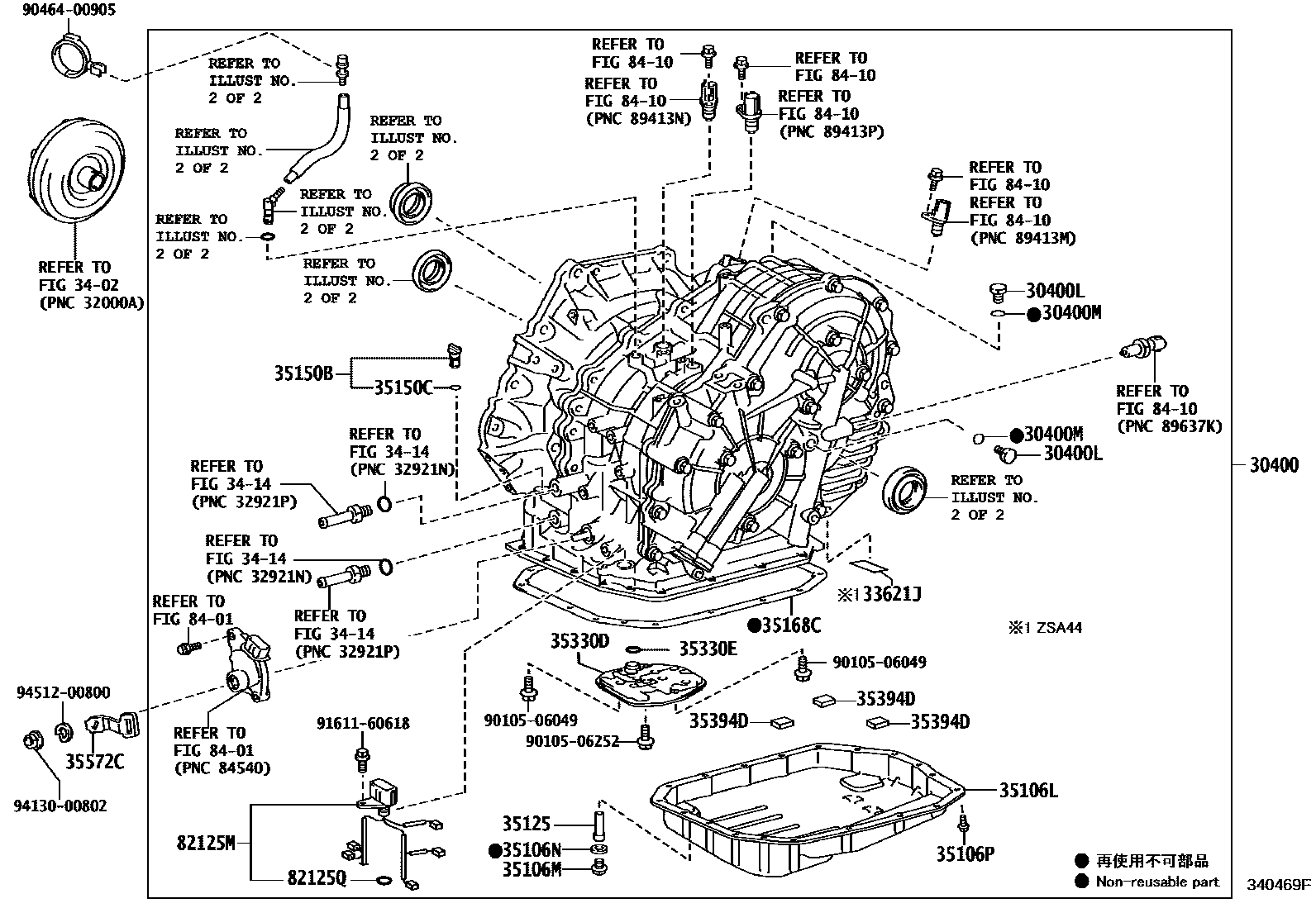

Toyota 660310 — TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400LPLUG , FILLER(CVT)
30400MGASKET, FILLER PLUG(CVT)
33621JLABEL, TRANSAXLE OIL INFORMATION
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
3414OIL COOLER & TUBE(CVT)
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106MPLUG SUB-ASSY, DRAIN(CVT)
35106NGASKET, DRAIN PLUG(CVT)
35106PBOLT(FOR TRANSAXLE OIL PAN)
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35330DSTRAINER ASSY, OIL
35330ERING, O (FOR OIL STRAINER)
35394DMAGNET, OIL CLEANER(CVT)
35572CLEVER, TRANSMISSION CONTROL SHAFT
82125MWIRE, TRANSMISSION
82125QRING, O(FOR TRANSMISSION WIRE)
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9010506049
9010506252
9046400905
9161160618
9413000802
9451200800
28 parts on this diagram · 6 diagrams in section
TRANSAXLE ASSY(CVT) for Toyota 660310
This section contains 96 genuine Toyota parts for the TRANSAXLE ASSY(CVT) system of the Toyota 660310. Key components include: TRANSAXLE ASSY, CONTINUOUSLY VARIABLE, BOLT(FOR TRANSAXLE & ENGINE SETTING), SEAL, TYPE T OIL, NO.1(FOR CVT), SEAL, TYPE T OIL(FOR CVT OIL PUMP), PLUG , FILLER(CVT).
