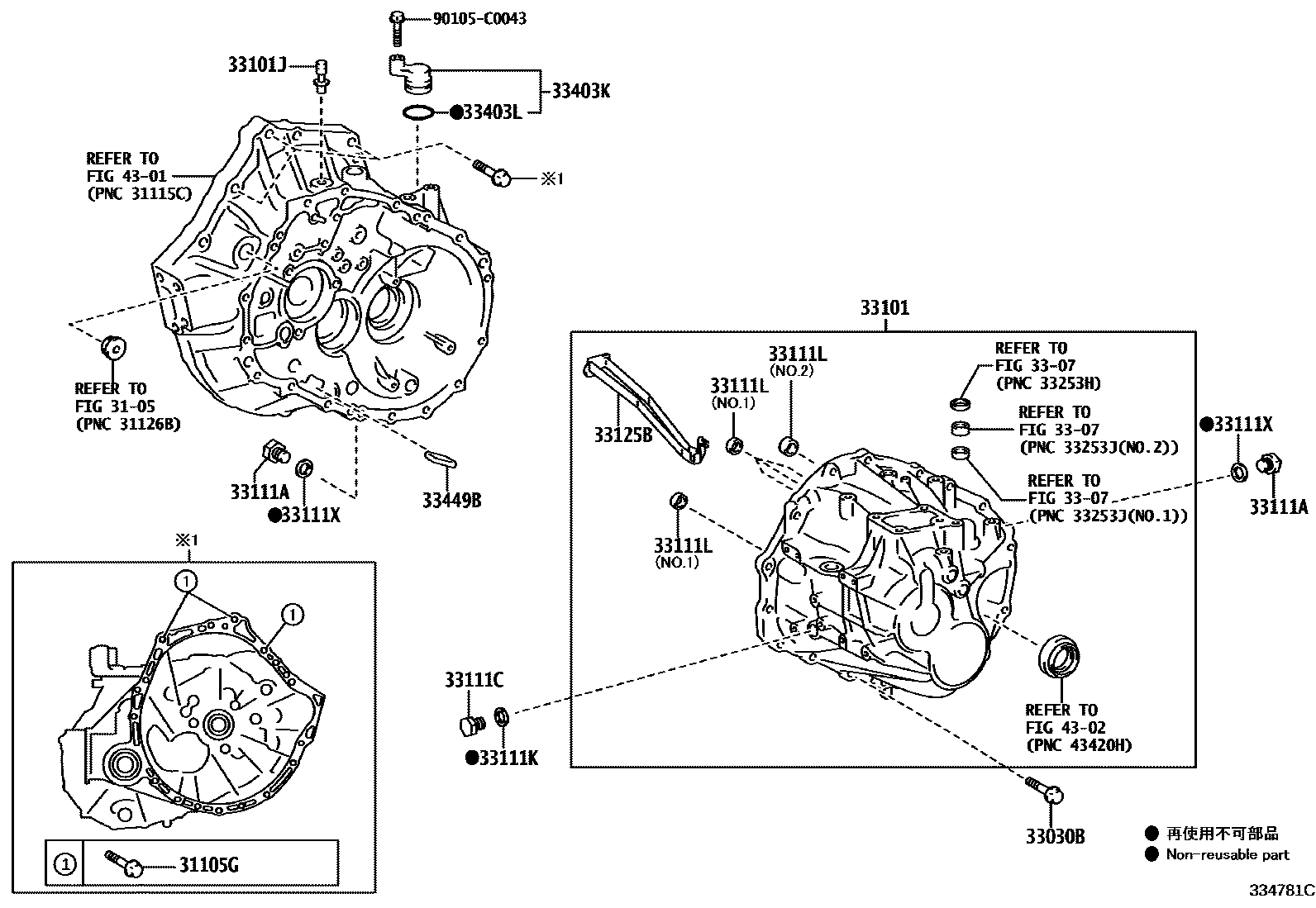

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

3105

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-C0227×3iZSA42..6F201308-201607

*10-1.25PX45-30,NO.2:REFER ILLUST.

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main91551-10840×17iZSA42..6F201308-201607

*8-1.25PX40-22

3307

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-20100iZSA42..6F201308-201507

main33101-42050iZSA42..6F201507-201607

33101JPLUG, BREATHER

main90930-03085iZSA42..6F201308-201607

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006×2iZSA42..6F201308-201607

33111CPLUG(FOR TRANSMISSION CASE)

main90341-18033iZSA42..6F201308-201607

OD=24

33111KGASKET(FOR TRANSMISSION CASE)

main12157-10010iZSA42..6F201308-201607

33111LBUSH, BIMETAL FORMED(FOR TRANSMISSION CASE)

main90384-14008×4iZSA42..6F201308-201607

NO.1:REFER ILLUST.

main90384-16005iZSA42..6F201308-201607

NO.2:REFER ILLUST.

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010×2iZSA42..6F201308-201607

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-20020iZSA42..6F201308-201607

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-06010iZSA42..6F201308-201607

33403LRING, O

main96711-24018iZSA42..6F201308-201607

33449BMAGNET, TRANSMISSION

main33449-60010iZSA42..6F201308-201607

4301

4302

90105C0043

main90105-C0043

18 parts on this diagram · 1 diagram in section
