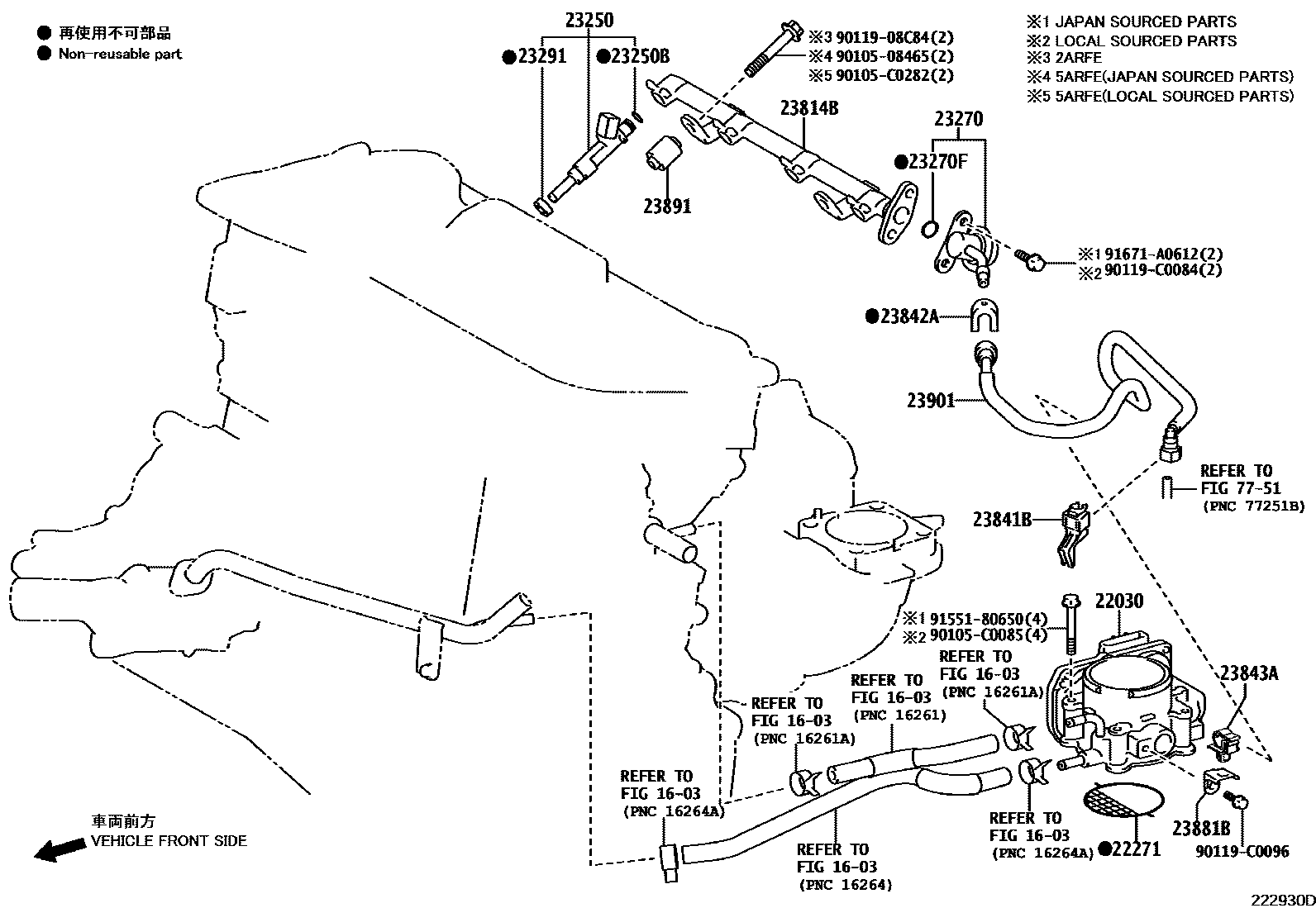

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23291INSULATOR, INJECTOR VIBRATION
(L)
(J)
23814BPIPE, FUEL DELIVERY
(L)
(J)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)
23881BBRACKET, FUEL HOSE
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
7751FUEL TANK & TUBE
9010508465
main90105-08465
90105C0085
main90105-C0085
90105C0282
main90105-C0282
9011908C84
main90119-08C84
90119C0084
main90119-C0084
90119C0096
main90119-C0096
9155180650
main91551-80650
91671A0612
main91671-A0612
24 parts on this diagram · 3 diagrams in section
