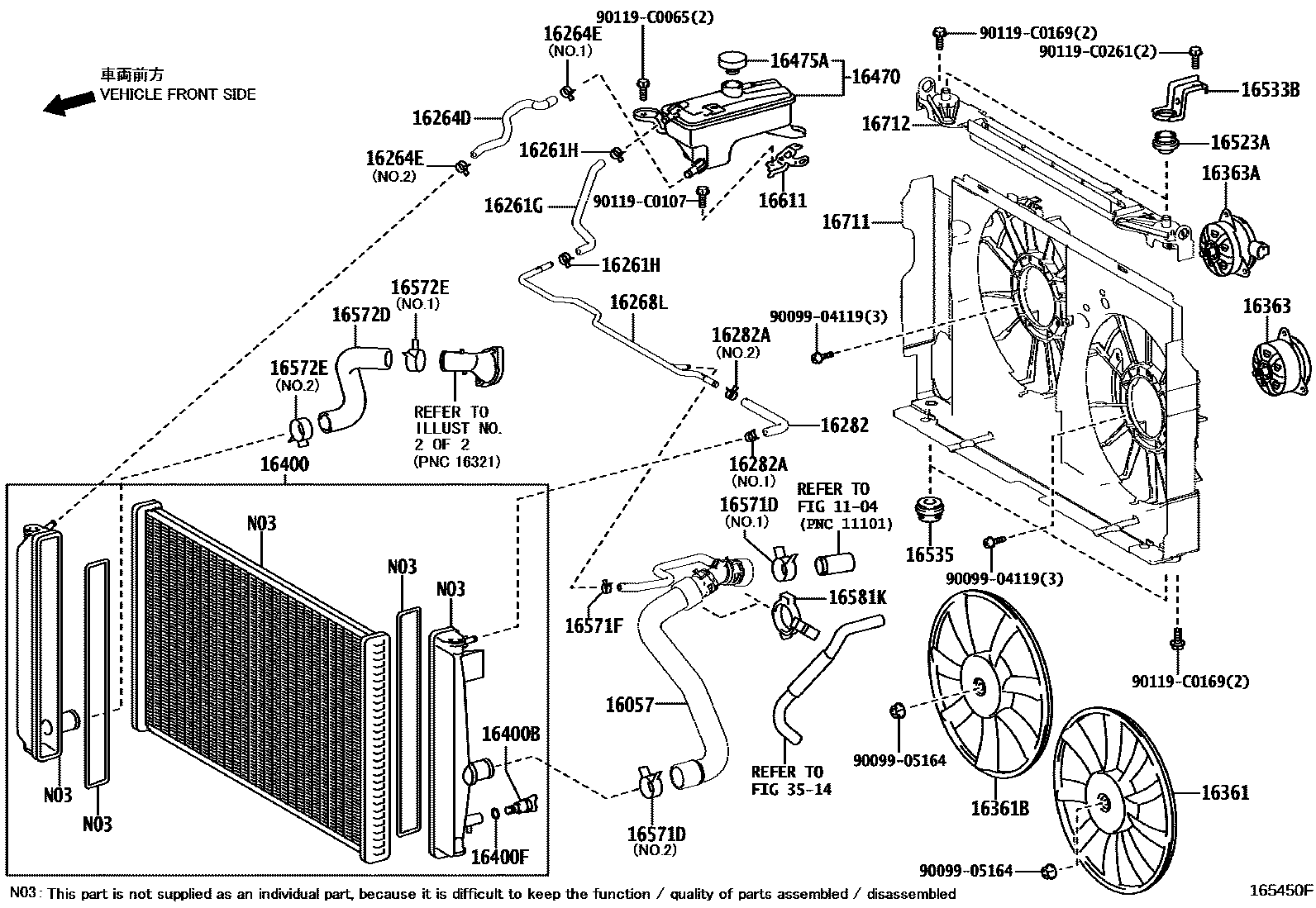

RADIATOR & WATER OUTLET
1104
16057HOSE SUB-ASSY, RADIATOR
16261HOSE, WATER BY-PASS
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
NO.1
16264HOSE, WATER BY-PASS, NO.2
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
NO.1
NO.2
16268PIPE, WATER BY-PASS, NO.1
NO.2
NO.1
16268LPIPE, WATER BY-PASS
16282HOSE, WATER BY-PASS, NO.5
(L),NO.2
NO.1
NO.2
NO.1
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
NO.2:REFER ILLUST.
NO.2
NO.3
(J),NO.2
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
sub16363-36200
16363AMOTOR, COOLING FAN, NO.2
sub16363-0T260
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16475ACAP, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16533BSUPPORT, RADIATOR, NO.1
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571DCLIP, RADIATOR HOSE, NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16571FCLAMP OR CLIP(FOR WATER HOSE)
16572HOSE, RADIATOR, OUTLET
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16581CLAMP, HOSE(FOR WATER HOSE)
NO.2
NO.1
NO.2
NO.1
16581KCLAMP, SUB-RADIATOR HOSE, NO.1
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
3514
9009904119
main90099-04119
9009905164
main90099-05164
90119C0065
main90119-C0065
90119C0107
main90119-C0107
90119C0169
main90119-C0169
90119C0261
main90119-C0261
43 parts on this diagram · 7 diagrams in section
