Toyota 660310 — CAMSHAFT & VALVE

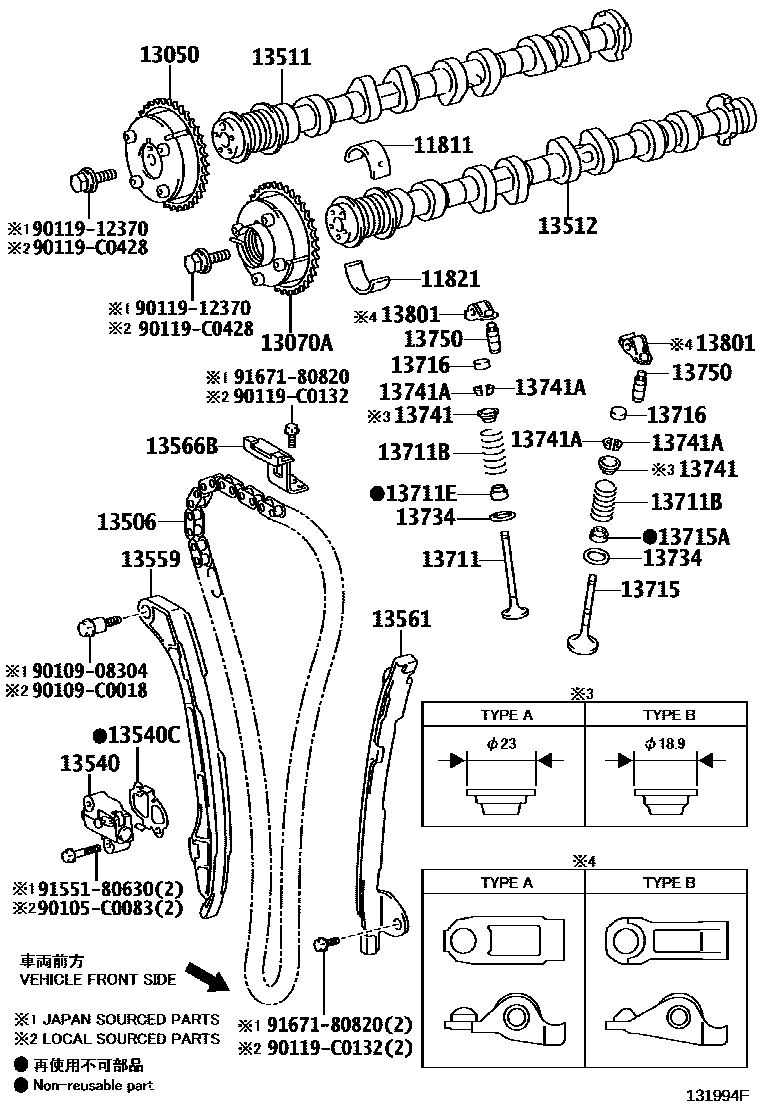

Parts diagram

11811BEARING, CAMSHAFT, NO.1

11821BEARING, CAMSHAFT, NO.2

13050GEAR ASSY, CAMSHAFT TIMING

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

13506CHAIN SUB-ASSY

13511CAMSHAFT

13512CAMSHAFT, NO.2

13540TENSIONER ASSY, CHAIN, NO.1

13540CGASKET(FOR CHAIN TENSIONER)

13559SLIPPER, CHAIN TENSIONER

13561DAMPER, CHAIN VIBRATION, NO.1

13566BGUIDE, TIMING CHAIN

13711VALVE, INTAKE

13711BSPRING, COMPRESSION(FOR INNER)

13711ESEAL, INTAKE VALVE STEM OIL

13715VALVE, EXHAUST

13715ASEAL, EXHAUST VALVE STEM OIL

13716CAP, VALVE STEM

13734SEAT, VALVE SPRING

13741RETAINER, VALVE SPRING

13741ALOCK, VALVE SPRING RETAINER

13750ADJUSTER ASSY, VALVE LASH

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

90105C0083

9010908304

90109C0018

9011912370

90119C0132

90119C0428

9155180630

9167180820

31 parts on this diagram · 3 diagrams in section

CAMSHAFT & VALVE for Toyota 660310

This section contains 46 genuine Toyota parts for the CAMSHAFT & VALVE system of the Toyota 660310. Key components include: CYLINDER HEAD, BEARING, CAMSHAFT, NO.1, BEARING, CAMSHAFT, NO.2, GEAR ASSY, CAMSHAFT TIMING, GEAR ASSY, CAMSHAFT TIMING EXHAUST.
