CRANKSHAFT & PISTON

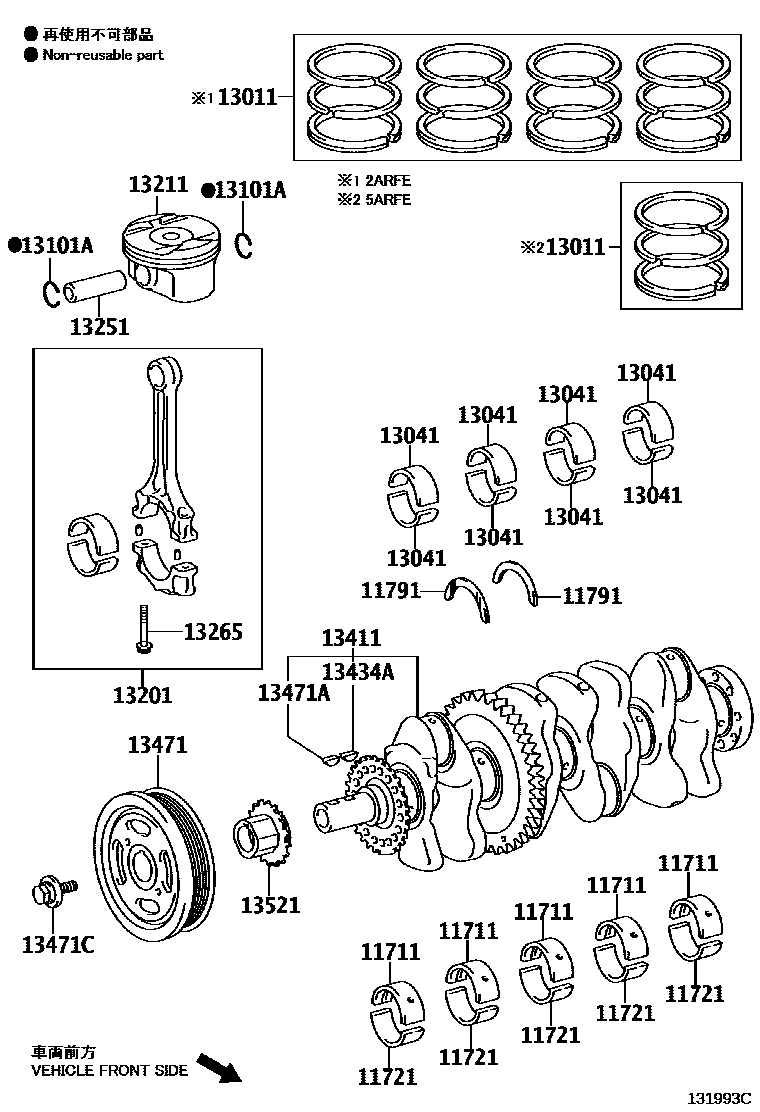

Parts diagram
11711BEARING, CRANKSHAFT
main11701-0T031-01×5i201308-201607
MARK1
main11701-0T031-02×5i201308-201607
MARK2
main11701-0T031-03×5i201308-201607
MARK3
main11701-0T031-04×5i201308-201607
MARK4
main11701-0T070-01×5i201805
MARK1
main11701-0T070-02×5i201805
MARK2
main11701-0T070-03×5i201805
MARK3
main11701-0T070-04×5i201805
MARK4
main11701-37040-01×5i201607-201805
MARK1
main11701-37040-02×5i201607-201805
MARK2
main11701-37040-03×5i201607-201805
MARK3
main11701-37040-04×5i201607-201805
MARK4
main11711-0V040-01×5i201308-201607
MARK 1,REFER REPAIR MANUAL
main11711-0V040-02×5i201308-201607
MARK 2,REFER REPAIR MANUAL
main11711-0V040-03×5i201308-201607
MARK 3,REFER REPAIR MANUAL
main11711-0V040-04×5i201308-201607
MARK 4,REFER REPAIR MANUAL
main11711-0V050-01×5i201711
MARK 1,(L),REFER R/M
main11711-0V050-02×5i201711
MARK 2,(L),REFER R/M
main11711-0V050-03×5i201711
MARK 3,(L),REFER R/M
main11711-0V050-04×5i201711
MARK 4,(L),REFER R/M
main11711-36040-01×5i201607-201711
MARK 1,REFER REPAIR MANUAL
main11711-36040-02×5i201711
MARK 2,(J),REFER R/M
main11711-36040-03×5i201607-201711
MARK 3,REFER REPAIR MANUAL
main11711-36040-04×5i201711
MARK 4,(J),REFER R/M
11721BEARING, CRANKSHAFT, NO.2
main11721-0V040-01×5i201308-201607
MARK 1,REFER REPAIR MANUAL
main11721-0V040-02×5i201308-201607
MARK 2,REFER REPAIR MANUAL
main11721-0V040-03×5i201308-201607
MARK 3,REFER REPAIR MANUAL
main11721-0V040-04×5i201308-201607
MARK 4,REFER REPAIR MANUAL
main11721-0V050-01×5i201711
MARK 1,(L),REFER R/M
main11721-0V050-02×5i201711
MARK 2,(L),REFER R/M
main11721-0V050-03×5i201711
MARK 3,(L),REFER R/M
main11721-0V050-04×5i201711
MARK 4,(L),REFER R/M
main11721-36040-01×5i201607
MARK 1,REFER REPAIR MANUAL
main11721-36040-02×5i201607-201711
MARK 2,REFER REPAIR MANUAL
main11721-36040-03×5i201607
MARK 3,REFER REPAIR MANUAL
main11721-36040-04×5i201607
MARK 4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-0T020×2i201308-201607
STD
main11791-0V020×2i201308-201607
STD
main11791-0V030×2i201711
STD,(L)
main11791-36010×2i201901
STD
main11791-36020×2i201607-201711
STD
main11791-37010×2i201607
STD
13011RING SET, PISTON
main13011-0T050×4i201308-201505
STD
main13011-0T140×4i201607
STD
main13011-0V020×4i201308-201411
STD
sub13011-36030
main13011-0V070×4i201411-201607
STD
main13011-36170i201901
STD
main13011-0T160×4i201809
STD,EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
13041BEARING, CONNECTING ROD
main13041-0T040-01×4i201308-201607
MARK1
main13041-0T040-02×4i201308-201607
MARK2
main13041-0T040-03×4i201607
MARK3
main13281-0V020-01×8i201308-201604
MARK 1,REFER REPAIR MANUAL
main13281-0V020-02×8i201308-201604
MARK 2,REFER REPAIR MANUAL
main13281-0V020-03×8i201308-201604
MARK 3,REFER REPAIR MANUAL
main13281-0V021-01×8i201607
MARK 1,REFER REPAIR MANUAL
main13281-0V021-02×8i201607
MARK 2,REFER REPAIR MANUAL
main13281-0V021-03×8i201605-201607
MARK 3,REFER REPAIR MANUAL
main13281-36021-01×8i201901
MARK 1,REFER REPAIR MANUAL
main13281-36021-02×8i201901
MARK 2,REFER REPAIR MANUAL
main13281-36021-03×8i201901
MARK 3,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-20064×8i201308-201607
main90520-22025×8i201308-201607
13201ROD SUB-ASSY, CONNECTING
main13201-09A80-A0×4i201308-201605
MARK A,REFER REPAIR MANUAL
sub13201-39225
main13201-09A80-B0×4i201308-201605
MARK B,REFER REPAIR MANUAL
sub13201-39225
main13201-09A80-C0×4i201308-201605
MARK C,REFER REPAIR MANUAL
sub13201-39225
main13201-09A81-A0×4i201607
MARK A,REFER REPAIR MANUAL
main13201-09A81-B0×4i201605-201607
MARK B,REFER REPAIR MANUAL
main13201-09A81-C0×4i201607
MARK C,REFER REPAIR MANUAL
main13201-09D00×4i201701
(L)
main13201-39205×4i201607
(J)
main13201-39226-A0×4i201901
MARK A,REFER REPAIR MANUAL
main13201-39226-B0×4i201901
MARK B,REFER REPAIR MANUAL
main13201-39226-C0×4i201901
MARK C,REFER REPAIR MANUAL
13211PISTON
main13211-0T100×4i201607
main13211-0T110-A0×4i201308-201505
MARK A
main13211-0T110-B0×4i201308-201505
MARK B
main13211-0T110-C0×4i201308-201505
MARK C
main13211-0T240-A0×4i201505-201607
MARK A
main13211-0T240-B0×4i201505-201607
MARK B
main13211-0T240-C0×4i201505-201607
MARK C
main13211-0V030-A0×4i201607
MARK A,REFER REPAIR MANUAL
main13211-0V030-B0×4i201607
MARK B,REFER REPAIR MANUAL
main13211-0V030-C0×4i201607
MARK C,REFER REPAIR MANUAL
main13211-0V040-A0×4i201308-201411
MARK A,REFER REPAIR MANUAL
main13211-0V040-B0×4i201308-201411
MARK B,REFER REPAIR MANUAL
main13211-0V040-C0×4i201308-201411
MARK C,REFER REPAIR MANUAL
main13211-0V090-A0×4i201411-201607
MARK A,REFER REPAIR MANUAL
main13211-0V090-B0×4i201411-201607
MARK B,REFER REPAIR MANUAL
main13211-0V090-C0×4i201411-201607
MARK C,REFER REPAIR MANUAL
main13211-36090-A0×4i201901
MARK A,REFER REPAIR MANUAL
main13211-36090-B0×4i201901
MARK B,REFER REPAIR MANUAL
main13211-36090-C0×4i201901
MARK C,REFER REPAIR MANUAL
main13211-0T170×4i201809
EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)
13251PIN, PISTON
main13251-0H040-A0×4i201607
MARK A,REFER REPAIR MANUAL
main13251-0H040-B0×4i201308-201607
MARK B,REFER REPAIR MANUAL
main13251-0H040-C0×4i201308-201607
MARK C,REFER REPAIR MANUAL
main13251-0T010-A0×4i201308-201607
MARK A
main13251-0T010-B0×4i201607
MARK B
main13251-0T010-C0×4i201607
MARK C
main13251-28020-A0×4i201901
MARK A,REFER REPAIR MANUAL
main13251-28020-B0×4i201901
MARK B,REFER REPAIR MANUAL
main13251-28020-C0×4i201901
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
main13265-0T020×8i201803
(L)
main13265-0V010×8i201709
(L)
main13265-22020×8i201701-201803
sub13265-22040
main13265-31020×8i201308-201607
13411CRANKSHAFT
main13401-0T080i201701
(L)
main13401-0V021i201308-201607
sub13401-36011
main13401-0V060i201607-201901
main13401-36110i201901
main13401-37032i201607-201701
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main90280-C0001i201803
(L)
main95161-30516i201607-201803
13471PULLEY, CRANKSHAFT
main13470-0T010i201308-201607
main13470-0T040i201607
main13470-0V030i201308-201607
main13470-36010i201901
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-C0001i201803
(L)
main95161-30516i201607-201803
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16020i201607-201702
main90119-C0124i201810
main90119-C0429i201702
(L)
main90119-C0499i201607-201809
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0T100i201607
main13521-0V020i201308-201607
main13521-36010i201901
main13521-37020i201308-201606

16 parts on this diagram · 2 diagrams in section
