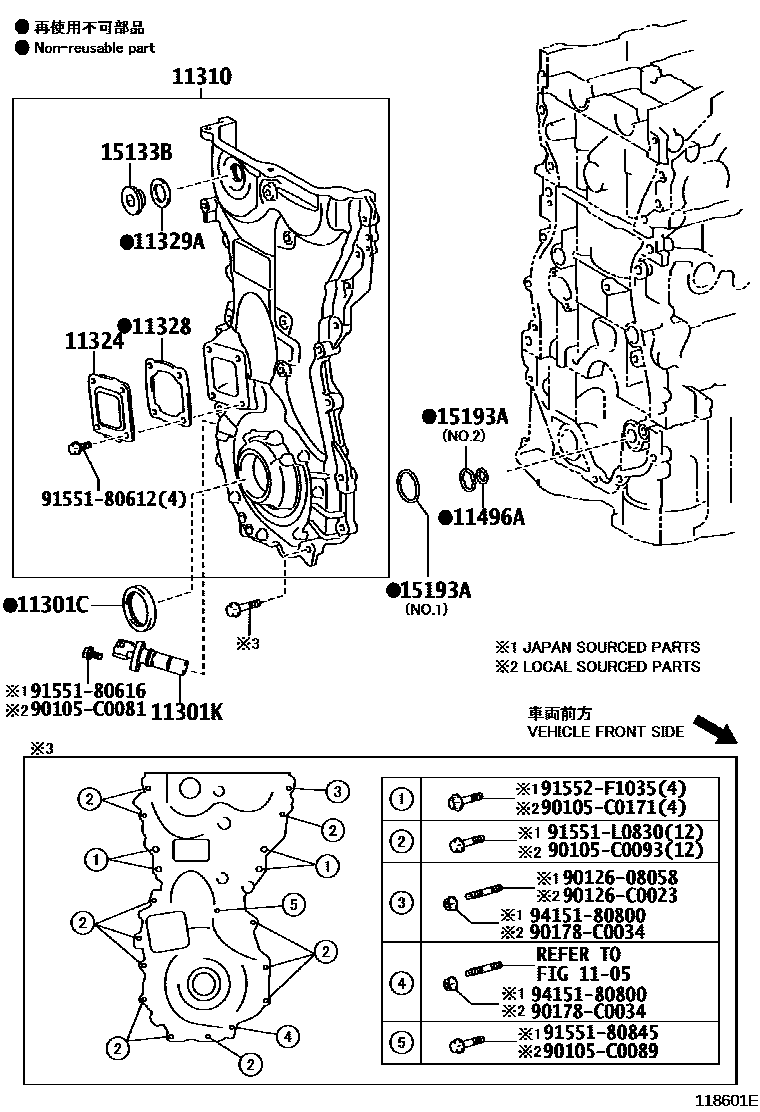

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40042i2ARFE..ASA45201901-201903

main90311-42061i2ARFE..ASA45201903

main90311-C0017i5ARFE..ASA44201308-201312

main90311-C0036i5ARFE..ASA44201312-201607

main90311-C0040i5ARFE..ASA44201607-201701

main90311-C0046i5ARFE..ASA44201702

11301KSENSOR, CRANK POSITION

main90919-05070i5ARFE..ASA44201308-201607

main90919-05088i2ARFE,5ARFE..ASA4#201607

11310COVER ASSY, TIMING CHAIN

main11310-0V030i5ARFE..ASA44201308-201607

main11310-36020i2ARFE..ASA45201901

11324PLATE, TIMING CHAIN COVER

main11324-36010i2ARFE,5ARFE..ASA4#201308-201607

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-36020i5ARFE..ASA44201308-201607

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-36010i5ARFE..ASA44201308-201502

main11329-36020i5ARFE..ASA44201503-201607

11496AGASKET, OIL HOLE COVER

main11496-0V010i5ARFE..ASA44201308-201607

main11496-36010i2ARFE..ASA45201901

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-36020i5ARFE..ASA44201308-201607

15193AGASKET, OIL PUMP

main15193-0V010i5ARFE..ASA44201308-201607

NO.1:REFER ILLUST.

main15193-36010i2ARFE..ASA45201901

NO.1:REFER ILLUST.

main15197-0V010i5ARFE..ASA44201308-201607

NO.2:REFER ILLUST.

main15197-36010i2ARFE..ASA45201901

NO.2:REFER ILLUST.

90105C0081

main90105-C0081

90105C0089

main90105-C0089

90105C0093

main90105-C0093

90105C0171

main90105-C0171

9012608058

main90126-08058

90126C0023

main90126-C0023

90178C0034

main90178-C0034

9155180612

main91551-80612

9155180616

main91551-80616

9155180845

main91551-80845

91551L0830

main91551-L0830

91552F1035

main91552-F1035

9415180800

main94151-80800

23 parts on this diagram · 2 diagrams in section
