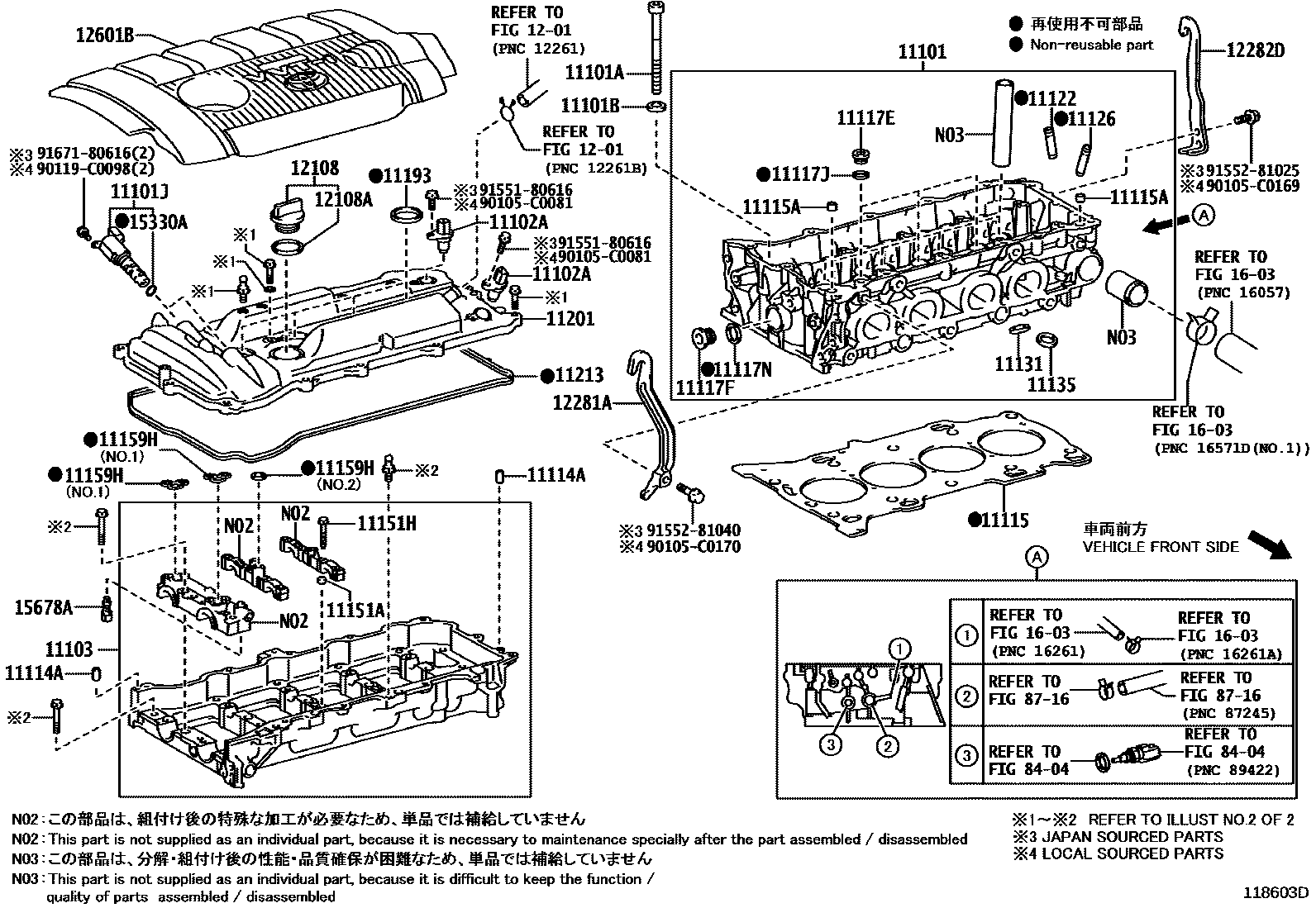

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
(J)
(L)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
(J)
(L)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
NO.1
NO.2
11102ASENSOR, CAMSHAFT POSITION
(J)
(L)
11114APIN, STRAIGHT
L=14,OD=6
L=14,OD=6
11115APIN, RING
(J)
(L)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
(J)
(L)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD,(L)
STD
STD
STD,(J)
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD,(L)
STD
STD
STD
STD,(J)
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8
L=12.5,OD=8,(J)
L=12.5,OD=8,(L)
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
(J)
(L)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
11193GASKET, SPARK PLUG TUBE
(L)
(J)
11201COVER SUB-ASSY, CYLINDER HEAD
1201
12108CAP SUB-ASSY, OIL FILLER
(L)
(J)
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
W(PAINTED)
W/O(PAINTED)
12282DHANGER, ENGINE, NO.2
W(PAINTED)
W/O(PAINTED)
12601BCOVER SUB-ASSY, ENGINE, NO.1
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
(L)
(J)
1603
8404
8716
90105C0081
main90105-C0081
90105C0169
main90105-C0169
90105C0170
main90105-C0170
90119C0098
main90119-C0098
9155180616
main91551-80616
9155281025
main91552-81025
9155281040
main91552-81040
9167180616
main91671-80616
42 parts on this diagram · 7 diagrams in section
