SHORT BLOCK ASSEMBLY

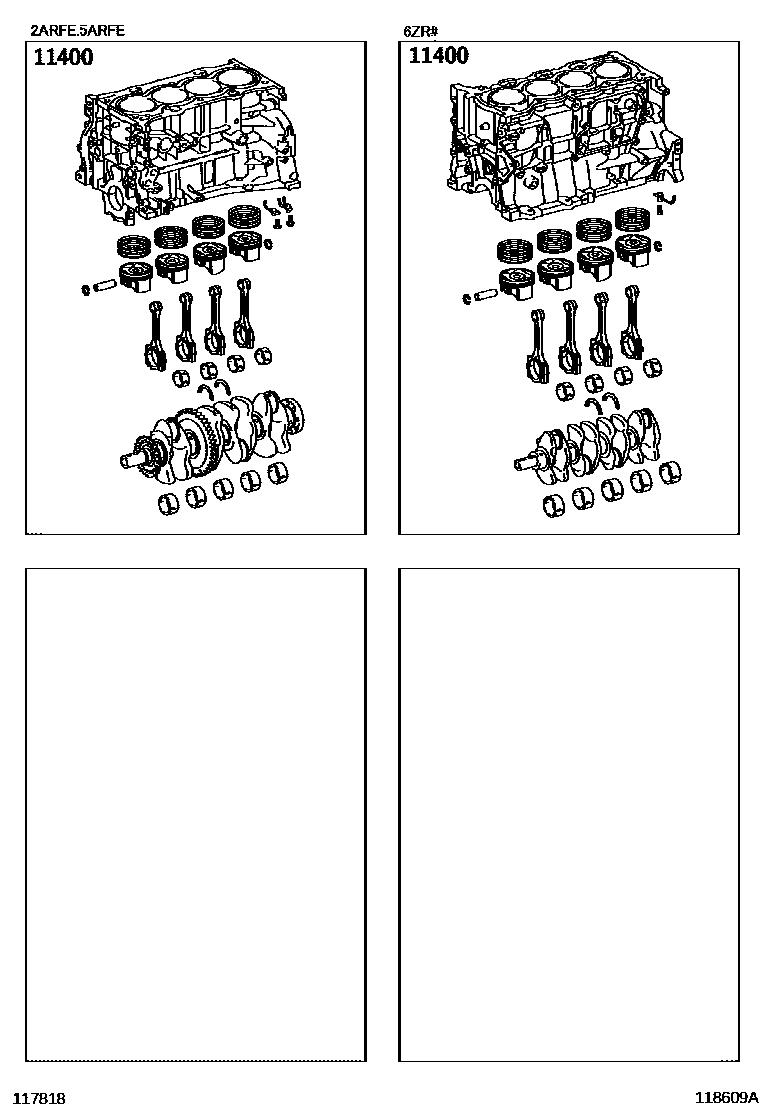

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0T240i201308-201607

main11400-0T430i201607

main11400-0V040i201308-201607

main11400-0V150i201607-201901

main11400-36220i201901

main11400-36240i201901

main11400-0T490i201809

EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)

1 parts on this diagram · 1 diagram in section
