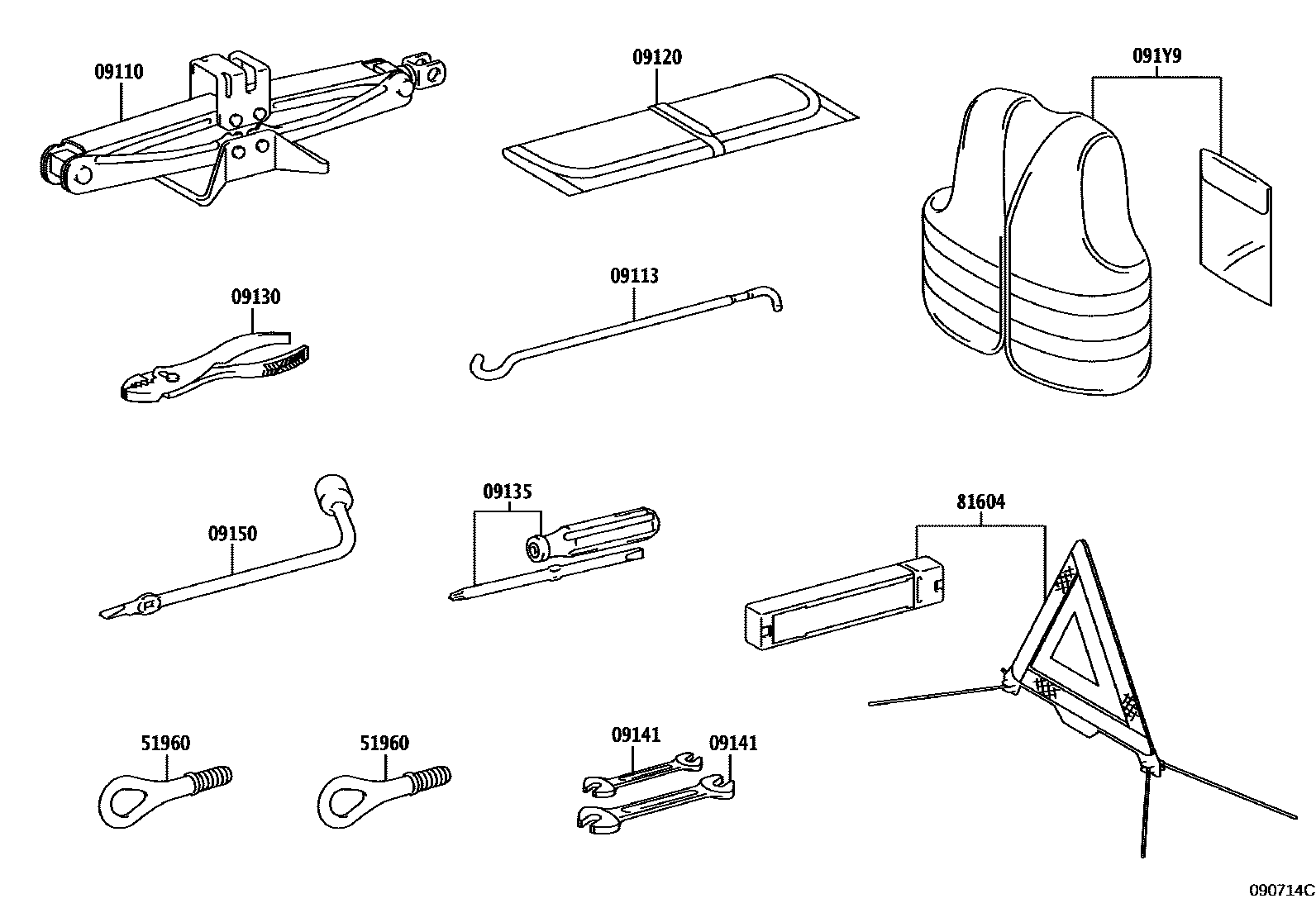

STANDARD TOOL

09110JACK ASSY

main09111-0R010iASA44,ZSA4#201308-201607

09113HANDLE, JACK

main09113-0R030iASA44,ZSA4#201308-201607

09120BAG, TOOL

main09120-0D010iASA44,ZSA4#201308-201607

09130PLIERS

main09130-0N010iASA44,ZSA4#201308-201607

09135DRIVER, SCREW

main09135-0N010iASA44,ZSA4#201308-201607

09141SPANNER

main09141-0N010iASA44,ZSA4#201308-201607

8 X 10

main09141-0N020iASA44,ZSA4#201308-201607

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0R020iASA44,ZSA4#201308-201607

091Y9JACKET, W/REFLECTOR

main091Y9-0R010iASA4#,ZSA4#201712

51960HOOK ASSY, FRONT

main51961-0R030×2iASA44,ZSA4#201308-201607

81604REFLECTOR SET, TRIANGLE

main81604-02030iASA44,ZSA4#201308-201607

10 parts on this diagram · 1 diagram in section
