Toyota RAV4 (CHINA)660 — MIRROR

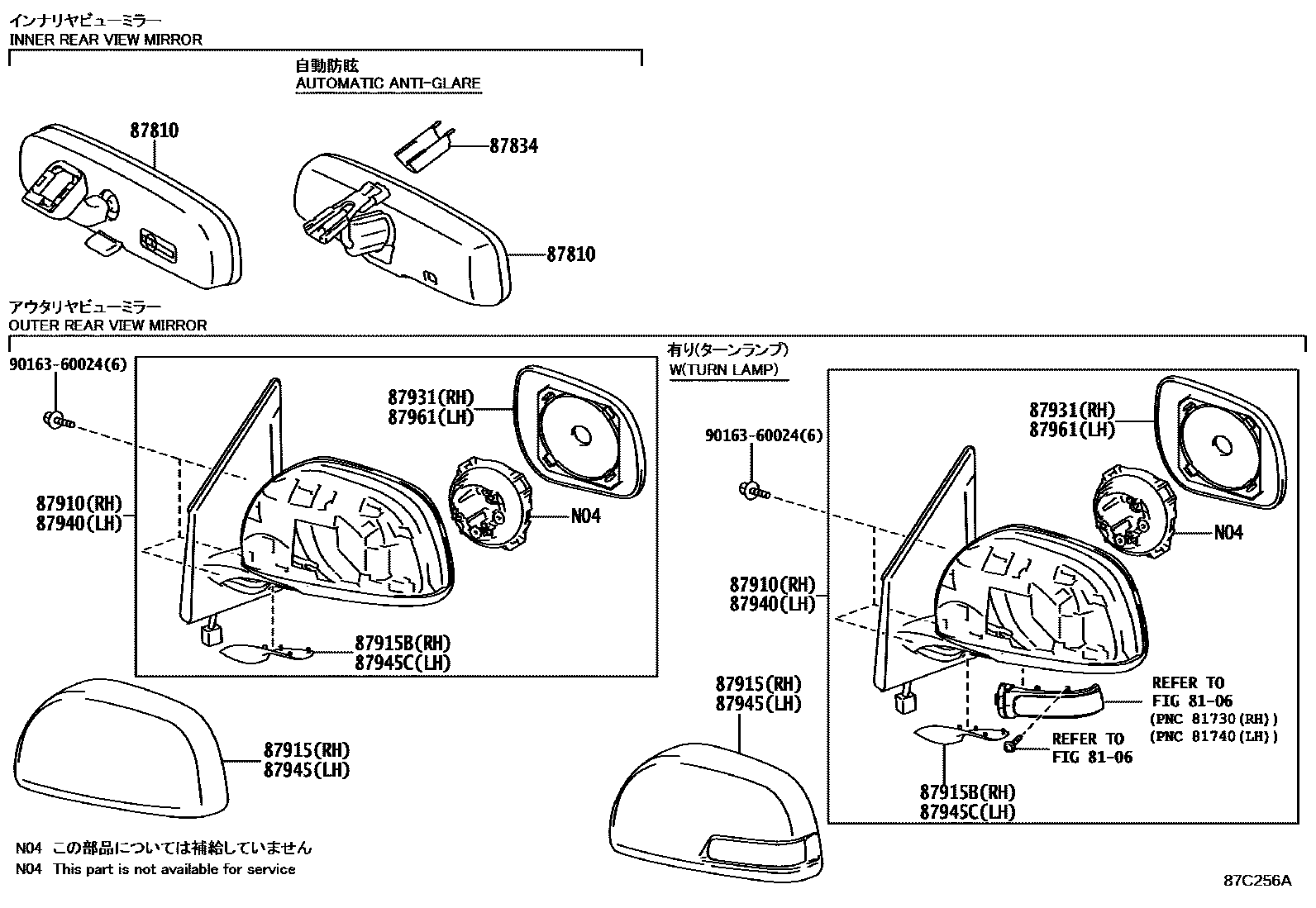

Parts diagram

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

87910MIRROR ASSY, OUTER REAR VIEW, RH

87915COVER, OUTER MIRROR, RH

87915BCOVER, OUTER MIRROR, LOWER RH

87931OUTER MIRROR, RH

87940MIRROR ASSY, OUTER REAR VIEW, LH

87945COVER, OUTER MIRROR, LH

87945CCOVER, OUTER MIRROR, LOWER LH

87961MIRROR OUTER, LH

9016360024

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota RAV4 (CHINA)660

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota RAV4 (CHINA)660. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
