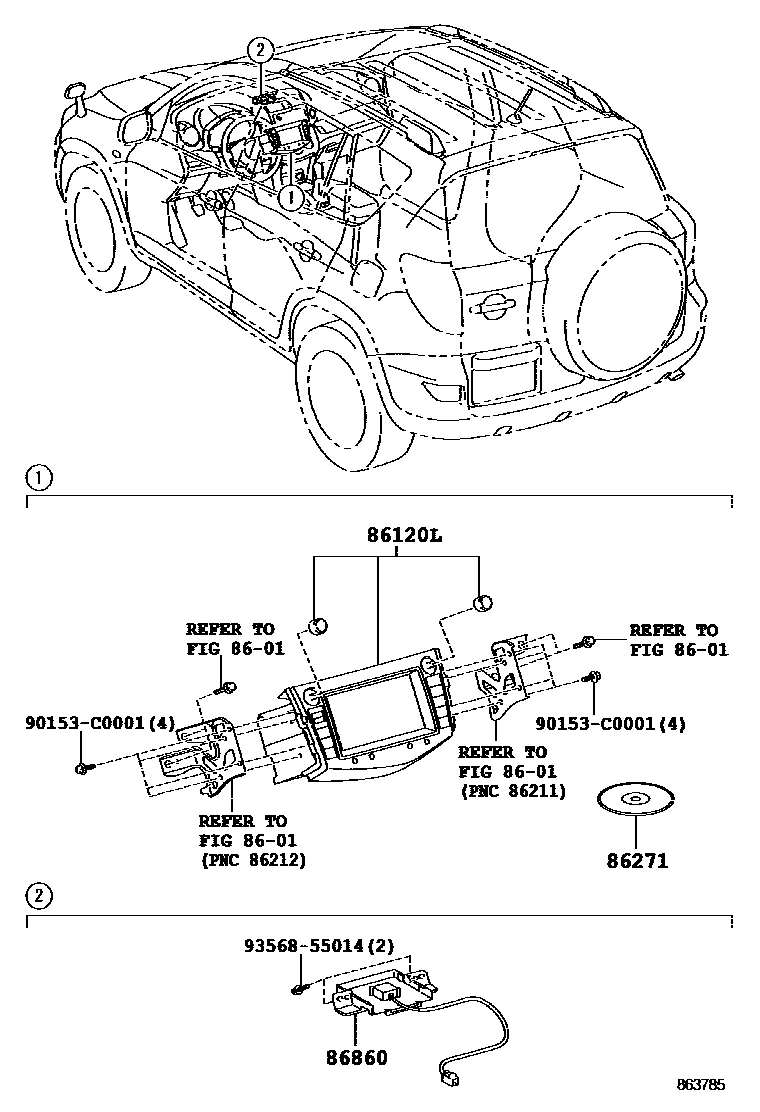

NAVIGATION & FRONT MONITOR DISPLAY

8601

86120LRECEIVER ASSY, NAVIGATION

main86120-0R060iACA33,37200903-201011

DENSO,ID=E8009,AUDIO-DVD-NAVIGATION,CD,BLUETOOTH

sub86120-0R061

86271DISC, DISC PLAYER

main86807-0W024iACA33,37200903-200904

AUDIO-DVD-NAVIGATION,CD,BLUETOOTH

main86807-0W025iACA33,37200905-200909

AUDIO-DVD-NAVIGATION,CD,BLUETOOTH

main86807-0W026iACA33,37200910-201003

AUDIO-DVD-NAVIGATION,CD,BLUETOOTH

main86807-0W027iACA33,37201004-201011

AUDIO-DVD-NAVIGATION,CD,BLUETOOTH

sub86807-0W028

86860ANTENNA ASSY, NAVIGATION

main86860-42030iACA33,37200903-201011

AUDIO-DVD-NAVIGATION,CD,BLUETOOTH

90153C0001

main90153-C0001

9356855014

main93568-55014

6 parts on this diagram · 1 diagram in section
