SPEAKER

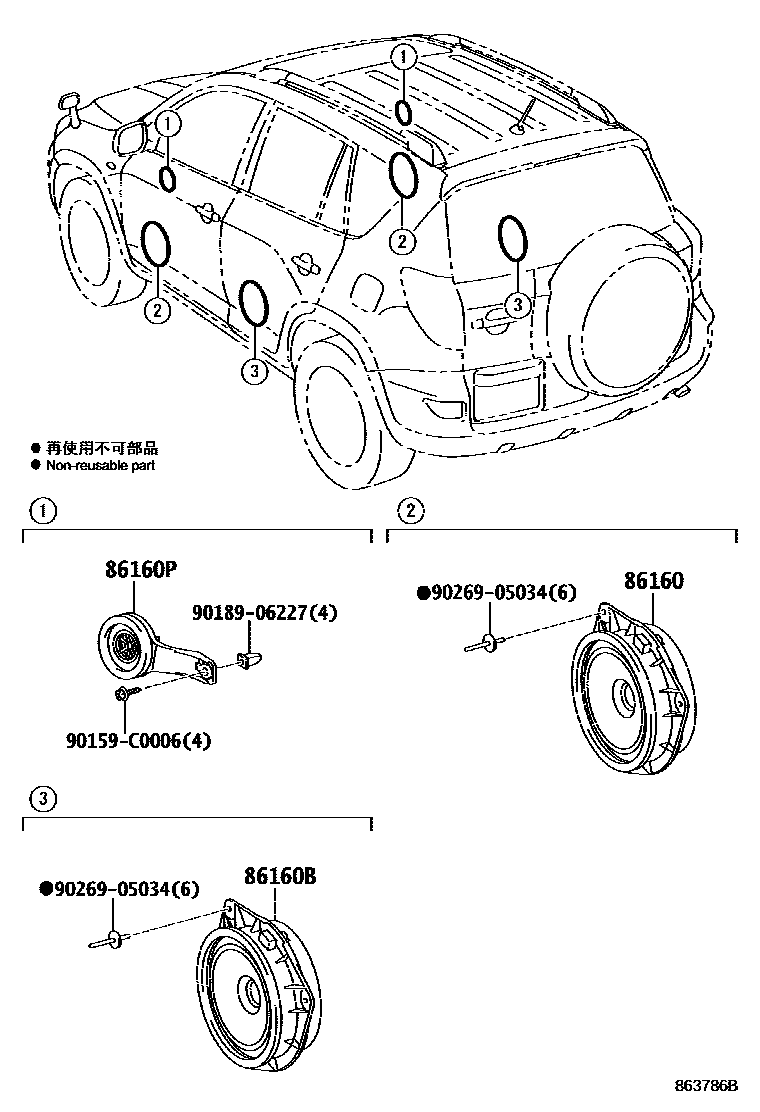

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-02B90×2i201211

main86160-0P040×2i200903-201108

86160BSPEAKER ASSY, REAR

main86160-02B90×2i201211

main86160-0P040×2i201108-201210

86160PSPEAKER ASSY, FRONT NO.2

main86160-0R120i200903-201108

RH

main86160-0R130i200903-201108

LH

90159C0006

main90159-C0006

9018906227

main90189-06227

9026905034

main90269-05034

6 parts on this diagram · 1 diagram in section
