REAR WIPER

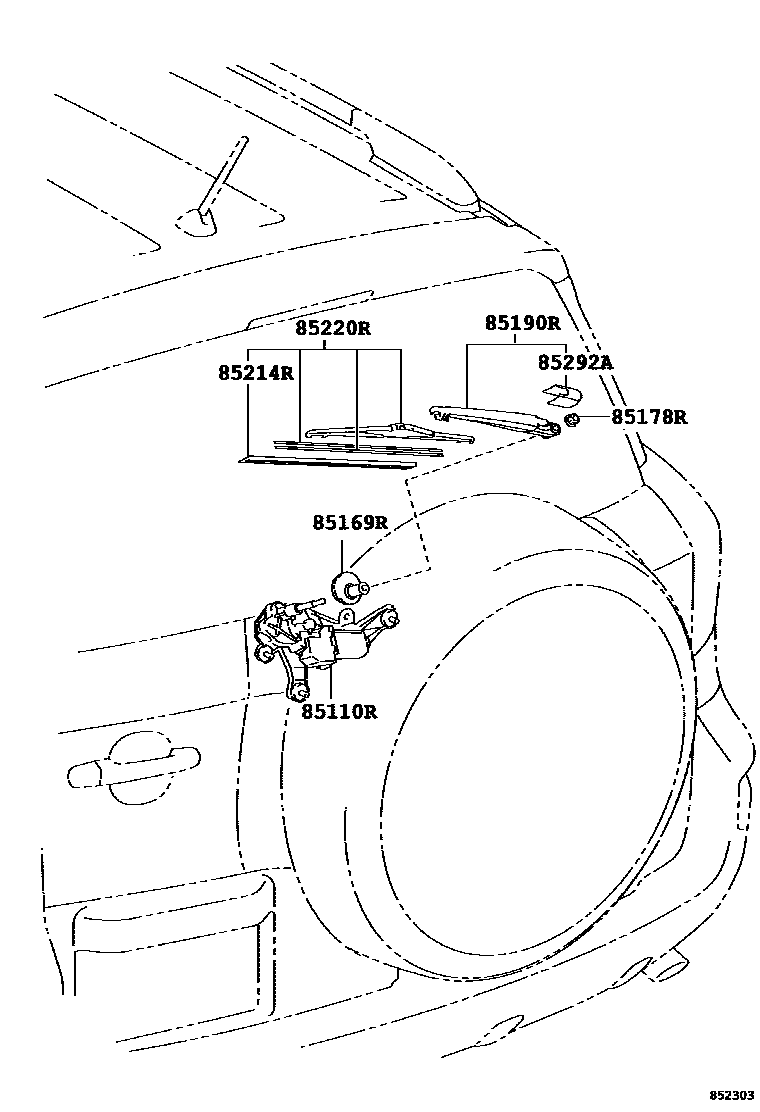

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-0R020i200903-201108

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85143-0R020i200903-201108

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158i200903-201108

85190RARM ASSY, REAR WIPER

main85241-0R020i200903-201108

85214RRUBBER, REAR WIPER

main85214-42040i200903-201108

85220RBLADE ASSY, REAR WIPER

main85242-0R010i200903-201108

85292ACAP, REAR WIPER ARM HEAD

main85292-0R020i200903-201108

7 parts on this diagram · 1 diagram in section
