WINDSHIELD WIPER

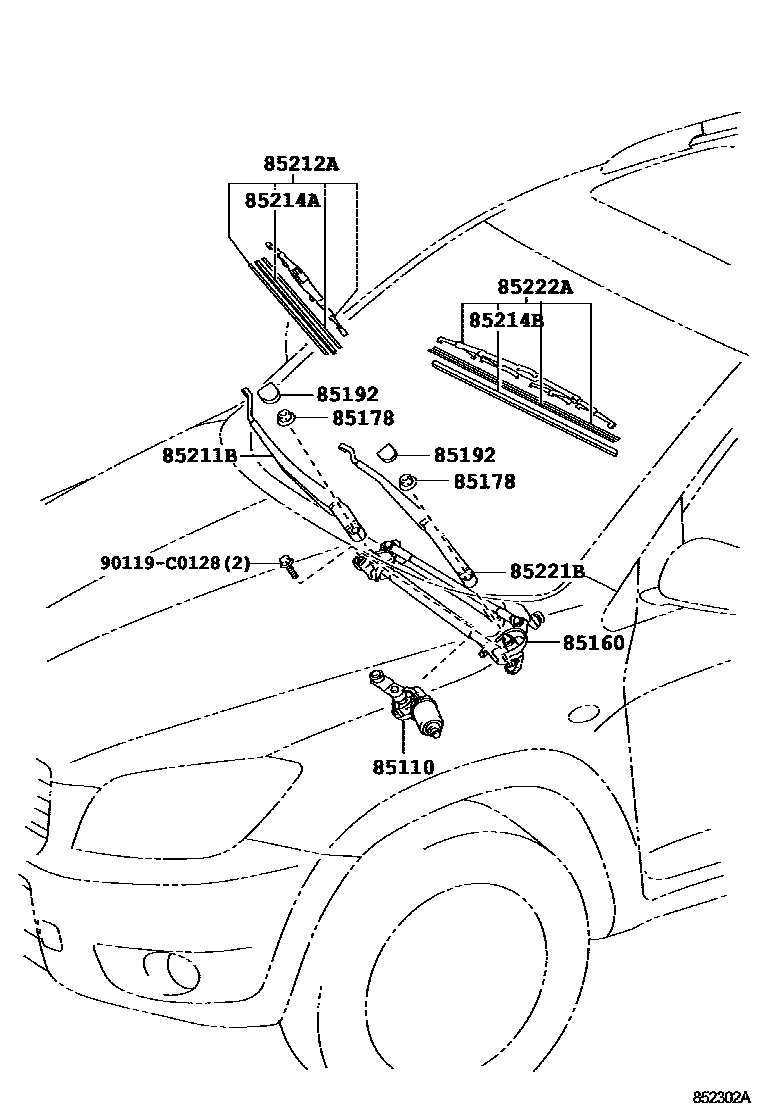

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0R020i200903-201108

85160LINK ASSY, WINDSHIELD WIPER

main85150-0R020i200903-201108

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2i200903-201108

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2i200903-201108

85211BARM, FRONT WIPER, RH

main85211-0R020i200903-201108

85212ABLADE, FR WIPER, RH

main85212-0R020i200912-201108

main85212-42120i200903-200912

85214ARUBBER, WIPER, RH

main85214-42050i200903-201108

85214BRUBBER, WIPER, LH

main85214-30380i200903-201108

85221BARM, FRONT WIPER, LH

main85221-0R020i200903-201108

85222ABLADE, FR WIPER, LH

main85222-0R030i200912-201108

main85222-42110i200903-200912

90119C0128

main90119-C0128

11 parts on this diagram · 1 diagram in section
