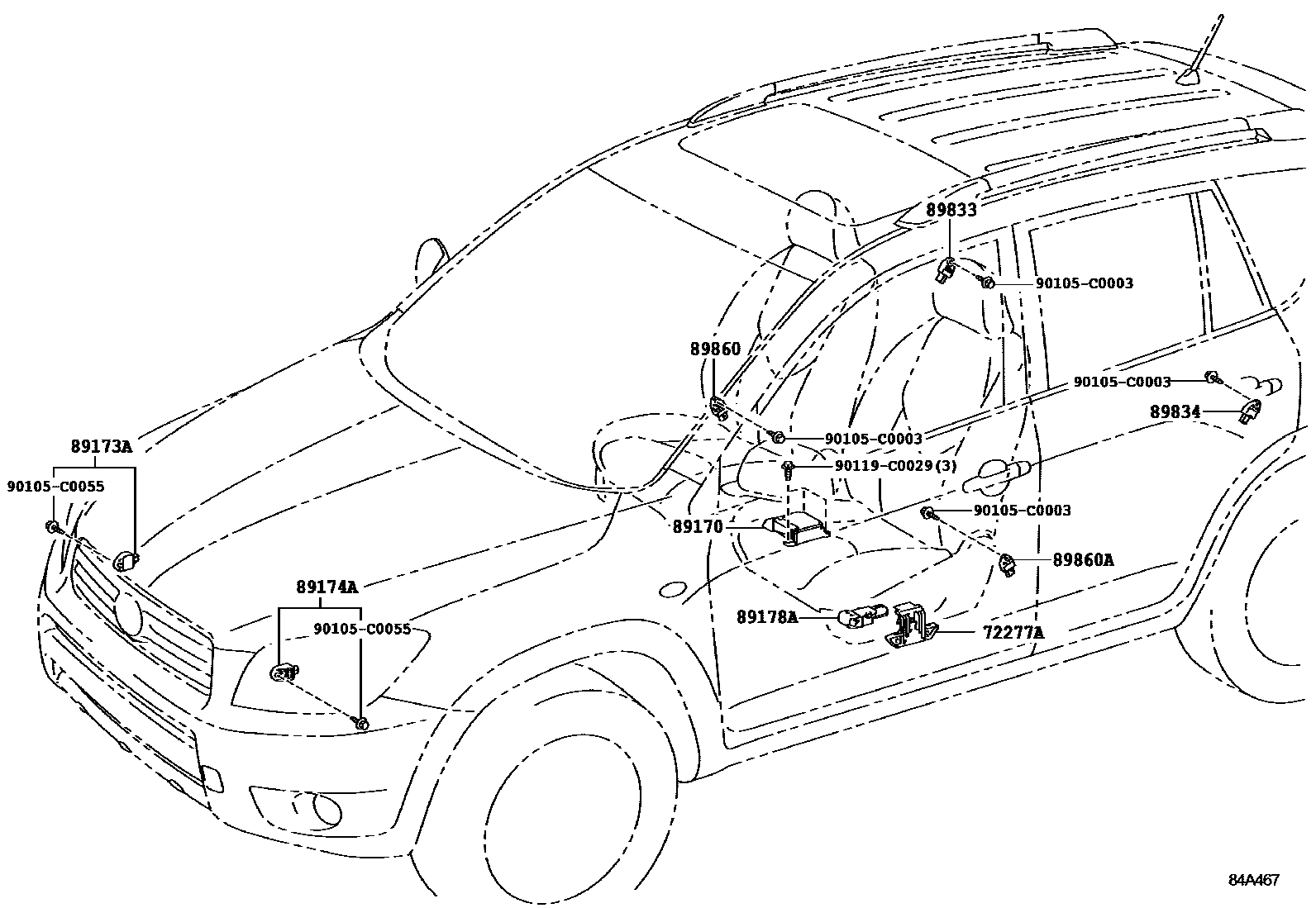

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iACA3#200903-201108

89170SENSOR ASSY, AIRBAG

main89170-0R030

main89170-0R040

main89170-0R041

main89170-0R050

main89170-42630

main89170-42640

89173ASENSOR, AIRBAG, FRONT RH

main89173-09600iACA3#200903-201009

main89173-09770iACA3#201009-201108

89174ASENSOR, AIRBAG, FRONT LH

main89173-09600iACA3#200903-201009

main89173-09770iACA3#201009-201108

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iACA3#200903-201108

89833SENSOR, AIRBAG, REAR RH

main89831-0R040

main89831-0R060

89834SENSOR, AIRBAG, REAR LH

main89831-0R040

main89831-0R060

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0D040iACA37200903-201008

DLX PACKAGE

main89831-0R050iACA37201009-201108

DLX PACKAGE

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0D040iACA37200903-201008

DLX PACKAGE

main89831-0R050iACA37201009-201108

DLX PACKAGE

90105C0003

main90105-C0003

90105C0055

main90105-C0055

90119C0029

main90119-C0029

12 parts on this diagram · 1 diagram in section
