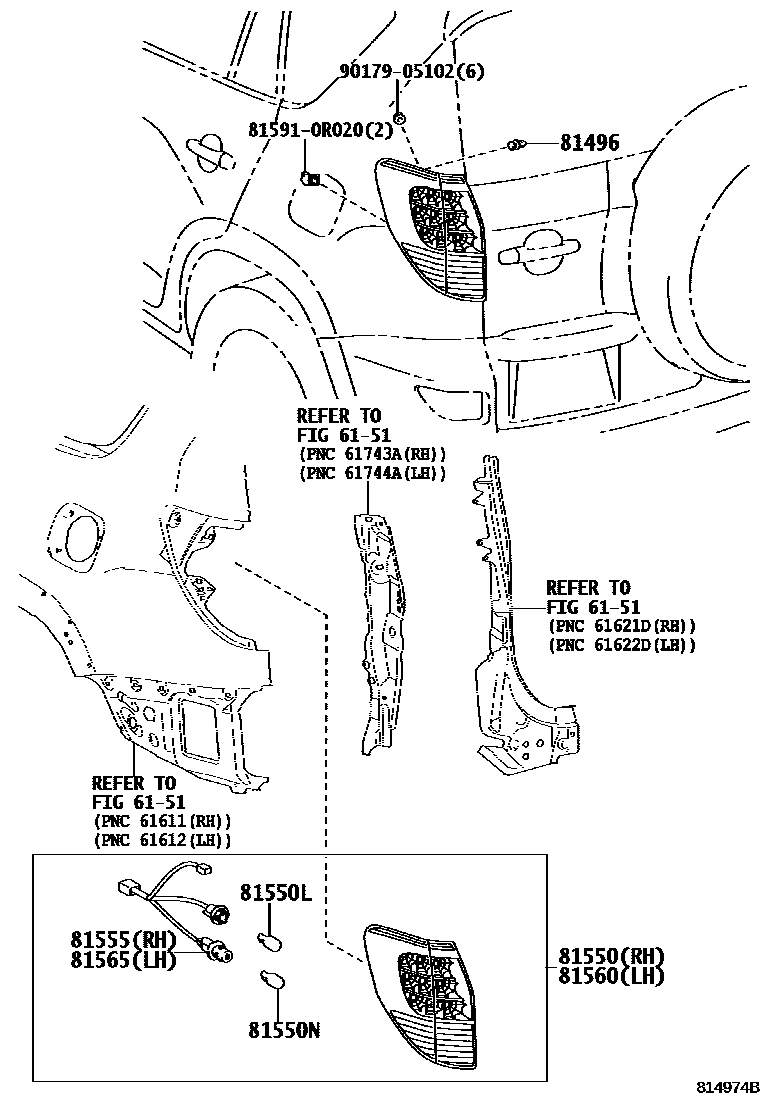

REAR COMBINATION LAMP

6151SIDE MEMBER

→ Go to FIG 61-51

81496GUIDE, REAR COMBINATION LAMP

main81496-0R020iACA3#200903-201108

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0R020iACA3#200903-201108

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iACA3#200903-201108

81550NBULB, BACK UP LAMP

main90981-11059iACA3#200903-201108

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0R020iACA3#200903-201108

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0R020iACA3#200903-201108

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0R020iACA3#200903-201108

815910R020LENS AND BODY, REFLEX SIDE REFLECTOR, LH

main81591-0R020

9017905102

main90179-05102

10 parts on this diagram · 1 diagram in section
