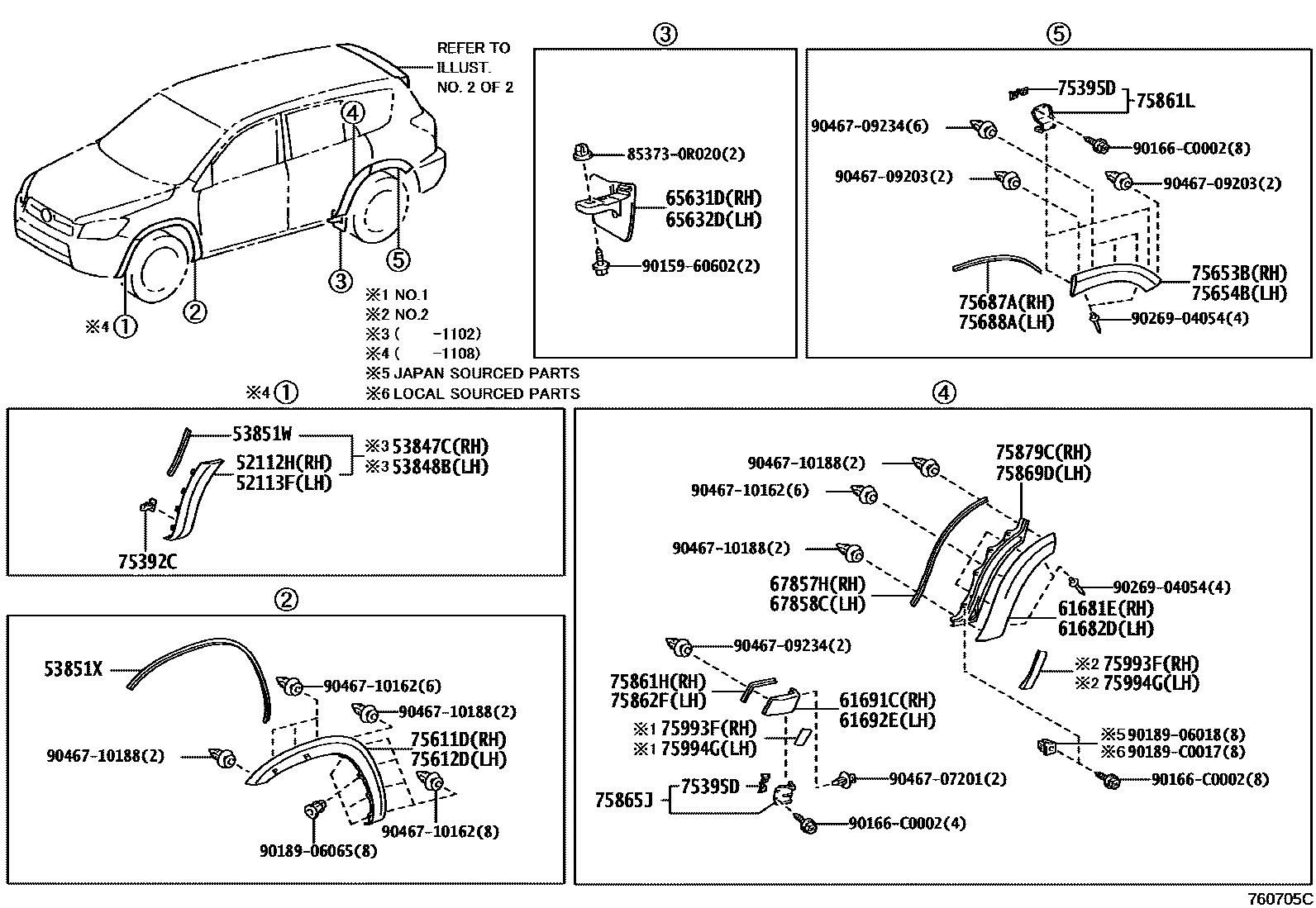

Toyota RAV4 (CHINA)660 — SPOILER & SIDE MUDGUARD
52112HEXTENSION, FRONT BUMPER, RH
52113FEXTENSION, FRONT BUMPER, LH
53847CEXTENSION, FRONT WHEEL OPENING, RH
53848BEXTENSION, FRONT WHEEL OPENING, LH
53851WPAD, FRONT WHEEL OPENING EXTENSION, NO.1
53851XPAD, FRONT WHEEL OPENING EXTENSION, NO.1
61681EEXTENSION, REAR WHEEL OPENING, NO.1 RH
61682DEXTENSION, REAR WHEEL OPENING, NO.1 LH
61691CEXTENSION, REAR WHEEL OPENING, NO.2 RH
61692EEXTENSION, REAR WHEEL OPENING, NO.2 LH
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
67857HPROTECTOR, REAR DOOR PANEL, RH
67858CPROTECTOR, REAR DOOR PANEL, LH
75392CRETAINER, OUTSIDE MOULDING
75395DCLIP, OUTSIDE MOULDING, NO.1
75611DMOULDING, FRONT FENDER, OUTSIDE FRONT RH
75612DMOULDING, FRONT FENDER, OUTSIDE FRONT LH
75653BMOULDING, QUARTER OUTSIDE, RH NO.3
75654BMOULDING, QUARTER, OUTSIDE NO.4
75687APROTECTOR, QUARTER MOULDING, LOWER REAR RH
75688APROTECTOR, QUARTER MOULDING, LOWER REAR LH
75861HPROTECTOR, ROCKER PANEL MOULDING, NO.1
75861LRETAINER, ROCKER PANEL MOULDING, NO.1
75862FPROTECTOR, ROCKER PANEL MOULDING, NO.2
75865JRETAINER, ROCKER PANEL MOULDING, NO.2
75869DRETAINER, QUARTER OPENING, LH
75879CRETAINER, QUARTER OPENING, RH
75993FSTRIPE, QUARTER, FRONT RH
75994GSTRIPE, QUARTER, FRONT LH
853730R020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
9015960602
90166C0002
9018906018
9018906065
90189C0017
9026904054
9046707201
9046709203
9046709234
9046710162
9046710188
42 parts on this diagram · 2 diagrams in section
SPOILER & SIDE MUDGUARD for Toyota RAV4 (CHINA)660
This section contains 52 genuine Toyota parts for the SPOILER & SIDE MUDGUARD system of the Toyota RAV4 (CHINA)660. Key components include: EXTENSION, FRONT BUMPER, RH, EXTENSION, FRONT BUMPER, LH, EXTENSION, FRONT WHEEL OPENING, RH, EXTENSION, FRONT WHEEL OPENING, LH, PAD, FRONT WHEEL OPENING EXTENSION, NO.1.
