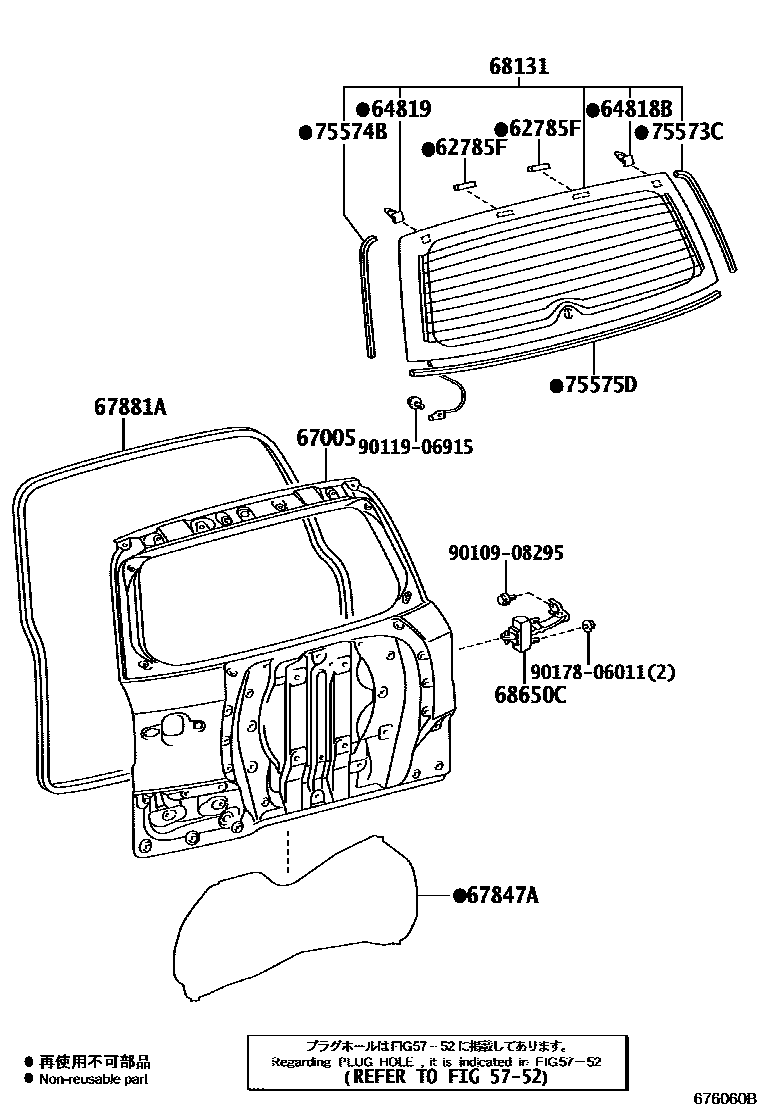

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1BACK DOOR OUTSIDE GARNISH 0003 1DOOR TRIM

5752

62785FSPACER, BACK DOOR GLASS

main62785-0R020×2iACA3#201108

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0R020iACA3#200903-201108

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-0R020iACA3#200903-201108

67005PANEL SUB-ASSY, BACK DOOR

main67005-0R030iACA3#200903-201108

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-0R030iACA3#200903-201108

sub67847-42030

67881AWEATHERSTRIP, BACK DOOR

main67881-0R020iACA3#200903-201108

68131GLASS, BACK DOOR

main68105-0R030iACA3#200903-201108

*EHT,T=3.1,DK.GRAY

68650CCHECK ASSY, BACK DOOR, RH

main68650-0R020iACA3#201108

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-0R020iACA3#200903-201108

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-0R020iACA3#200903-201108

75575DMOULDING, BACK WINDOW, LOWER

main75575-0R020iACA3#200903-201108

9010908295

main90109-08295

9011906915

main90119-06915

9017806011

main90178-06011

15 parts on this diagram · 3 diagrams in section
