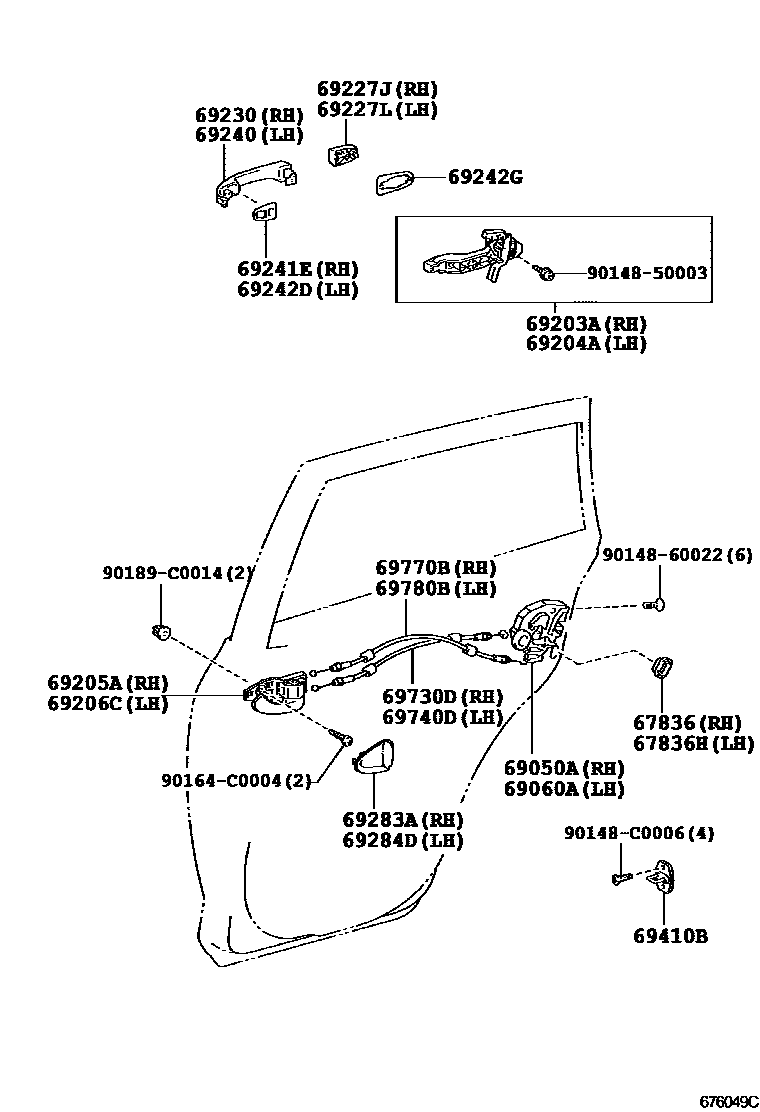

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#,4#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3,METALLIC PAINTED
BLACK MC.,209
RED M.M.,3R3
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
DK.BLUE MC.,8S6
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3,METALLIC PAINTED
BLACK MC.,209
RED M.M.,3R3
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
DK.BLUE MC.,8S6
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3,METALLIC PAINTED
sub69211-02944
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3,METALLIC PAINTED
sub69211-02944
69241EPAD, REAR DOOR OUTSIDE HANDLE, RH
69242DPAD, REAR DOOR OUTSIDE HANDLE, LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
DK.GRAY,TRIM1#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
DK.GRAY,TRIM1#
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860022
main90148-60022
90148C0006
main90148-C0006
90164C0004
main90164-C0004
90189C0014
main90189-C0014
27 parts on this diagram · 1 diagram in section
