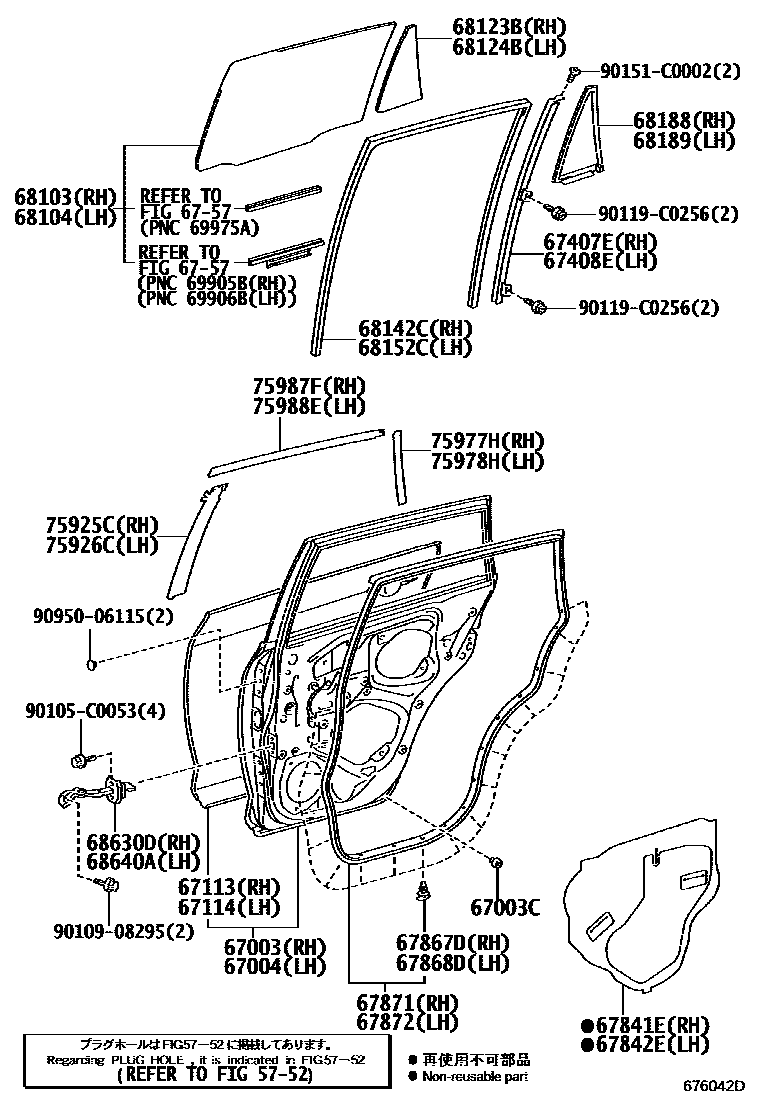

REAR DOOR PANEL & GLASS
5752
67003PANEL SUB-ASSY, REAR DOOR, RH
DLX PACKAGE
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
DLX PACKAGE
67113PANEL, REAR DOOR, OUTER RH
DLX PACKAGE
67114PANEL, REAR DOOR, OUTER LH
DLX PACKAGE
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
6757
67841ECOVER, REAR DOOR SERVICE HOLE, RH
sub67841-42040
67842ECOVER, REAR DOOR SERVICE HOLE, LH
sub67842-42020
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=3.1,DARK GRAY
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=3.1,DARK GRAY
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*TEM,T=3.1,DARK GRAY
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*TEM,T=3.1,DARK GRAY
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75925CTAPE, BLACK OUT, NO.3 RH
75926CTAPE, BLACK OUT, NO.3 LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988ESTRIPE, REAR DOOR, OUTSIDE LH
90105C0053
main90105-C0053
9010908295
main90109-08295
90119C0256
main90119-C0256
90151C0002
main90151-C0002
9095006115
main90950-06115
36 parts on this diagram · 2 diagrams in section
