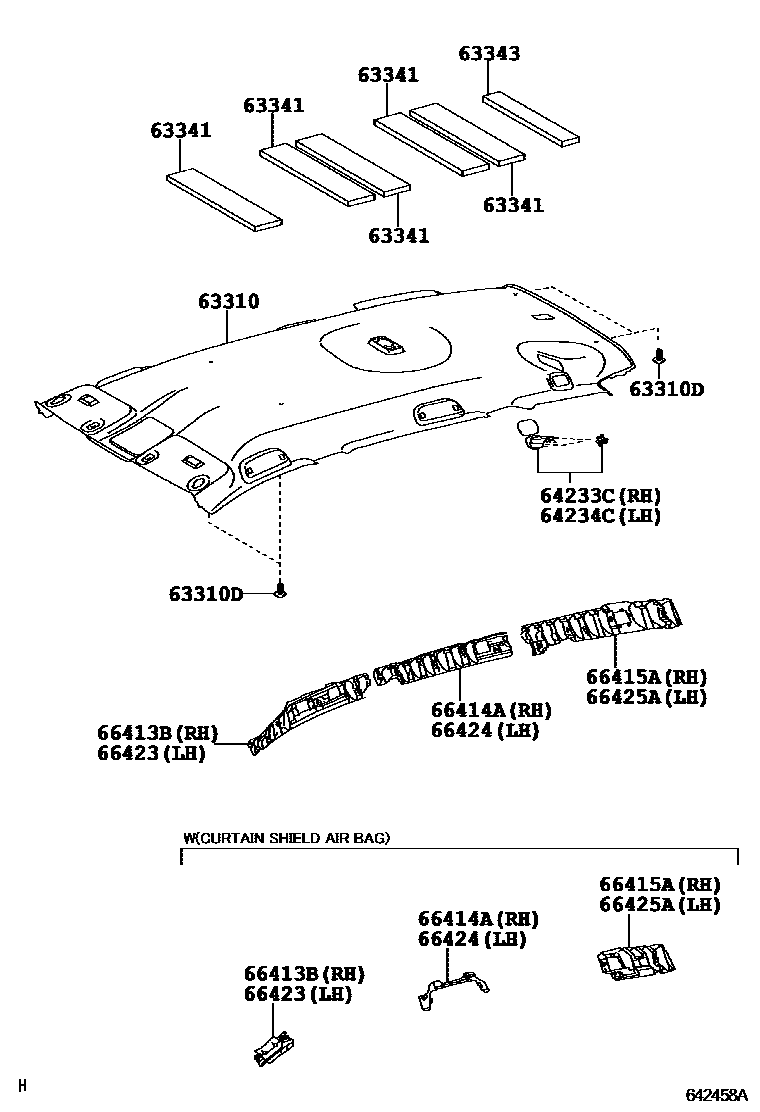

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63310-0R060-B0supersedes 63310-0R050-B0iACA37200903-201108

DLX PACKAGE,GRAY,TRIM1#

main63310-0R060-E0supersedes 63310-0R050-E0iACA37201108-201307

MOON ROOF-WITH,SAND BEIGE,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-05164-B6×2iACA37200903-201106

DLX PACKAGE,GRAY,TRIM1#

main90467-C0016-B0×2supersedes 90467-C0016-B0iACA37201107-201108

DLX PACKAGE,GRAY,TRIM1#

main90467-C0016-E1×2supersedes 90467-C0016-E1iACA37201108-201307

MOON ROOF-WITH,SAND BEIGE,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63341-0R020×2supersedes 63341-0R020iACA37200903-201108

DLX PACKAGE

63343PAD, ROOF SILENCER, NO.3

main63343-0R020iACA3#200903-201108

64233CHOOK, ROOM PARTITION NET, REAR RH

main64233-0R020-B0iACA3#200903-201108

GRAY,TRIM1#

main64233-0R020-E0iACA3#201108-201307

SAND BEIGE,TRIM4#

64234CHOOK, ROOM PARTITION NET, REAR LH

main64234-0R020-B0iACA3#200903-201108

GRAY,TRIM1#

main64234-0R020-E0iACA3#201108-201307

SAND BEIGE,TRIM4#

66413BSPACER, SIDE RAIL, FRONT RH

66414ASPACER, SIDE RAIL, REAR RH

66415ASPACER, SIDE RAIL, REAR NO.2 RH

66423SPACER, SIDE RAIL, FRONT LH

main66423-0R040

main66423-42120

66424SPACER, SIDE RAIL, REAR LH

main66424-0R040

main66424-42100

66425ASPACER, SIDE RAIL, REAR NO.2 LH

12 parts on this diagram · 2 diagrams in section
