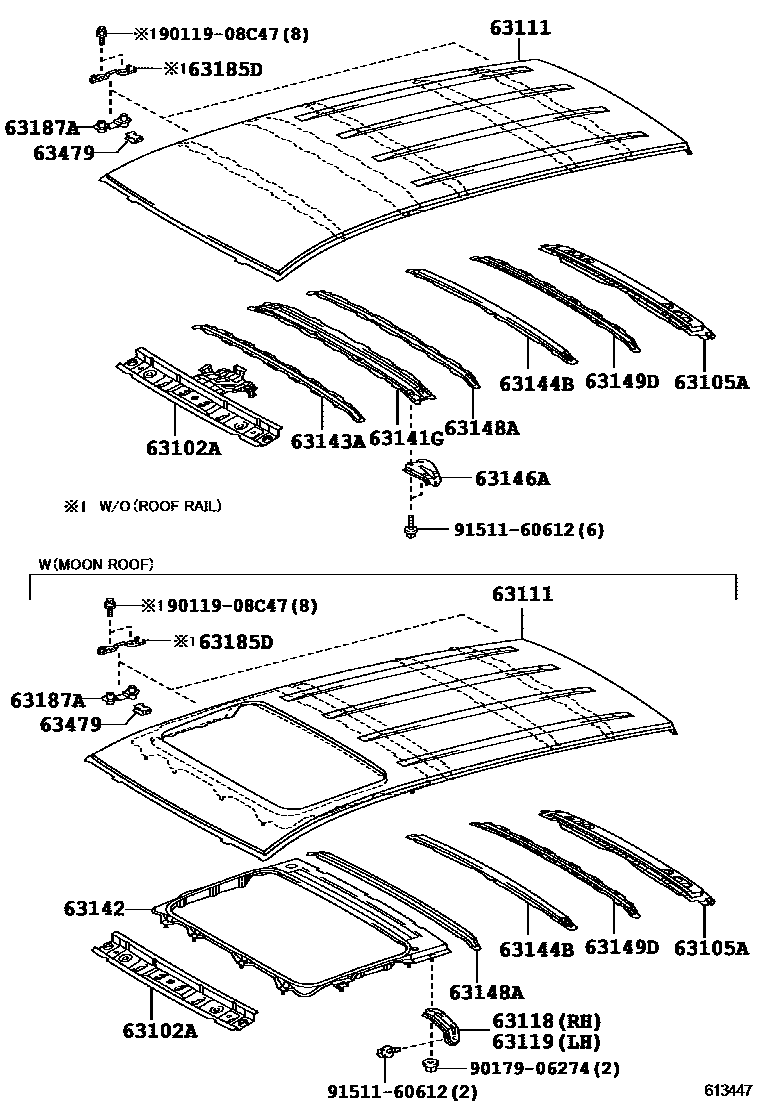

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0R904supersedes 63102-0R903iACA32,33201108

MOON ROOF-WITH

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0R020iACA3#201108

63111PANEL, ROOF

main63111-42180supersedes 63111-42160iACA32,33201108

MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-0R020iACA33200903-201108

DLX PACKAGE

63119SUPPORT, ROOF PANEL, LH

main63118-0R020iACA33200903-201108

DLX PACKAGE

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-0R020iACA37200903-201108

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-0R902iACA33200903-201108

DLX PACKAGE

63143AREINFORCEMENT, ROOF PANEL

main63143-0R020iACA37200903-201108

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0R020iACA3#201108

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-0R020×2iACA37201108

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-0R040supersedes 63148-0R030iACA32,33201108

MOON ROOF-WITH

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-0R020iACA3#200903-201108

63185DBRACKET, ROOF RACK, FRONT

main63185-42020×4iACA37200903-201108

63187ABRACKET, ROOF RACK, REAR

main63187-42010×4iACA3#200903-201108

63479RETAINER, ROOF INNER RACK

main63479-42010×4iACA3#200903-201108

9011908C47

main90119-08C47

9017906274

main90179-06274

9151160612

main91511-60612

18 parts on this diagram · 3 diagrams in section
