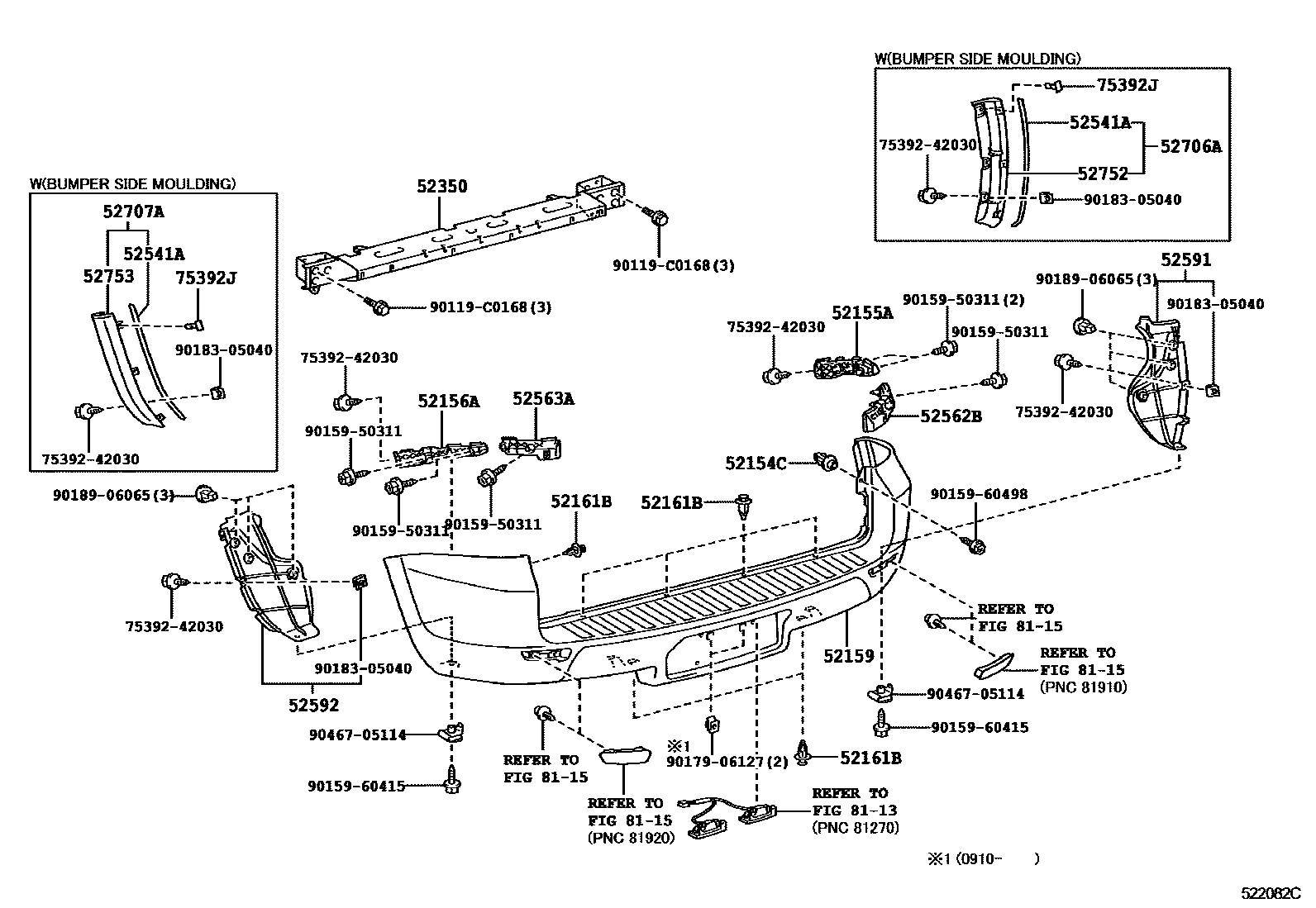

REAR BUMPER & BUMPER STAY
52154CSUPPORT, REAR BUMPER, NO.1
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,DLX PACKAGE
52161BPIECE, REAR BUMPER
52350STEP ASSY, REAR BUMPER
52541APROTECTOR, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52706AMOULDING SUB-ASSY, REAR BUMPER SIDE, RH
52707AMOULDING SUB-ASSY, REAR BUMPER SIDE, LH
52752MOULDING, REAR BUMPER SIDE, RH
52753MOULDING, REAR BUMPER SIDE, LH
75392JRETAINER, OUTSIDE MOULDING
8113
8115
7539242030RETAINER, OUTSIDE MOULDING
main75392-42030
90119C0168
main90119-C0168
9015950311
main90159-50311
9015960415
main90159-60415
9015960498
main90159-60498
9017906127
main90179-06127
9018305040
main90183-05040
9018906065
main90189-06065
9046705114
main90467-05114
27 parts on this diagram · 1 diagram in section
