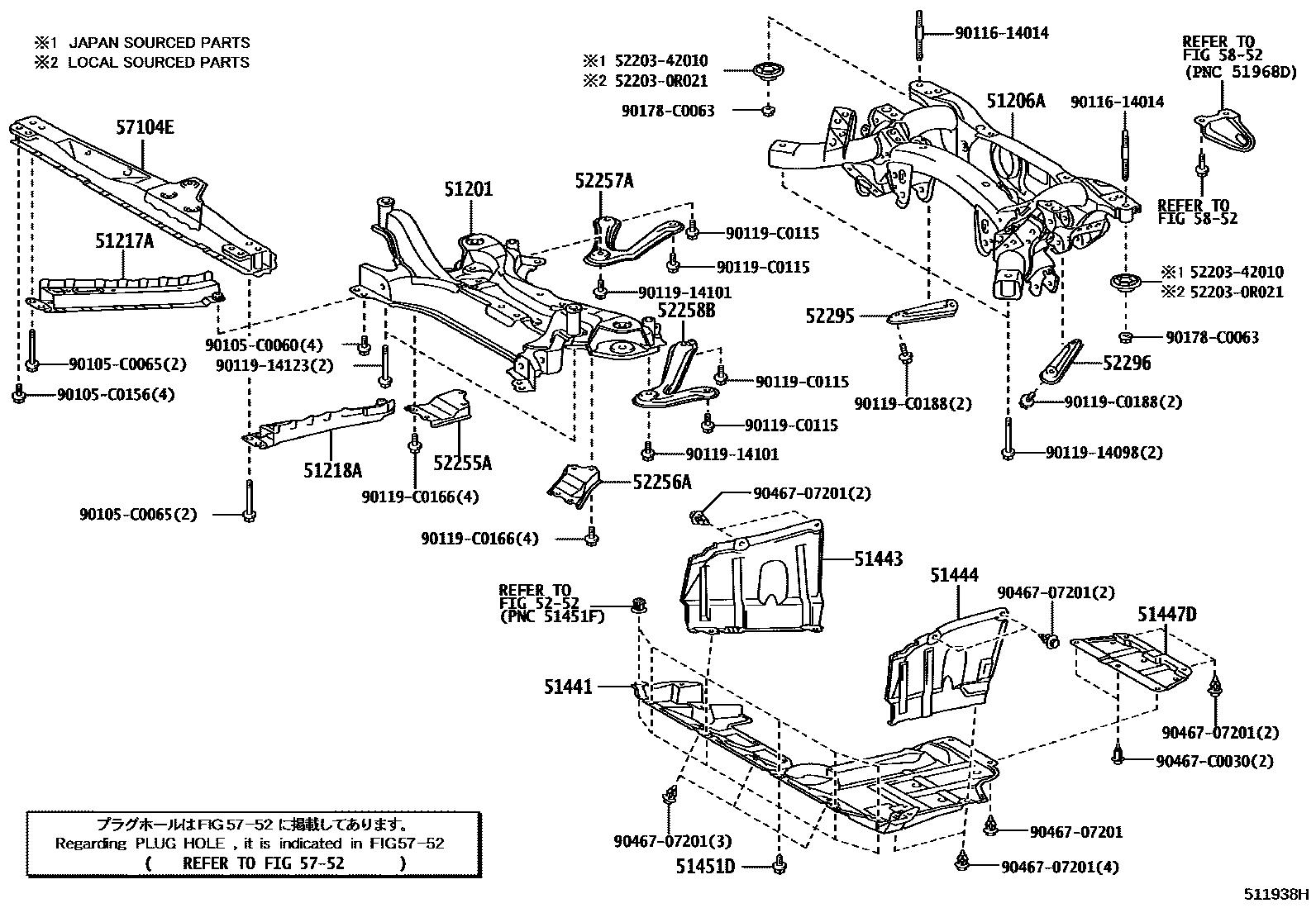

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02131iACA3#200903-201108

sub51201-02132

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0R021iACA3#200903-201011

sub51206-42051

main51206-0R042iACA3#201011-201108

sub51206-0R043

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-0R020iACA3#200903-201108

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-0R020iACA3#200903-201108

51441COVER, ENGINE UNDER, NO.1

main51410-0R020iACA3#200903-201108

51443COVER, ENGINE UNDER, REAR RH

main51443-0R020iACA3#200903-201108

51444COVER, ENGINE UNDER, REAR LH

main51444-0R030iACA3#200903-201108

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02030iACA3#200903-201108

51451DSCREW, NO.1

main90159-60498×6iACA3#200903-201108

52255ABRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02030iACA3#200903-201108

52256ABRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02030iACA3#200903-201108

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R020iACA3#200903-201108

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R020iACA3#200903-201108

main52258-0R021iACA3#201201

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-0R020iACA3#200903-201108

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-0R020iACA3#200903-201108

5252

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-0R020iACA3#200903-201108

5752

5852

522030R021CUSHION SUB-ASSY, REAR FRAME

main52203-0R021

5220342010CUSHION SUB-ASSY, REAR FRAME

main52203-42010

90105C0060

main90105-C0060

90105C0065

main90105-C0065

90105C0156

main90105-C0156

9011614014

main90116-14014

9011914098

main90119-14098

9011914101

main90119-14101

9011914123

main90119-14123

90119C0115

main90119-C0115

90119C0166

main90119-C0166

90119C0188

main90119-C0188

90178C0063

main90178-C0063

9046707201

main90467-07201

90467C0030

main90467-C0030

34 parts on this diagram · 1 diagram in section
