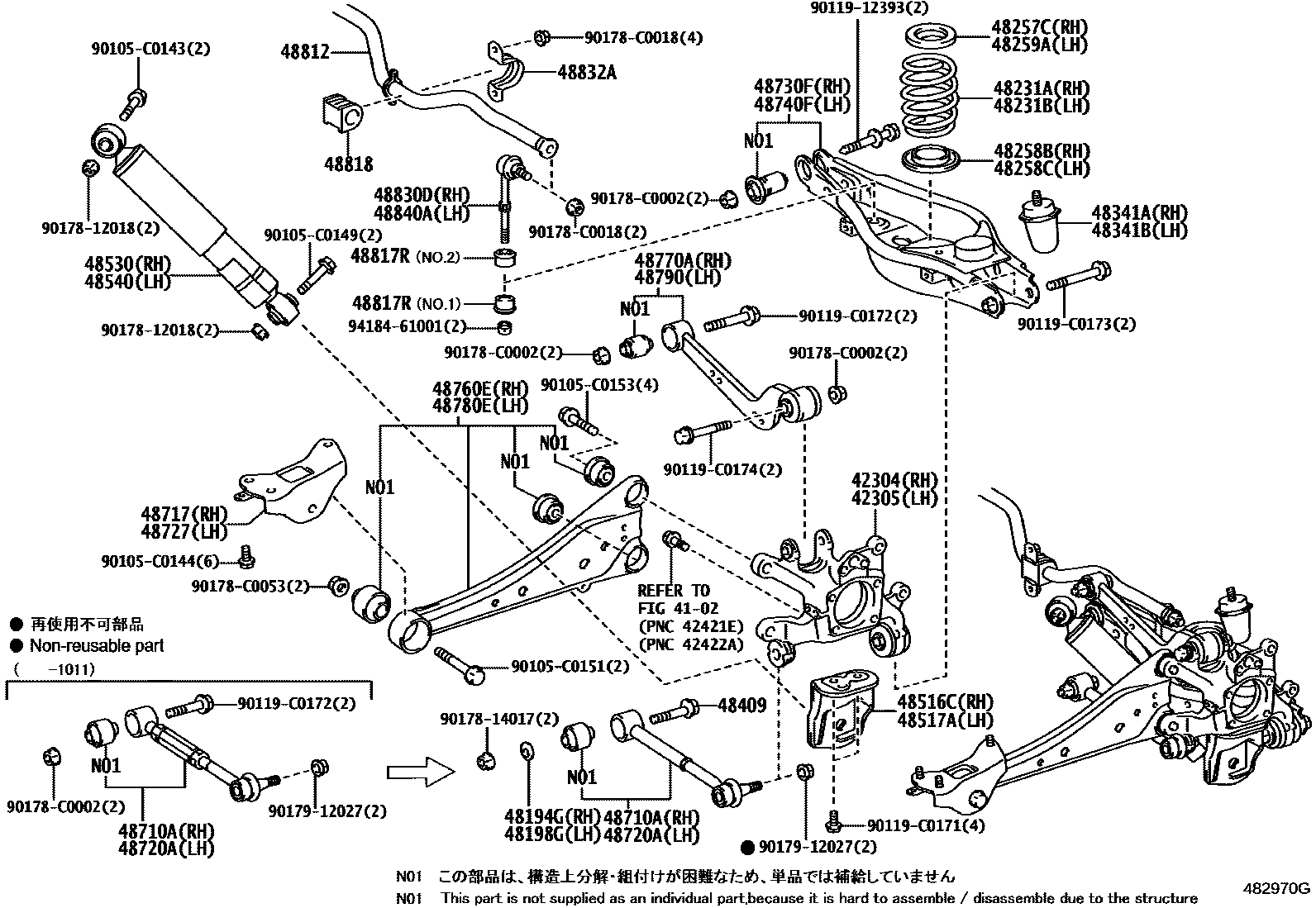

REAR SPRING & SHOCK ABSORBER
4102
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48194GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH
48198GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48516CBRACKET, REAR SHOCK ABSORBER, NO.1 RH
48517ABRACKET, REAR SHOCK ABSORBER, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-0R030
MARK 48531-0R031
MARK 48531-0R040
MARK 48531-0R041
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-0R030
MARK 48531-0R031
MARK 48531-0R040
MARK 48531-0R041
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48717BRACKET, REAR SUSPENSION ARM, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48727BRACKET, REAR SUSPENSION ARM, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48817RCUSHION, STABILIZER(FOR REAR)
NO.1
NO.2
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
90105C0143
main90105-C0143
90105C0144
main90105-C0144
90105C0149
main90105-C0149
90105C0151
main90105-C0151
90105C0153
main90105-C0153
9011912393
main90119-12393
90119C0171
main90119-C0171
90119C0172
main90119-C0172
90119C0173
main90119-C0173
90119C0174
main90119-C0174
9017812018
main90178-12018
9017814017
main90178-14017
90178C0002
main90178-C0002
90178C0018
main90178-C0018
90178C0053
main90178-C0053
9017912027
main90179-12027
9418461001
main94184-61001
51 parts on this diagram · 1 diagram in section
