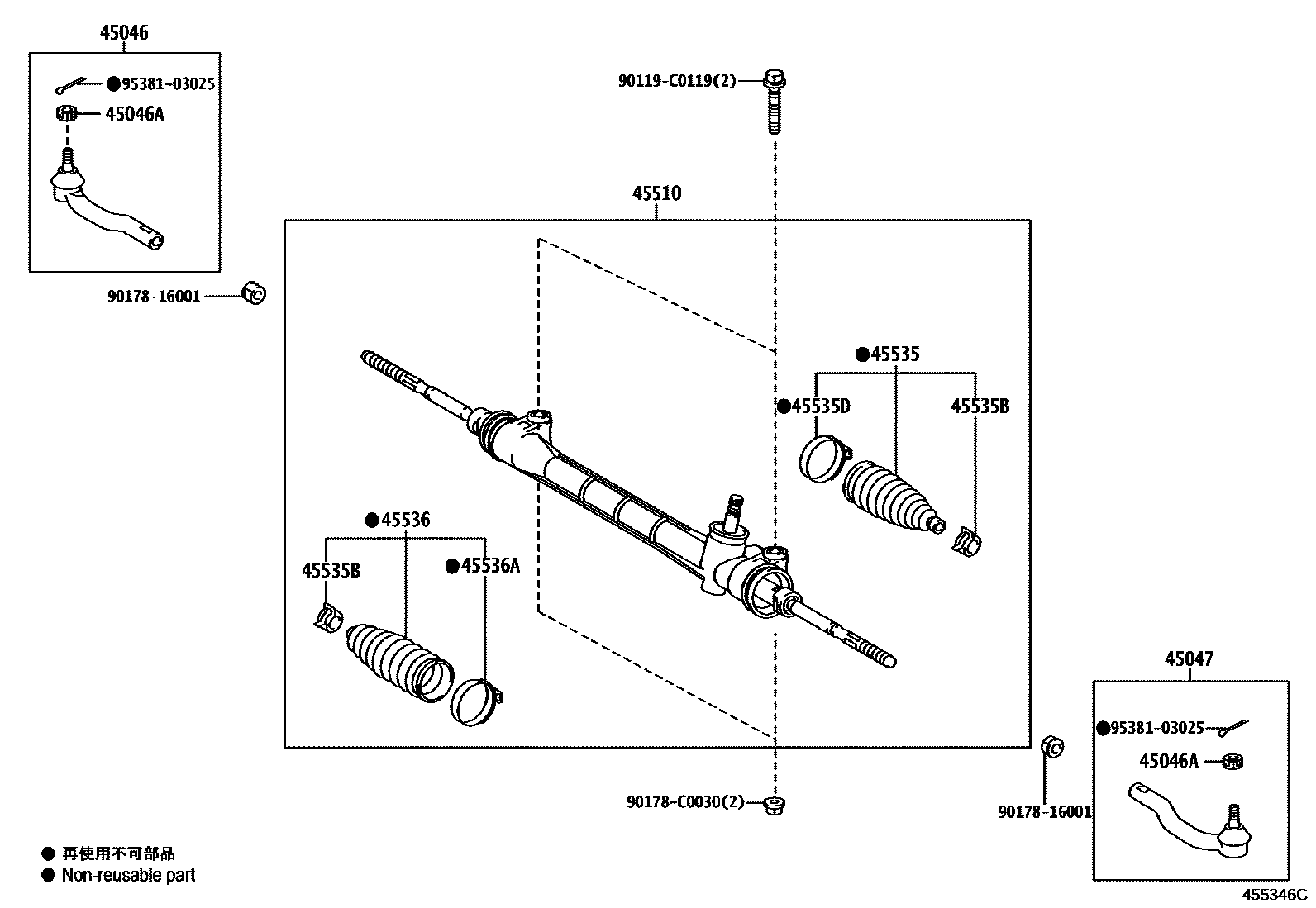

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09675iACA3#200903-201108

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-C0001×2iACA3#200903-201108

45047END SUB-ASSY, TIE ROD, LH

main45047-09335iACA3#200903-201108

45510GEAR ASSY, STEERING

main45510-0R030iACA3#200903-201108

sub45510-0R060

45535BOOT, STEERING RACK, NO.1

main45535-49025iACA3#200903-201108

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42010×2iACA3#200903-201108

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-42010iACA3#200903-201108

45536BOOT, STEERING RACK, NO.2

main45535-49025iACA3#200903-201108

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-42010iACA3#200903-201108

90119C0119

main90119-C0119

9017816001

main90178-16001

90178C0030

main90178-C0030

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section
