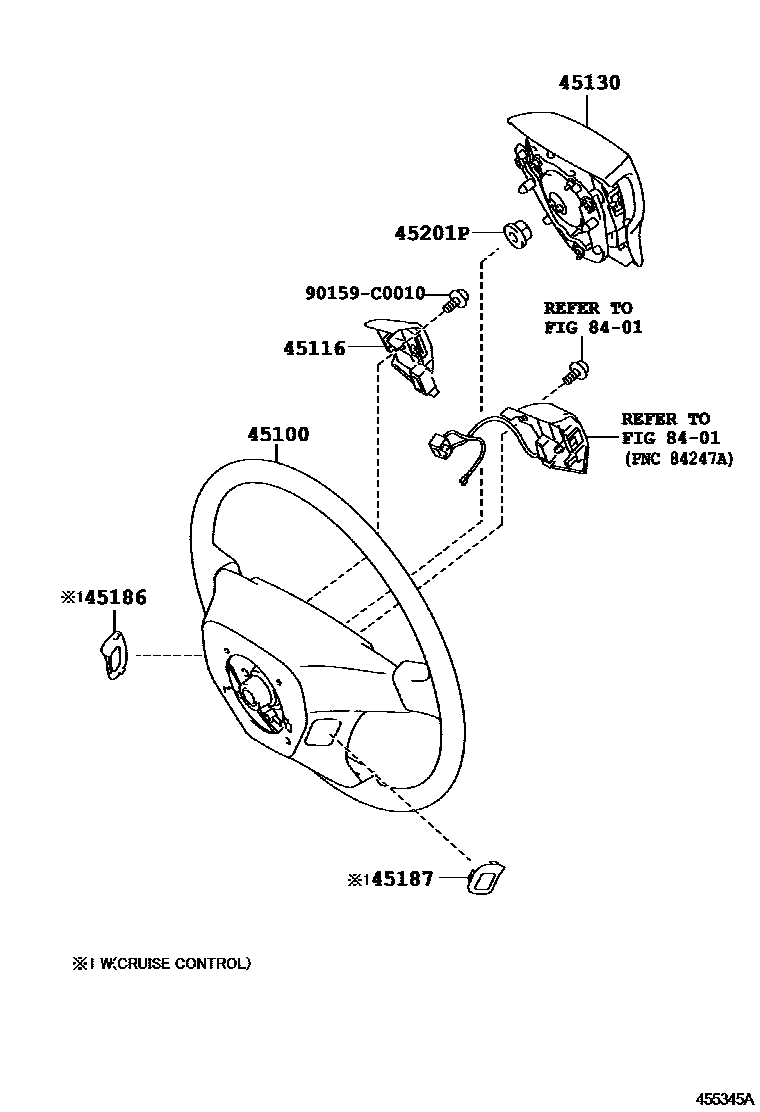

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0R020-B0supersedes 45100-0R010-B0i200903-201108

3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,DLX PACKAGE&VSC-WITH,DK.GRAY,TRIM1#

main45100-0R100-B0i201108-201307

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,DK.GRAY,TRIM1#,4#

main45100-0R110-B0i201108-201307

3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

main45100-0R010-B0i201108-201307

3-SPOKE,URETHANE,CRUISE CONTROL-WITH(ELECTRIC TYPE),DK.GRAY,TRIM1#,4#; 3-SPOKE,URETHANE,CRUISE CONTROL-WITH(ELECTRIC,W/VSC),DK.GRAY,TRIM1#,4#

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-0R010-B0i200903-201108

DK.GRAY,TRIM1#

main45116-0R020i201108-201307

STEERING WHEEL-LEATHER

45130BUTTON ASSY, HORN

main45130-0R010-B0i200903-201108

DK.GRAY,TRIM1#

main45130-0R030-B0i201108-201307

DK.GRAY,TRIM1#,4#; STEERING WHEEL-LEATHER,DK.GRAY,TRIM1#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-02150-B0i201108-201307

DK.GRAY,TRIM1#,4#; STEERING WHEEL-LEATHER&VSC-WITH,DK.GRAY,TRIM1#,4#

main45186-02140-B0i201108-201307

STEERING WHEEL-LEATHER,DK.GRAY,TRIM1#,4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-02050-B0i201108-201307

DK.GRAY,TRIM1#,4#; STEERING WHEEL-LEATHER&VSC-WITH,DK.GRAY,TRIM1#,4#; STEERING WHEEL-LEATHER,DK.GRAY,TRIM1#,4#

45201PNUT, STEERING WHEEL SET

main90178-C0025i200903-201108

8401SWITCH & RELAY & COMPUTER

90159C0010

8 parts on this diagram · 1 diagram in section
