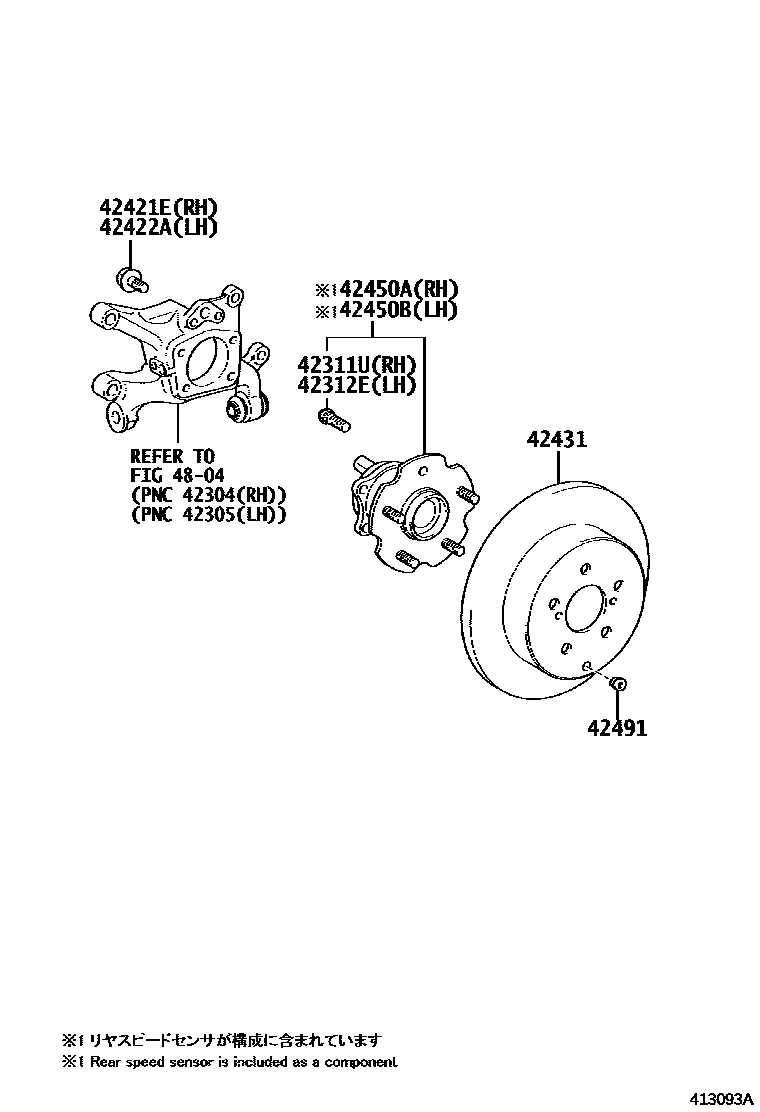

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iACA3#200903-201108

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iACA3#200903-201108

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iACA3#200903-201307

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iACA3#200903-201307

42431DISC, REAR

main42431-0R020iACA3#200903-201307

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0R020iACA37200903-201307

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0R020iACA37200903-201307

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47493-06010iACA3#200903-201307

4804

9 parts on this diagram · 3 diagrams in section
