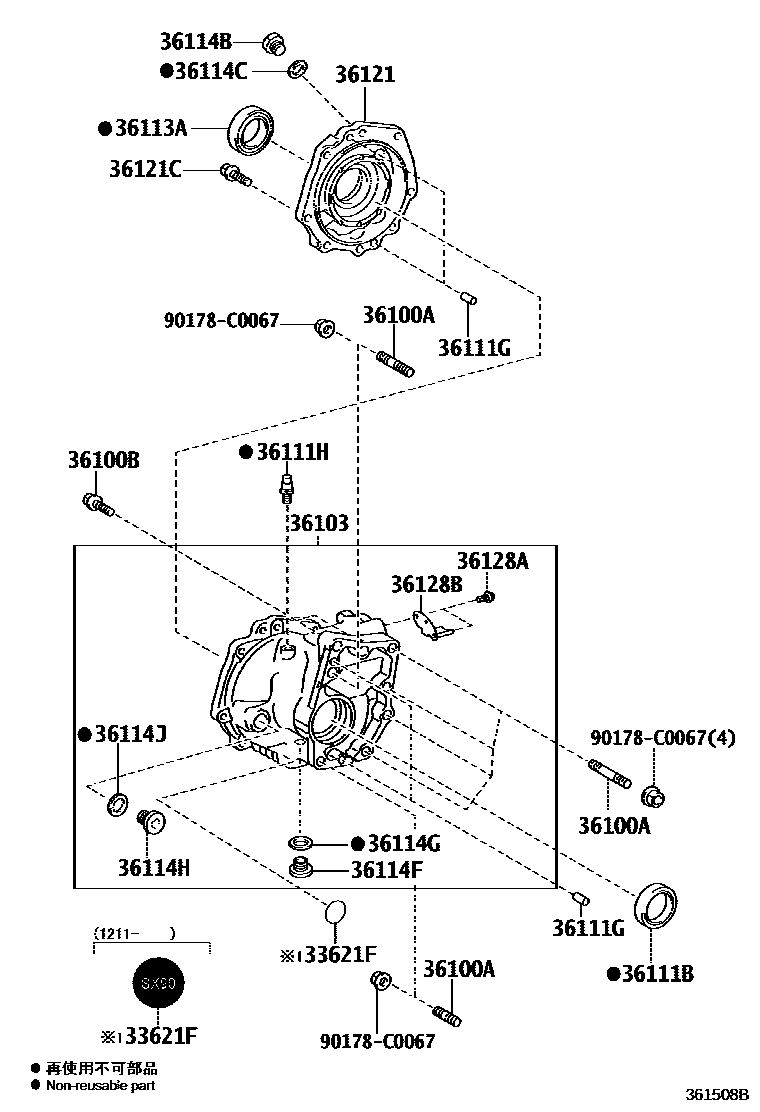

TRANSFER CASE & EXTENSION HOUSING

33621FLABEL, TRANSAXLE OIL INFORMATION

main33621-42040iACA32,33201211

sub33621-48020

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12028iACA33200903-201108

S=22 & 22,L=69

main90116-12034iACA32,33201108-201307

S=19 & 19,L=47

main90116-12041×4iACA33200903-201108

S=30 & 22,L=64

36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)

main90105-12298×2iACA33200903-201108

*12-1.25PX53-35

main90105-C0225×2iACA32,33201204-201307

*12-1.25PX53-35,(L)

36103CASE SUB-ASSY, TRANSFER

main36103-42010iACA33200903-201108

main36103-42040iACA32,33201211

sub36103-42041

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-55002iACA33200903-201108

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×4iACA33200903-201108

L=20,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iACA33200903-201108

36113ASEAL, OIL (FOR TRANSFER CASE RH)

main90311-35056iACA32,33201108

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iACA33200903-201108

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iACA33200903-201108

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iACA33200903-201108

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iACA33200903-201108

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-18023iACA33200903-201108

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main12157-10010iACA33200903-201108

36121COVER, TRANSFER CASE, NO.1

main36121-52020iACA33200903-201108

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030×8iACA33200903-201108

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614×2iACA33200903-201108

36128BDEFLECTOR, BREATHER OIL

main36128-42010iACA33200903-201108

90178C0067

main90178-C0067

19 parts on this diagram · 1 diagram in section
