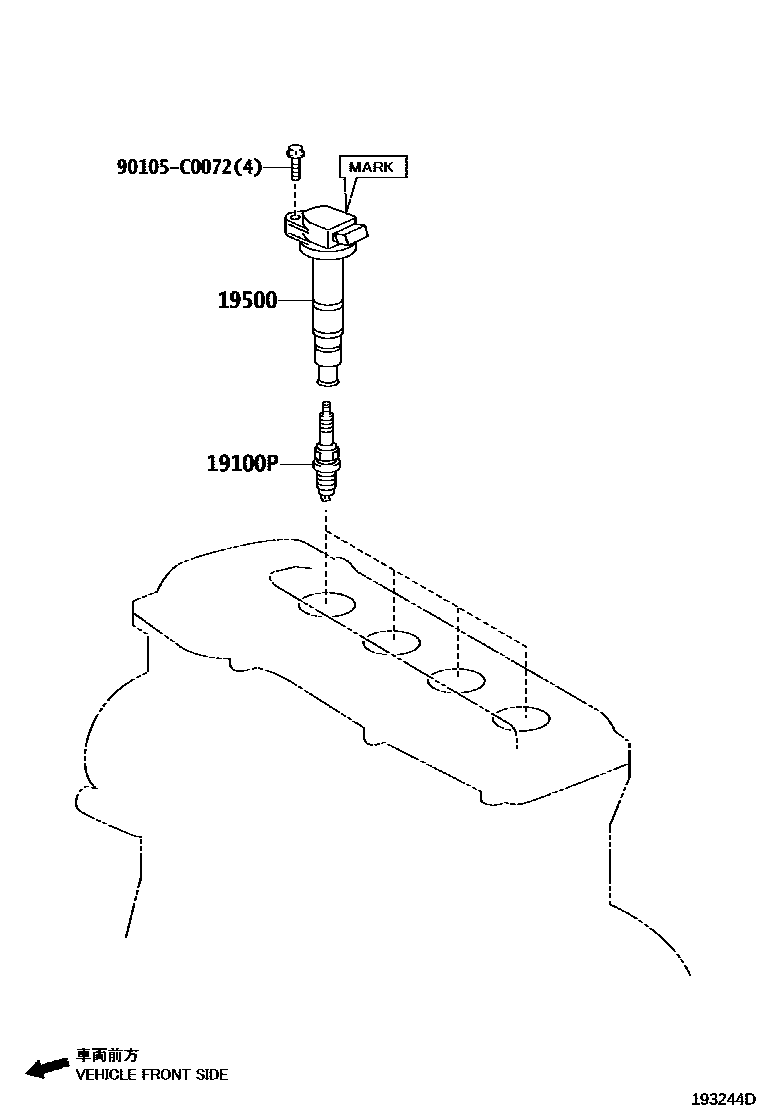

IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01240×4i1AZFE,2AZFE..ACA3#201108-201307

SK16R11,(J)

main90919-C1002×4i1AZFE,2AZFE..ACA3#200903-201108

SK16R11,(L)

19500COIL ASSY, IGNITION

main90919-02260×4i1AZFE,2AZFE..ACA3#201108

MARK 90919-02260

main90919-C2002×4i1AZFE,2AZFE..ACA3#200903-201012

MARK C200* OR T200*

main90919-C2006×4i1AZFE,2AZFE..ACA3#201012-201108

MARK C200* OR T200*

90105C0072

main90105-C0072

3 parts on this diagram · 1 diagram in section
