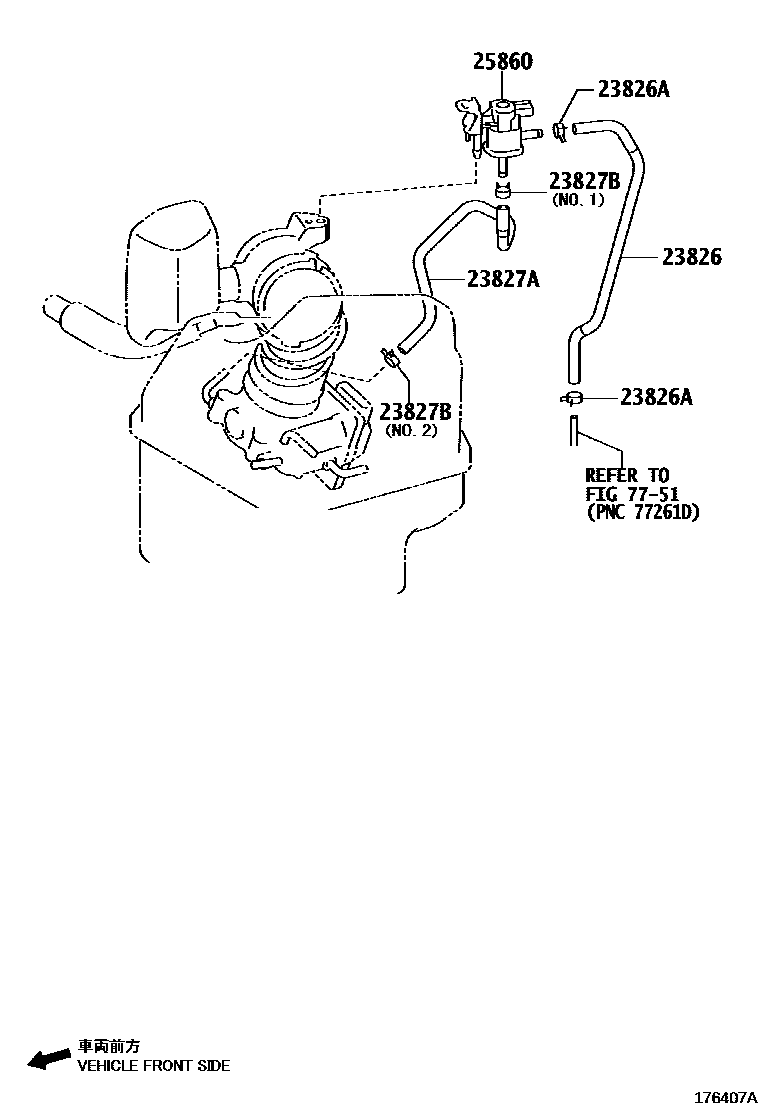

Toyota RAV4 (CHINA)660 — VACUUM PIPING

23826HOSE, FUEL VAPOR FEED, NO.1

90466-11003

23826-0H300

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

23827AHOSE, FUEL VAPOR FEED, NO.2

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

25860VALVE ASSY, VACUUM SWITCHING, NO.1

25860-0H140

7751FUEL TANK & TUBE

→ Go to FIG 77-51

6 parts on this diagram · 1 diagram in section

VACUUM PIPING for Toyota RAV4 (CHINA)660

This section contains 6 genuine Toyota parts for the VACUUM PIPING system of the Toyota RAV4 (CHINA)660. Key components include: HOSE, FUEL VAPOR FEED, NO.1, CLIP(FOR FUEL VAPOR FEED HOSE, NO.1), HOSE, FUEL VAPOR FEED, NO.2, CLIP(FOR FUEL VAPOR FEED HOSE, NO.2), VALVE ASSY, VACUUM SWITCHING, NO.1.
