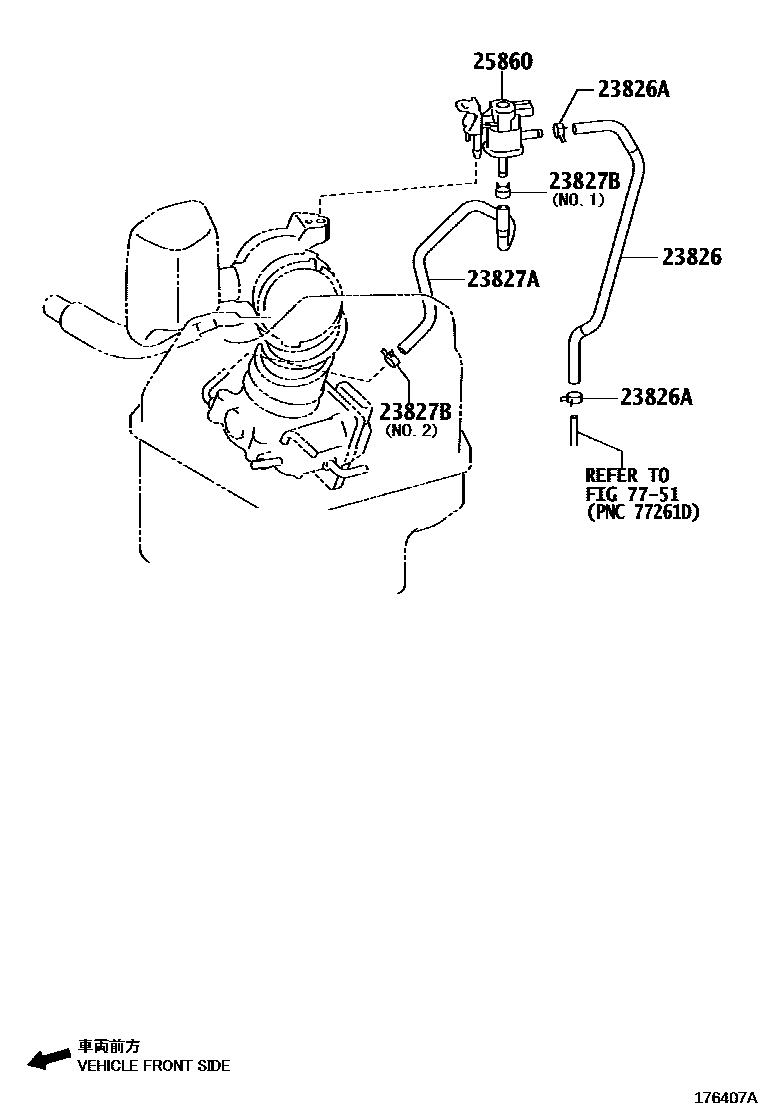

VACUUM PIPING

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0H300i1AZFE,2AZFE..ACA3#200903-201108

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i1AZFE,2AZFE..ACA3#200903-201108

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0H120i1AZFE,2AZFE..ACA3#200903-201108

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-11003i1AZFE,2AZFE..ACA3#200903-201108

NO.1

main96132-41000i1AZFE,2AZFE..ACA3#201108

NO.2

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0H140i1AZFE,2AZFE..ACA3#201108

7751

6 parts on this diagram · 1 diagram in section
