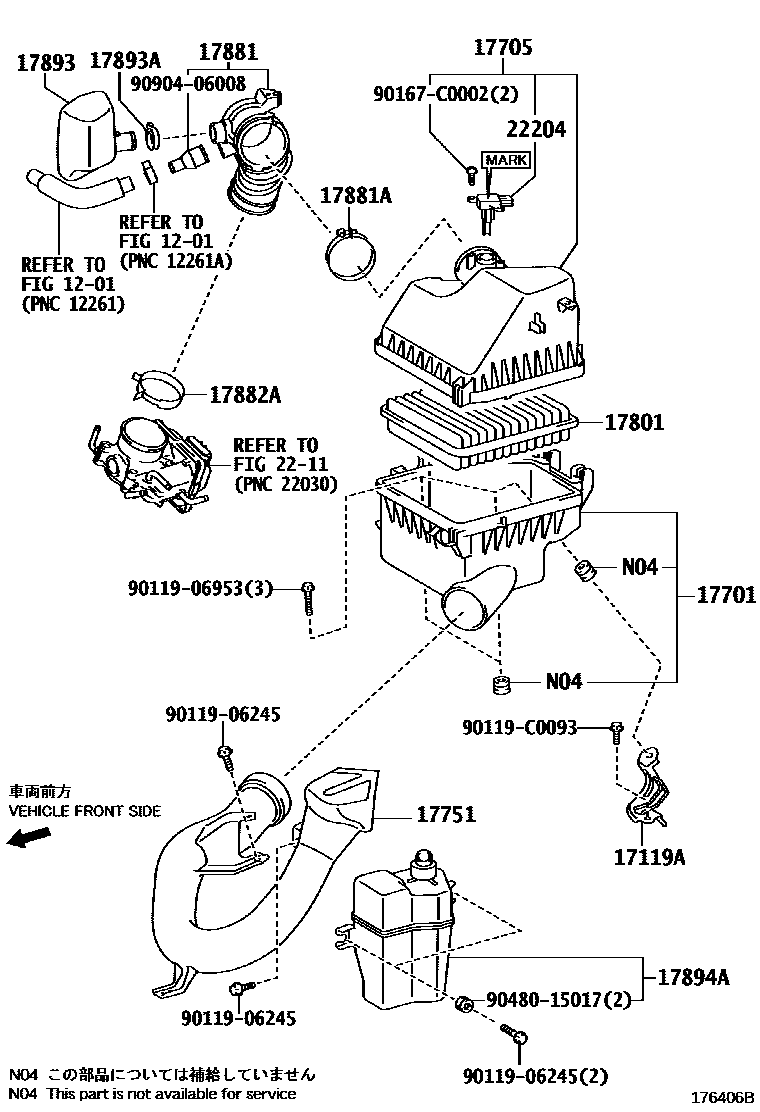

AIR CLEANER

1201

17119ABRACKET, AIR CLEANER

main17119-0H090i1AZFE,2AZFE..ACA3#201108

17701CASE SUB-ASSY, AIR CLEANER

main17701-0H150i1AZFE,2AZFE..ACA3#200903-201108

17705CAP SUB-ASSY, AIR CLEANER

main17705-0H180i1AZFE,2AZFE..ACA3#200903-201108

17751INLET, AIR CLEANER, NO.1

main17751-0H090i1AZFE,2AZFE..ACA3#200903-201108

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0H070i1AZFE,2AZFE..ACA3#200903-201108

17881HOSE, AIR CLEANER, NO.1

main17881-0H150i1AZFE,2AZFE..ACA3#200903-201108

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850i1AZFE,2AZFE..ACA3#200903-201108

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i1AZFE,2AZFE..ACA3#201108-201301

main90466-C0019i1AZFE,2AZFE..ACA3#201301

(L)

17893RESONATOR, INTAKE AIR

main17893-0H100i1AZFE,2AZFE..ACA3#200903-201108

17893ACLAMP, HOSE

main96111-10380i1AZFE,2AZFE..ACA3#200903-201108

17894ARESONATOR, INTAKE AIR, NO.2

main17894-0H120i1AZFE,2AZFE..ACA3#201108

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0P010i1AZFE,2AZFE..ACA3#201104-201108

MARK 22204-0P010

main22204-0T010i1AZFE,2AZFE..ACA3#200903-201108

MARK 22204-0T010

main22204-31020i1AZFE,2AZFE..ACA3#201104-201108

MARK 22204-31020

9011906245

main90119-06245

9011906953

main90119-06953

90119C0093

main90119-C0093

90167C0002

main90167-C0002

9048015017

main90480-15017

9090406008

main90904-06008

20 parts on this diagram · 1 diagram in section
