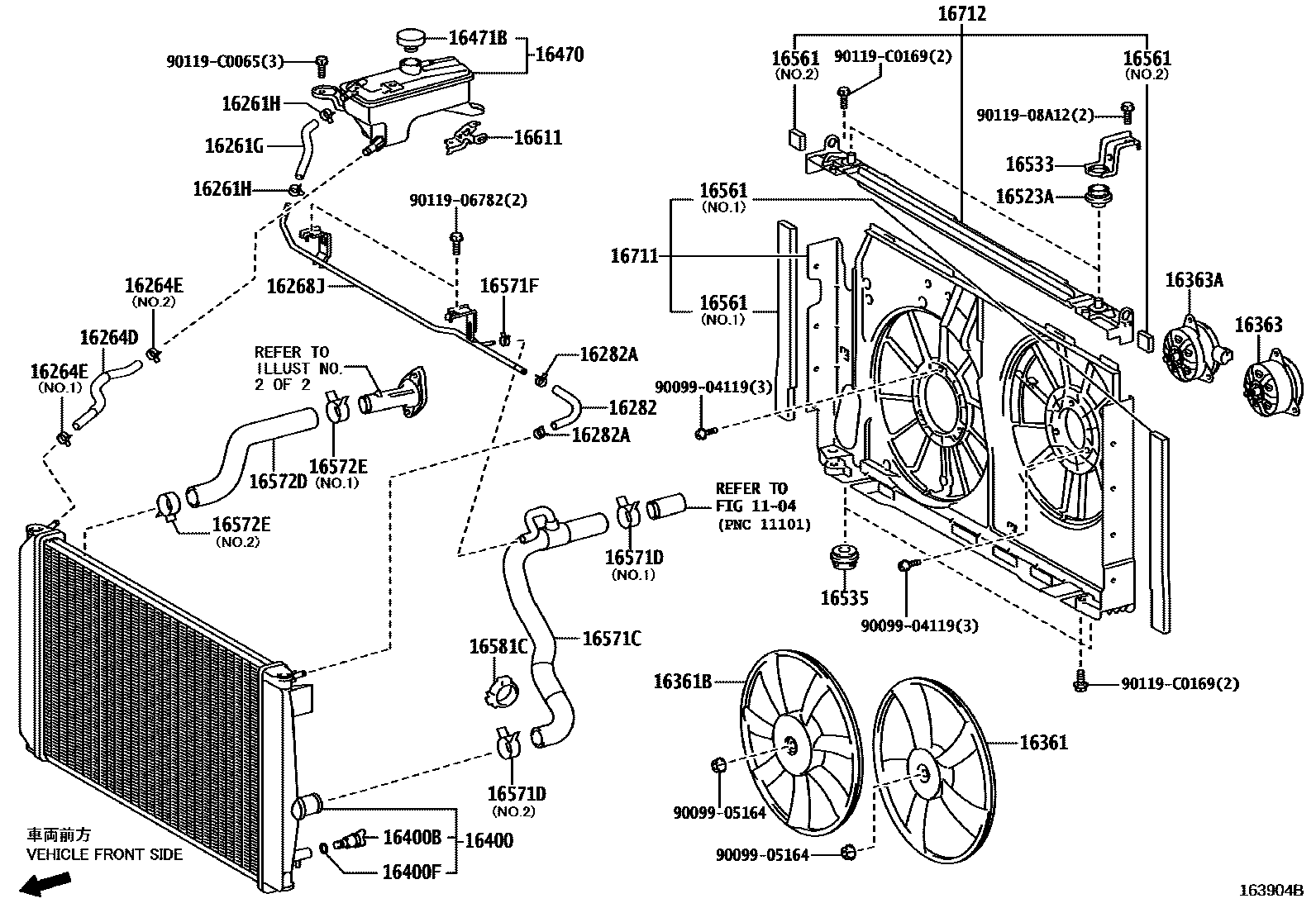

RADIATOR & WATER OUTLET
1104
16261HOSE, WATER BY-PASS
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
(L)
16264HOSE, WATER BY-PASS, NO.2
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
(L),NO.1
(L),NO.2
NO.1
(J),NO.2
16268PIPE, WATER BY-PASS, NO.1
16268JPIPE, WATER BY-PASS, NO.5
16282HOSE, WATER BY-PASS, NO.5
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
(L)
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
sub16363-28170
16363AMOTOR, COOLING FAN, NO.2
sub16363-0T260
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16471BCAP, RESERVE TANK
sub16475-28140
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
NO.1
NO.2
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
(L),NO.1
(L),NO.2
NO.1
NO.2
NO.1
NO.2
16571FCLAMP OR CLIP(FOR WATER HOSE)
(L)
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
(L),NO.1
(L),NO.2
NO.1
NO.2
NO.1
NO.2
16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)
16611BRACKET, RADIATOR RESERVE TANK
sub16611-36010
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
9009904119
main90099-04119
9009905164
main90099-05164
9011906782
main90119-06782
9011908A12
main90119-08A12
90119C0065
main90119-C0065
90119C0169
main90119-C0169
39 parts on this diagram · 2 diagrams in section
