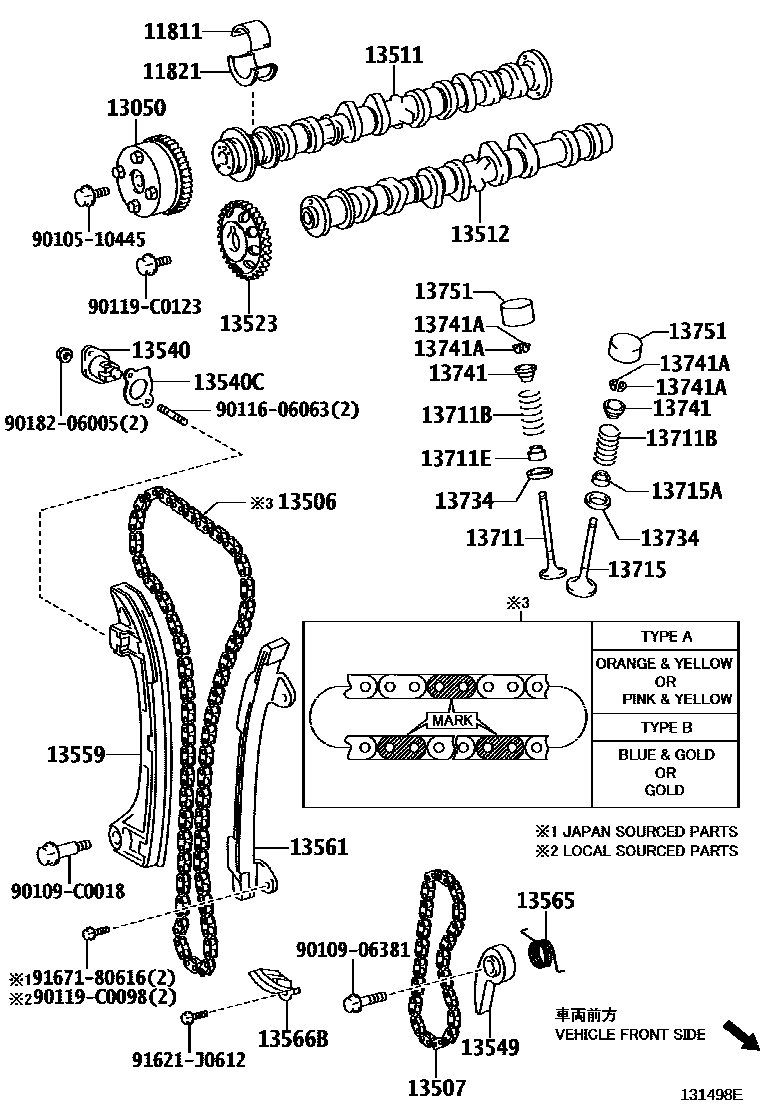

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
MARK 1
MARK 2
MARK 3
11821BEARING, CAMSHAFT, NO.2
MARK 1
MARK 2
MARK 3
13050GEAR ASSY, CAMSHAFT TIMING
(J)
13506CHAIN SUB-ASSY
(L),T/P A:REF.ILLUST
(J),T/P A:REF.ILLUST
TYPE B:REFER ILLUST.
13507CHAIN SUB-ASSY, NO.2
(L)
(J)
13511CAMSHAFT
(J)
(J)
13512CAMSHAFT, NO.2
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13540CGASKET(FOR CHAIN TENSIONER)
(L)
(J)
13549PLATE, CHAIN TENSIONER
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(J)
13565SPRING, CHAIN DAMPER
(L)
(J)
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
(L)
(J)
13711BSPRING, COMPRESSION(FOR INNER)
(J)
(L)
13711ESEAL, INTAKE VALVE STEM OIL
(J)
(L)
13715VALVE, EXHAUST
(L)
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
(J)
(L)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.06
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.70
T=5.72
T=5.74
9010510445
main90105-10445
9010906381
main90109-06381
90109C0018
main90109-C0018
9011606063
main90116-06063
90119C0098
main90119-C0098
90119C0123
main90119-C0123
9018206005
main90182-06005
91621J0612
main91621-J0612
9167180616
main91671-80616
33 parts on this diagram · 1 diagram in section
