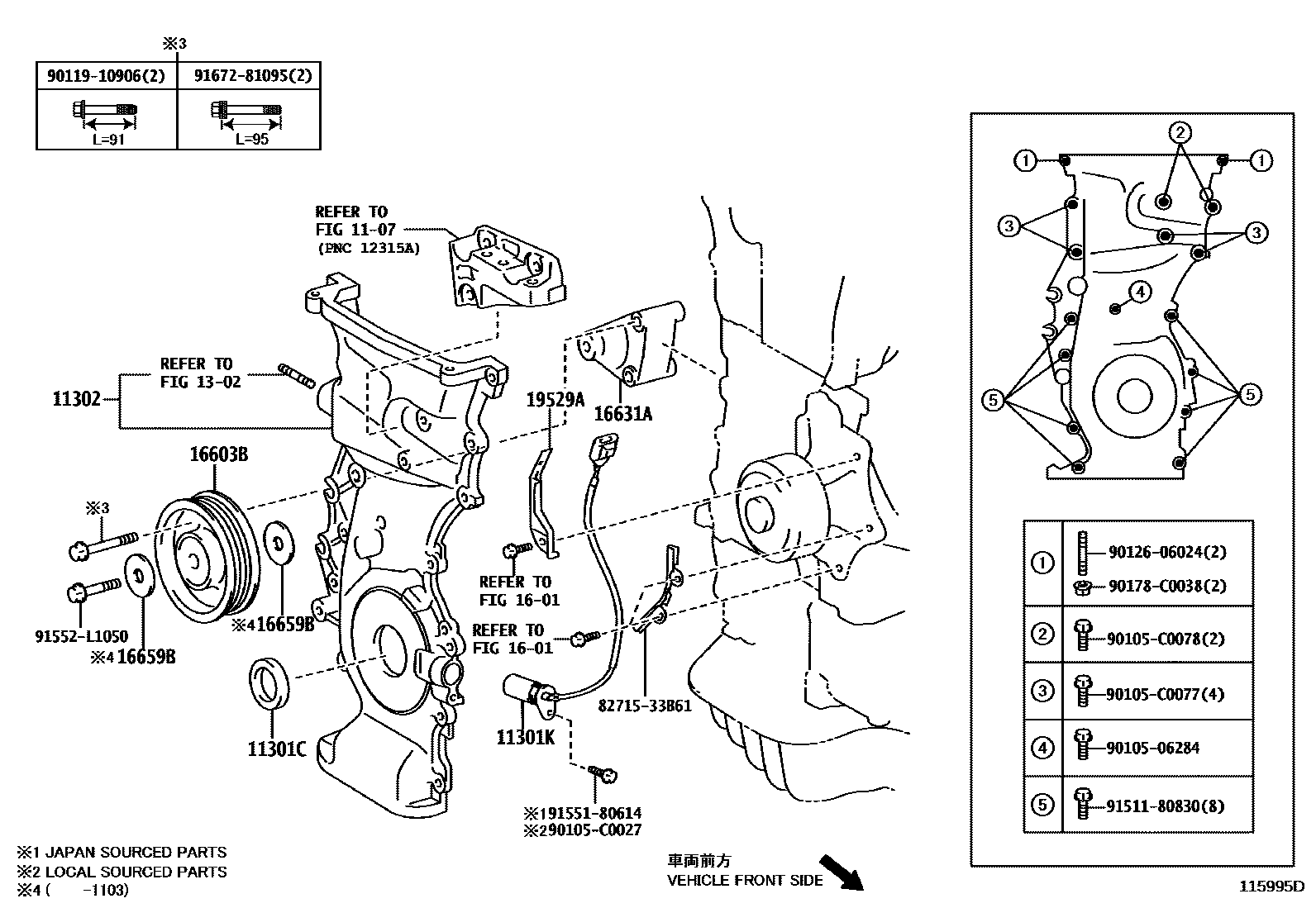

TIMING GEAR COVER & REAR END PLATE

1107

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-C0025i1AZFE,2AZFE..ACA3#201204

main90311-T0024i1AZFE,2AZFE..ACA3#201108-201204

11301KSENSOR, CRANK POSITION

main90919-05067i1AZFE,2AZFE..ACA3#201108

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0H070i1AZFE,2AZFE..ACA3#200903-201108

(L)

main11310-28090i1AZFE,2AZFE..ACA3#200903-201108

(J)

1302

1601

16603BPULLEY SUB-ASSY, IDLER

main16603-28020i1AZFE,2AZFE..ACA3#200903-201103

main16603-28050i1AZFE,2AZFE..ACA3#201103-201108

16631ABRACKET, IDLER PULLEY

main16631-28031i1AZFE,2AZFE..ACA3#200903-201108

16659BPLATE, IDLER PULLEY COVER, NO.2

main16659-31011×2i1AZFE,2AZFE..ACA3#200903-201103

19529ACLAMP

main19529-28050i1AZFE,2AZFE..ACA3#200903-201108

8271533B61BRACKET,WIRING HARNESS CLAMP

main82715-33B61

9010506284

main90105-06284

90105C0027

main90105-C0027

90105C0077

main90105-C0077

90105C0078

main90105-C0078

9011910906

main90119-10906

9012606024

main90126-06024

90178C0038

main90178-C0038

9151180830

main91511-80830

9155180614

main91551-80614

91552L1050

main91552-L1050

9167281095

main91672-81095

22 parts on this diagram · 1 diagram in section
