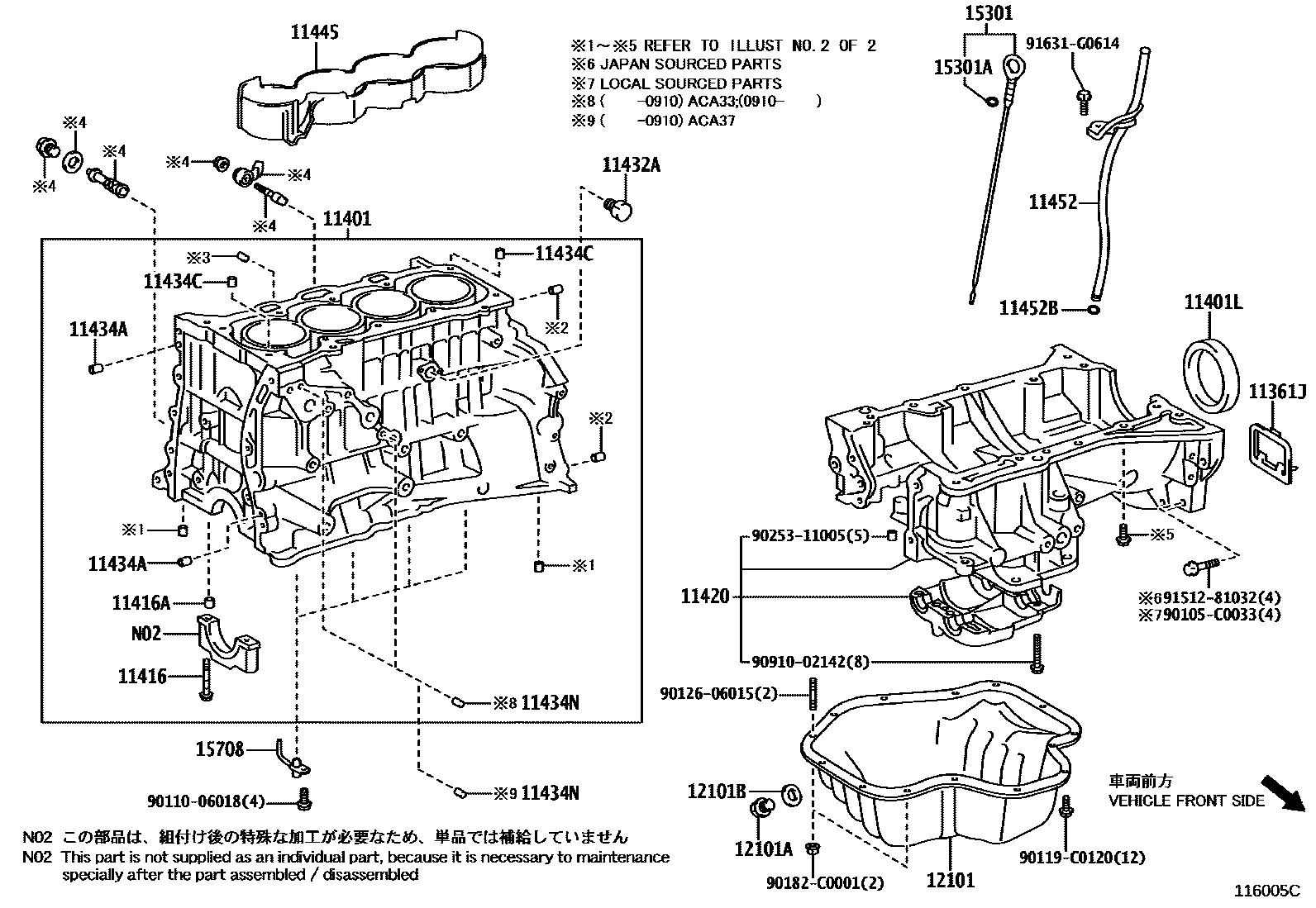

CYLINDER BLOCK

0001 1 0002 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-28010i1AZFE,2AZFE..ACA3#200903-201108

11401BLOCK SUB-ASSY, CYLINDER

main11410-09221i2AZFE..ACA33200903-201108

sub11410-09222

main11410-09260i1AZFE..ACA37200903-200910

main11410-09261i1AZFE..ACA37200910-201108

sub11410-09262

11401LSEAL, ENGINE REAR OIL

main90311-C0001i1AZFE,2AZFE..ACA3#200903-201108

main90311-C0024i1AZFE,2AZFE..ACA3#201204

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02124×10i1AZFE,2AZFE..ACA3#200903-201108

sub90910-02206

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017×10i1AZFE,2AZFE..ACA3#200903-201108

11420CRANKCASE ASSY, STIFFENING

main11420-0H050i1AZFE,2AZFE..ACA3#200903-201010

(L)

main11420-0H051i1AZFE,2AZFE..ACA3#201010-201108

(L)

main11420-28020i1AZFE,2AZFE..ACA3#200903-201010

(J)

main11420-28021i1AZFE,2AZFE..ACA3#201010-201108

(J)

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i1AZFE,2AZFE..ACA3#200903-201108

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120×2i1AZFE,2AZFE..ACA3#200903-201108

L=18,OD=8

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-14003×2i1AZFE,2AZFE..ACA3#200903-201108

L=12,OD=14

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003×2i1AZFE,2AZFE..ACA3#201108-201307

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0H020i1AZFE,2AZFE..ACA3#200903-201108

11452GUIDE, OIL LEVEL GAGE

main11452-28060i1AZFE,2AZFE..ACA3#200903-201108

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1AZFE,2AZFE..ACA3#200903-201108

12101PAN SUB-ASSY, OIL

main12101-0H060i1AZFE,2AZFE..ACA3#200903-201108

(L)

main12101-28060i1AZFE,2AZFE..ACA3#200903-201108

(J)

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1AZFE,2AZFE..ACA3#201108

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1AZFE,2AZFE..ACA3#200903-201108

(J)

main90430-C0005i1AZFE,2AZFE..ACA3#200903-201108

(L)

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0H050i1AZFE,2AZFE..ACA3#201108-201301

main15301-0H051i1AZFE,2AZFE..ACA3#201301

main15301-28030i1AZFE,2AZFE..ACA3#200903-201108

(J)

sub15301-28031

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1AZFE,2AZFE..ACA3#200903-201108

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-28011×4i2AZFE..ACA33200903-201108

90105C0033

main90105-C0033

9011006018

main90110-06018

90119C0120

main90119-C0120

9012606015

main90126-06015

90182C0001

main90182-C0001

9025311005

main90253-11005

9091002142

main90910-02142

9151281032

main91512-81032

91631G0614

main91631-G0614

28 parts on this diagram · 2 diagrams in section
