ENGINE OVERHAUL GASKET KIT

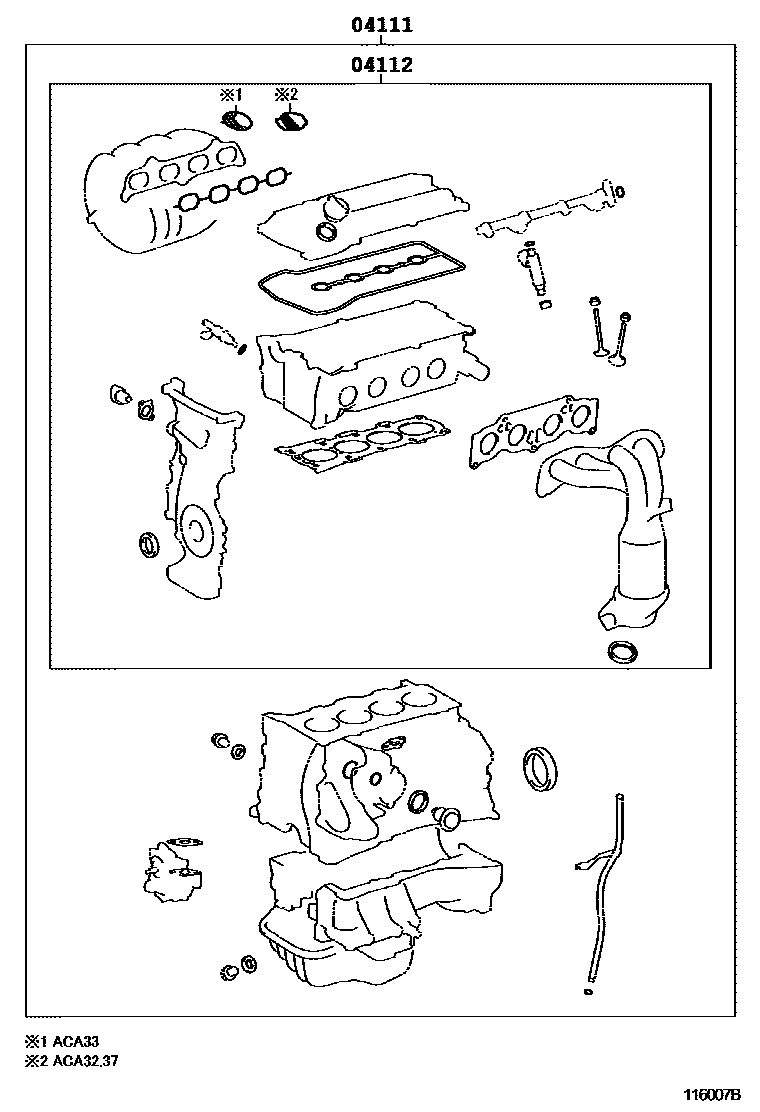

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0H420i200903-200904

main04111-0H421i200904-201108

main04111-0H422i201204-201208

main04111-0H423i201208

main04111-0H430i200903-200904

main04111-0H431i201108-201204

main04111-0H432i201204-201208

main04111-0H433i201208

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0H380i200903-200904

main04112-0H381i200904-201108

main04112-0H382i201204-201208

main04112-0H383i201208

main04112-0H390i200903-200904

main04112-0H391i201108-201204

main04112-0H392i201204-201208

main04112-0H393i201208

2 parts on this diagram · 1 diagram in section
