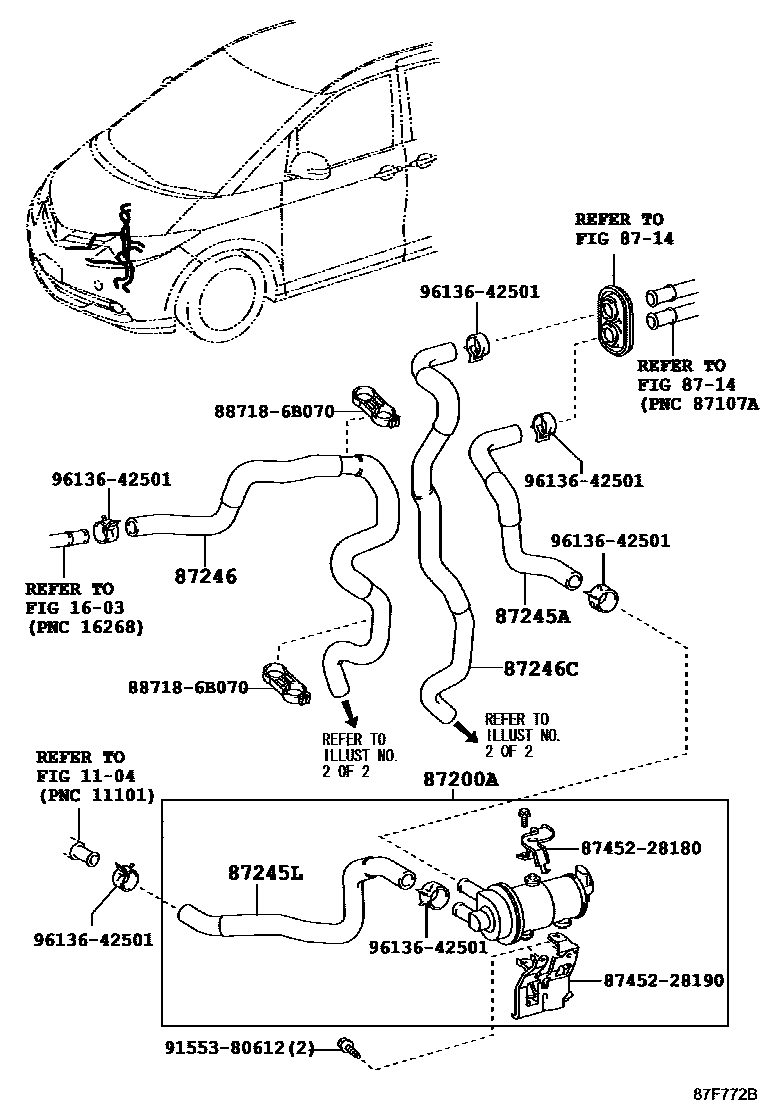

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1REAR

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87200APUMP ASSY, WATER(FOR HEATER)

main87200-28140iAHR20201304

87245AHOSE, HEATER WATER, INLET A

main87245-28C50iAHR20201304-201605

87245LHOSE, HEATER WATER, L

main87245-28C40iAHR20201304

87246HOSE, HEATER WATER, OUTLET

main87245-28C30iAHR20201304-201605

87246CHOSE, HEATER WATER, OUTLET C

main87245-28C20iAHR20201304

8745228180BRACKET, FUEL MAGNET VALVE

main87452-28180

8745228190BRACKET, FUEL MAGNET VALVE

main87452-28190

887186B070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-6B070

9155380612

main91553-80612

9613642501

main96136-42501

13 parts on this diagram · 2 diagrams in section
