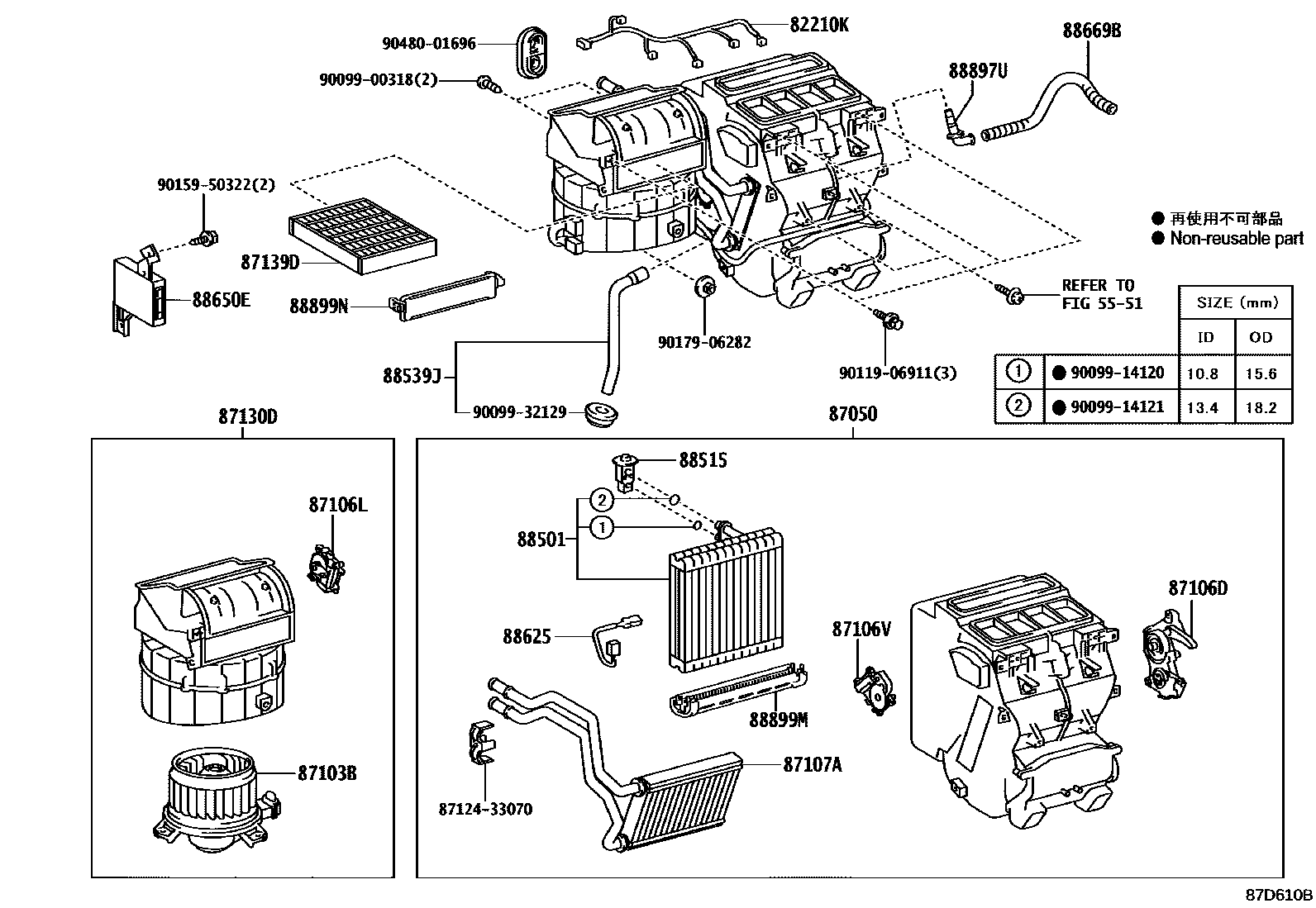

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1REAR

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

82210KHARNESS ASSY, AIR CONDITIONER

main82212-28030iAHR20201304-201605

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28682iAHR20201304-201605

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-33100iAHR20201304-201605

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-28191iAHR20201304-201605

87106LSERVO SUB-ASSY, DAMPER

main87106-33280iAHR20201304-201605

87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)

main87106-33260iAHR20201304-201605

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33120iAHR20201304-201605

87130DBLOWER ASSY

main87130-28540iAHR20201304-201605

87139DELEMENT, AIR REFINER

main87139-50100iAHR20201304-201605

*DPF

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48301iAHR20201304-201605

88515VALVE, COOLER EXPANSION

main88515-28240iAHR20201304-201605

88539JHOSE, DRAIN COOLER

main88539-28280iAHR20201304

88625THERMISTOR, COOLER, NO.1

main88625-33190iAHR20201304-201605

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-28B71iAHR20201304-201308

main88650-28B73iAHR20201308-201409

main88650-28B74iAHR20201409

88669BHOSE, COOLER AIR

main88669-33090iAHR20201304

88897UPIPE, ASPIRATOR

main88897-33030iAHR20201304

88899MPLATE, COVER(FOR AIR FILTER)

main88899-33050iAHR20201304-201605

88899NPLATE, COVER

main88899-33040iAHR20201304

8712433070CLAMP, HEATER

main87124-33070

9009900318

main90099-00318

9009914120

main90099-14120

9009914121

main90099-14121

9009932129

main90099-32129

9011906911

main90119-06911

9015950322

main90159-50322

9017906282

main90179-06282

9048001696

main90480-01696

28 parts on this diagram · 2 diagrams in section
