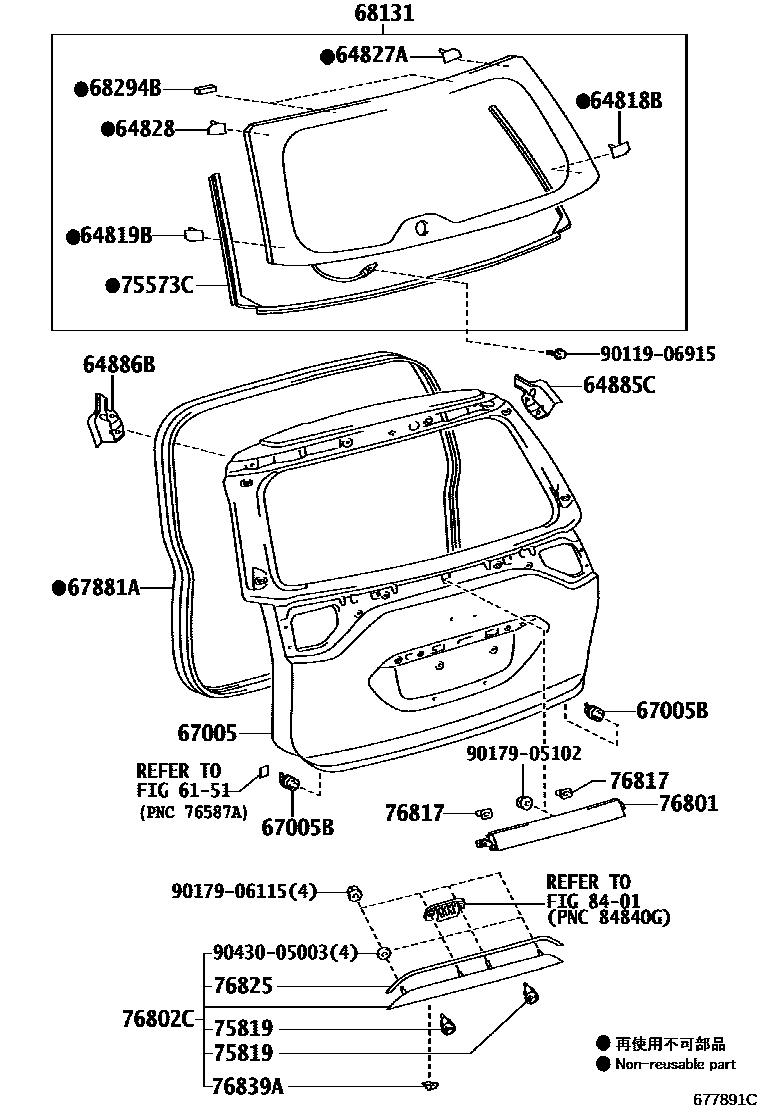

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

6151

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-28020iAHR20201304

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-28020iAHR20201304

64827ACLIP, BACK WINDOW GLASS, RH

main64827-28040iAHR20201304

64828CLIP, BACK WINDOW GLASS, LH

main64828-28030iAHR20201304

64885CCHANNEL, BACK DOOR GLASS, RH

main64885-28060iAHR20201304

64886BCHANNEL, BACK DOOR GLASS, LH

main64886-28060iAHR20201304

67005PANEL SUB-ASSY, BACK DOOR

main67005-28C90iAHR20201304

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-10042iAHR20201304

67881AWEATHERSTRIP, BACK DOOR

main67881-28120iAHR20201304

68131GLASS, BACK DOOR

main68105-28680iAHR20201304

*UVCEHT,T=3.1,GREEN

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-26030iAHR20201304

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-28030iAHR20201304

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010iAHR20201304

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-28401iAHR20201304

76802CGARNISH SUB-ASSY, BACK DOOR, OUTSIDE NO.2

main76802-28070iAHR20201304-201605

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040iAHR20201304

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-28080iAHR20201304

76839ACOVER, BACK DOOR GARNISH

main76839-28030iAHR20201304

8401

9011906915

main90119-06915

9017905102

main90179-05102

9017906115

main90179-06115

9043005003

main90430-05003

24 parts on this diagram · 2 diagrams in section
