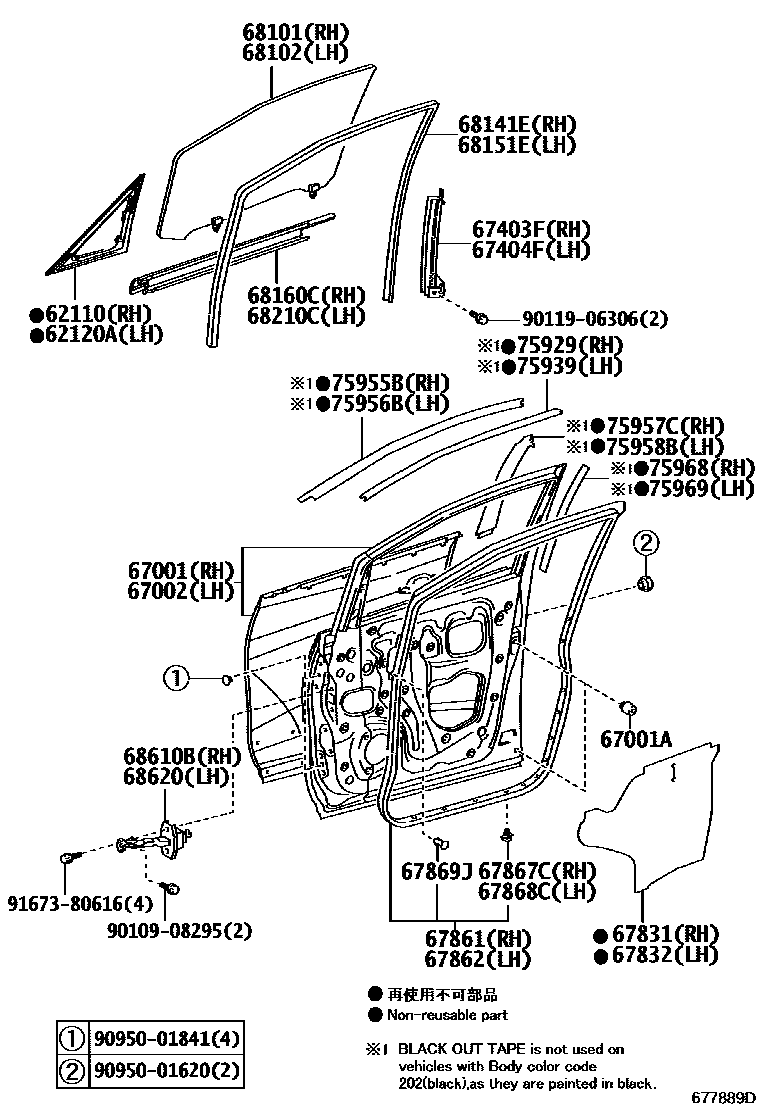

FRONT DOOR PANEL & GLASS
62110WINDOW ASSY, FRONT SIDE FIX, RH
*UVCT,T=3.5,GREEN
62120AWINDOW ASSY, FRONT SIDE FIX, LH
*UVCT,T=3.5,GREEN
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869JCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCT,T=4.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCT,T=4.0,GREEN
68141ERUN, FRONT DOOR GLASS, RH
PNC 85710D=TYPE A
PNC 85710D=TYPE B
68151ERUN, FRONT DOOR GLASS, LH
PNC 85720C=TYPE A
PNC 85720C=TYPE B
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH
75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH
75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH
75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH
75957CTAPE, BLACK OUT FRONT DOOR, OUTER REAR RH
75958BTAPE, BLACK OUT FRONT DOOR, OUTER REAR LH
75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH
75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH
9010908295
main90109-08295
9011906306
main90119-06306
9095001620
main90950-01620
9095001841
main90950-01841
9167380616
main91673-80616
35 parts on this diagram · 2 diagrams in section
