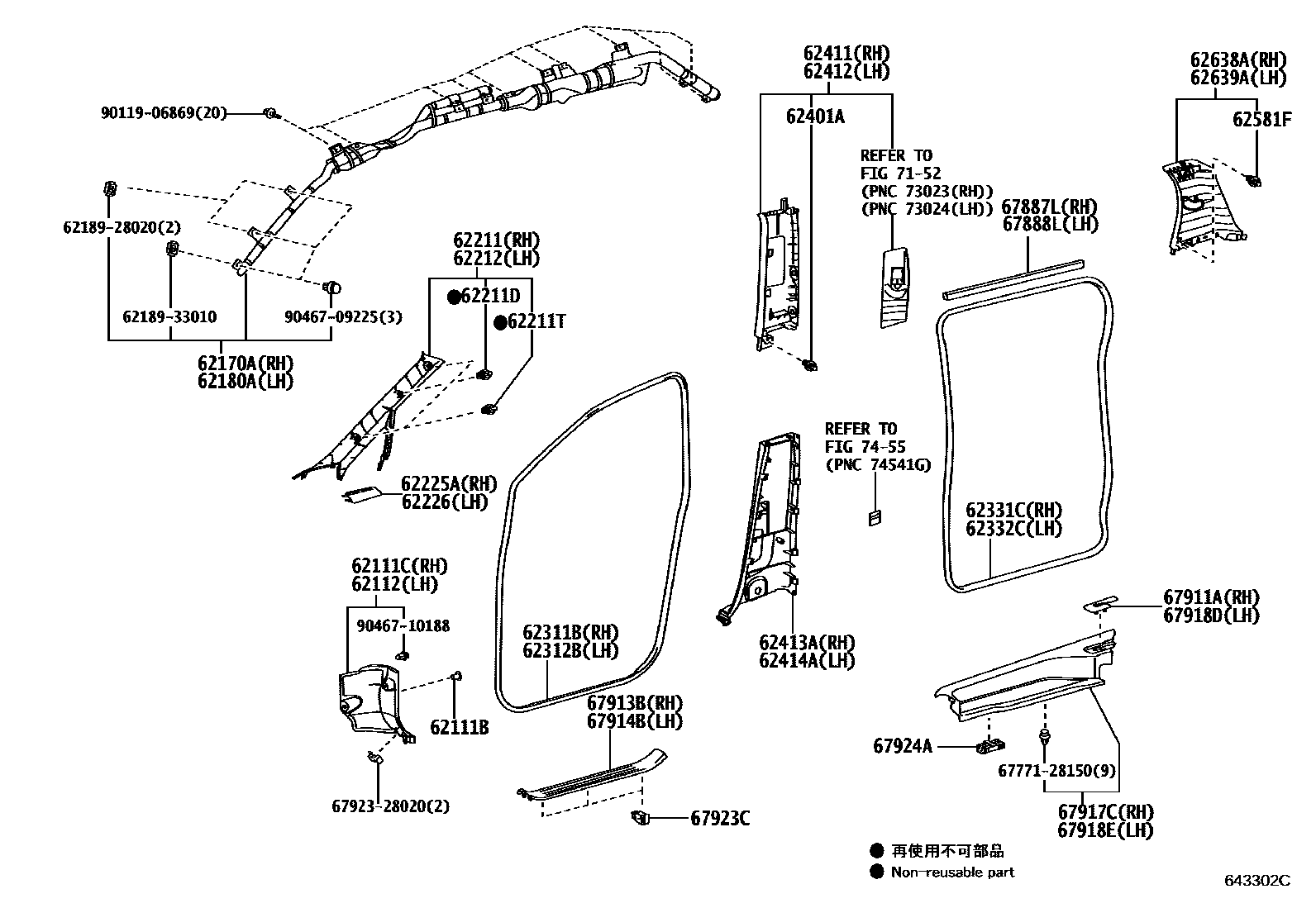

INSIDE TRIM BOARD
62111CBOARD, COWL SIDE TRIM, RH
SHELL,TRIM0#
62112BOARD, COWL SIDE TRIM, LH
SHELL,TRIM0#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
SHELL,TRIM0#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
SHELL,TRIM0#
62225AGARNISH, FRONT PILLAR, LOWER RH
SHELL,TRIM0#
62226GARNISH, FRONT PILLAR, LOWER LH
SHELL,TRIM0#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
SHELL,TRIM0#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
SHELL,TRIM0#
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
SHELL,TRIM0#
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
SHELL,TRIM0#
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411GARNISH, CENTER PILLAR, RH
SHELL,TRIM0#
62412GARNISH, CENTER PILLAR, LH
SHELL,TRIM0#
62413AGARNISH, CENTER PILLAR, LOWER RH
SHELL,TRIM0#
62414AGARNISH, CENTER PILLAR, LOWER LH
62581FCLIP (FOR QUARTER PILLAR GARNISH)
62638AGARNISH, QUARTER PILLAR, RH
SHELL,TRIM0#
62639AGARNISH, QUARTER PILLAR, LH
SHELL,TRIM0#
67887LWEATHERSTRIP, SLIDE DOOR, NO.2 RH
67888LWEATHERSTRIP, REAR DOOR, NO.2 LH
67911APLATE, REAR DOOR SCUFF, RH
SHELL,TRIM0#
67913BPLATE, FRONT DOOR SCUFF, RH
SHELL,TRIM0#
67914BPLATE, FRONT DOOR SCUFF, LH
SHELL,TRIM0#
67917CPLATE, REAR DOOR SCUFF, RH
SHELL,TRIM0#
67918DPLATE, REAR DOOR SCUFF, LH
SHELL,TRIM0#
67918EPLATE, REAR DOOR SCUFF, LH
SHELL,TRIM0#
67923CCLAMP, DOOR SCUFF PLATE, NO.1
67924ACLAMP, DOOR SCUFF PLATE, NO.2
7152
7455
6218928020PLATE, REAR FLOOR SIDE BOARD SET, REAR LH
main62189-28020
6218933010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH
main62189-33010
6777128150WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-28150
6792328020CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-28020
9011906869
main90119-06869
9046709225
main90467-09225
9046710188
main90467-10188
42 parts on this diagram · 2 diagrams in section
